12' x 1/4" CINCINNATI-INC "1812" MECHANICAL POWER SQUARING SHEAR - Front Operated Power Back Gauge - Squaring Arm - Front Support - Hydraulic Hold Downs
| Max Gauge | 14 gauge | 14 gauge |
| Length of Blade | 148" | 3,759.2 mm |
| Hyd/Mech | 'Mech' | 'Mech' |
| Power | 10 hp | 7.5 kW |
| SPM | 60 strokes/min. | 60 strokes/min. |
| Dimensions | 15'2'' x 6' | 15'2'' x 6' |
| Weight | 22000 | 22000 |

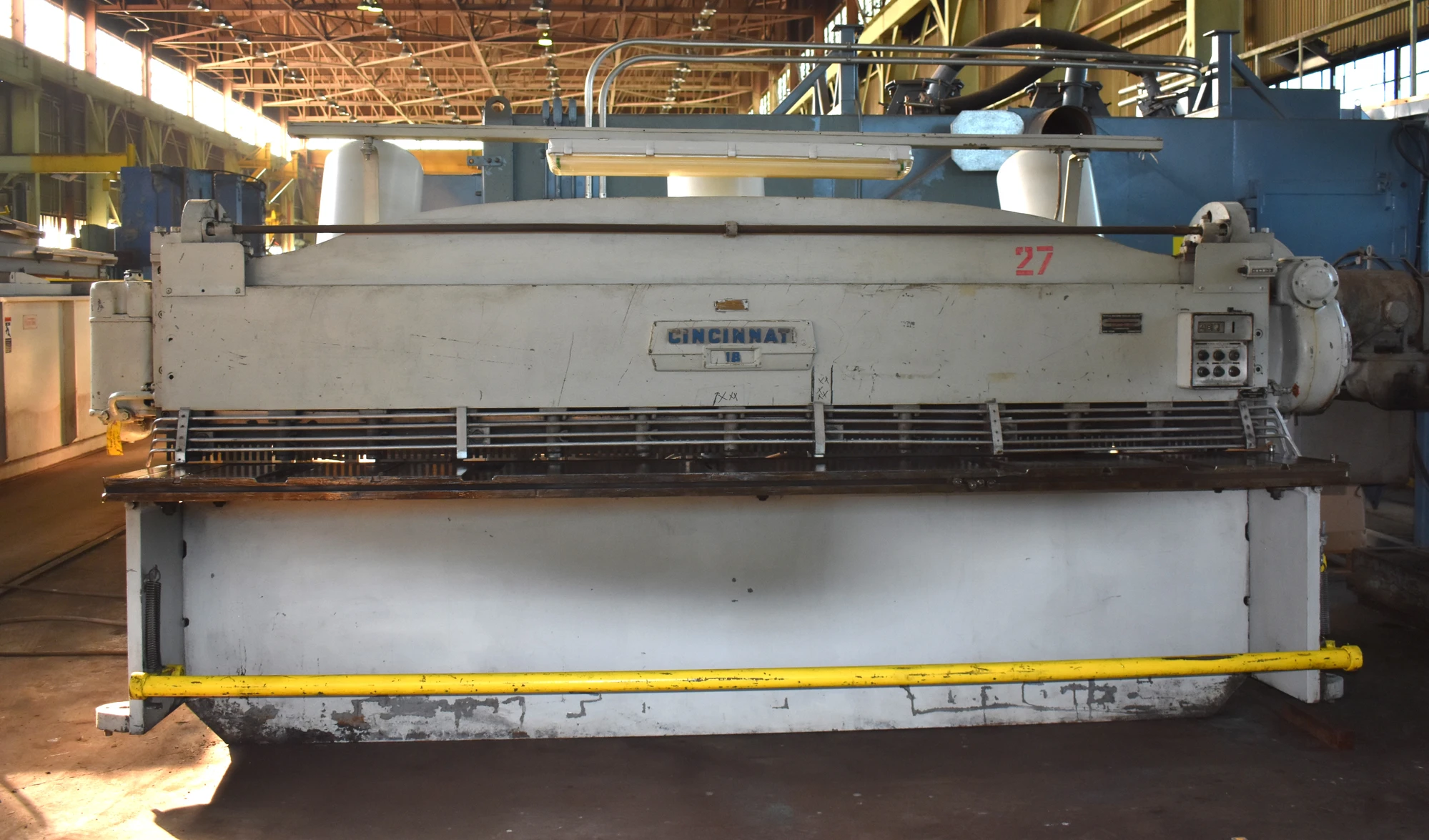

12' x 1/4" CINCINNATI-INC MECHANICAL POWER
SQUARING SHEAR
Serial No 35624, Model 1812,
EQUIPPED WITH:
Power Back Gauge (Front Operated)
7' Squaring Arm - 1 Front Support
Hydraulic Hold-Downs
Full Length Foot Treadle
CATALOG SPECIFICATIONS:
Shearing Capacity, Nominal 12' x 1/4"
Shearing Capacity, Mild Steel 12' x 1/4"
Length Between Housings 12'3"
Length of Knives 12'4"
Rake, Taper Per Foot 5/16"
Ram Adjustment 11/16"
Hold-Downs to Knife Edge 5/8"
Total Hold-Down Pressure 10 TON
Strokes Per Minute 60 SPM
Main Motor, Horsepower 10 HP
Overall Dimensions, L x D 15'2" x 6'
Overall Height 6'3"
Weight, Approximately 22000 LBS
F.O.B. OUR WAREHOUSE
