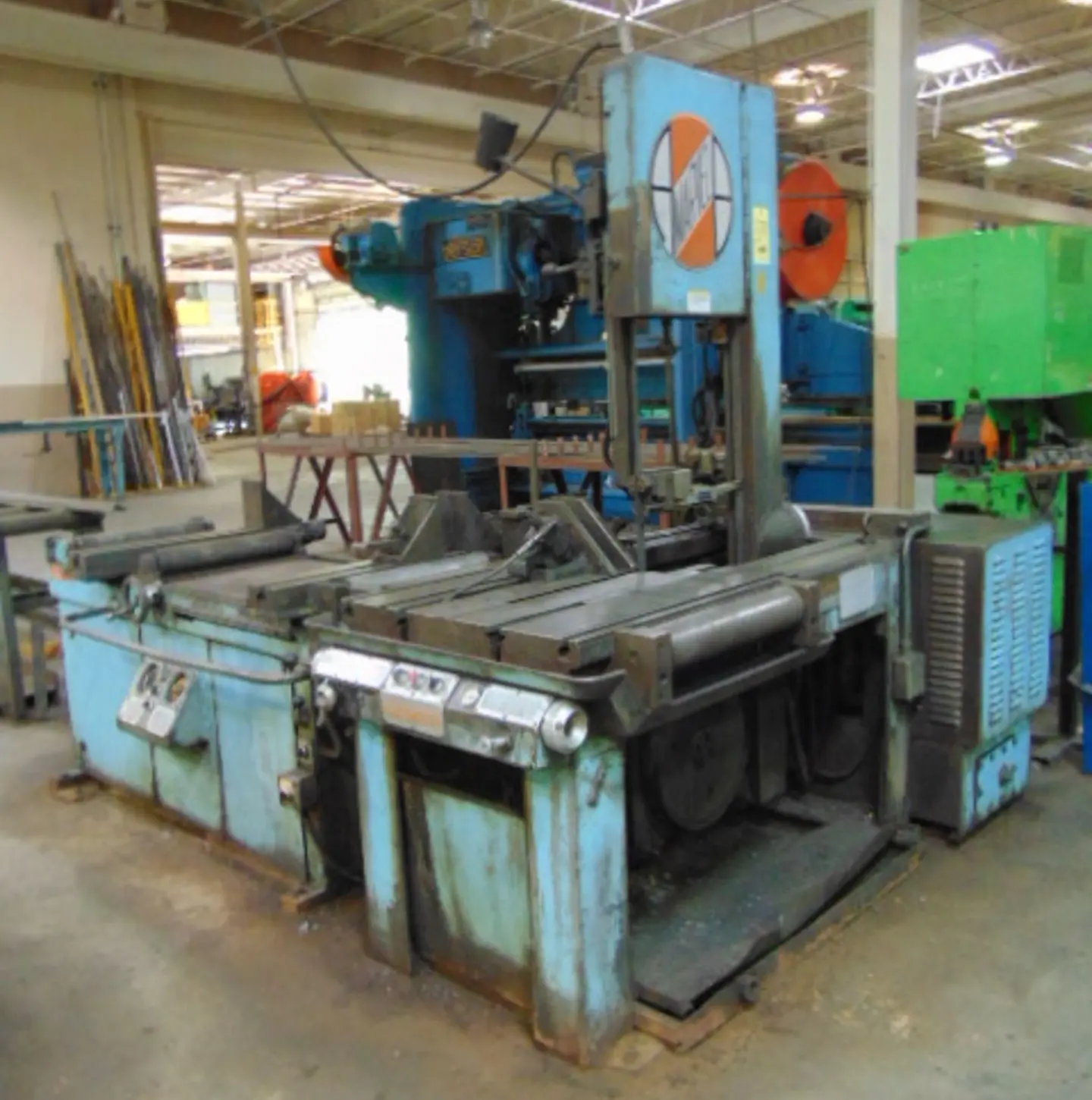

81A MARVEL TILTING HEAD AUTOMATIC
UNIVERSAL VERTICAL BAND SAW
Serial No. D1385, Model 81A
| Power | 5 hp | 3.7 kW |
| Blade Width | 1.25" | 31.75 mm |
| Blade Length | 174" | 4,419.6 mm |
| FPM | 55 to 340 | 55 to 340 |
| Dimensions | 30 x 33 | 30 x 33 |
| Weight | 7330 | 7330 |
81A MARVEL TILTING HEAD AUTOMATIC
UNIVERSAL VERTICAL BAND SAW
Serial No. D1385, Model 81A
EQUIPPED WITH:
72" Automatic Shuttle Feed Loading Table w/Multi-Cycle & Pre-Set Counter
Hydraulically Operated Vises
1-1/4" Blade Width
(2) 10' Sections Of Roller Conveyor
(12) Boxes Of Extra Saw Blades
CATALOG SPECIFICATIONS:
Capacity, Nominal 18" x 20"
Capacity, Maximum 18-1/4" x 20-1/8"
Capacity, 45 Degree Blade Angle 18-1/4" x 12-1/2"
Feed Length, Automatic, Maximum 24"
Feed Length, Manual In 24" Increments Unlimited
Table Sorking Surface, W x L 30" x 33"
Shuttle Load Capacity 7000 LBS
Vise Opening, Maximum 21-1/2"
Blade Length 14'6"
Blade Width 1-1/4"
Blade Speeds, Infinitely Variable 55 to 340 FPM
Feed Range, Infinitely Variable 0 to 200 LBS
Motor, Horsepower/RPM 5 HP/1200 RPM
Weight, Approximately 7330 LBS
F.O.B. OUR WAREHOUSE
