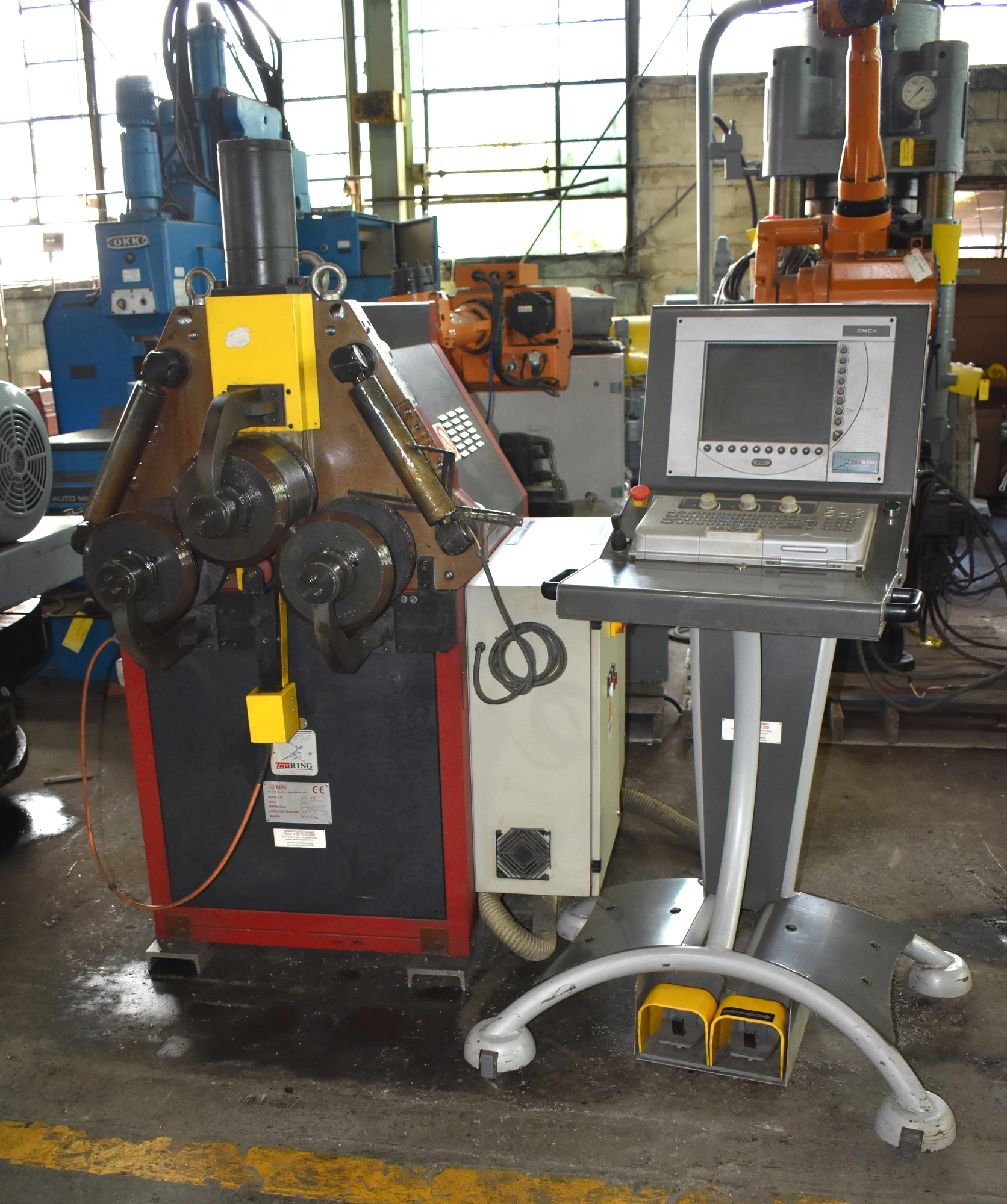

USED 2007 TAURING DELTA 60

3.15" x 3.15" x .315" TAURING HYDRAULIC CNC ANGLE

AND PROFILE BENDING ROLL

New 2007, Serial Number 060D-616, Model Delta 60,

3.15" x 3.15" x .315" TAURING HYDRAULIC CNC ANGLE
AND PROFILE BENDING ROLL
New 2007, Serial Number 060D-616, Model Delta 60,

EQUIPPED WITH:
CNC-1 Pro Touchscreen CNC Control
All Three Rolls Driven
Interchangeable Universal Tooling

CATALOG SPECIFICATIONS:
Angles Leg-Out @ 29" Min Radius .......... 3.15" x3.15" x .315"
Angles Leg-In @ 37" Min Radius .......... 3.15" x 3.15" x .315"
Round Tubing @ 45" Min Radius .......... 3.5" x .10"
Solid Round @ 21" Min Radius .......... 2.5"
Square Tube @ 45" Min Radius .......... 3.15" x 3.15" x .140"
Flat Bar Hard @ 37" Min Radius .......... 3.5" x .70"
Flat Bar Easy @ 25" Min Radius .......... 5.15" x 1.4"
T-Channel Hard @ 21" Min Radius .......... 2.8" x 2.8" x .35"
T-Channel Easy @ 21" Min Radius .......... 2.8" x 2.8" x .35"
Pipe Schedule 40 @ 27" Min Radius .......... 2.5"
Rectangular Tube Easy @ 45" Min Radius .......... 4.25" x 2.125" x .14"
Solid Square @ 21" Min Radius .......... 2.125" x 2.125"
Rolling Speed .......... 7.4 RPM
Shaft Working Length .......... 6.3"
Shaft Diameters .......... 2.36"
Overall Dimensions, L x W x H .......... 45" x 49" x 67"
Weight, Approximately .......... 2500 LBS

NOTE: This State Of The Art CNC Pyramid Style Three Gear Driven Roll Bender
Has Lower Roll Centers That Can Be Positioned In Four Different Positions.
All Three Shafts Are Hardened, Ground High Strength Steel, Which Are Mounted
On Taper Roller Bearings For High Radial Or Axial Loads. The Top Roll Is
Equipped With A Friction Mechanical Device For Rim Speed Compensation.
Replacement Price On This Roll Is $129,600.00.
F.O.B. OUR WAREHOUSE
Rolling Speed: 7.4 RPM
Shaft Working Length: 6.3"
Shaft Diameters: 2.36"
Weight, Approximately: 2500 LBS
