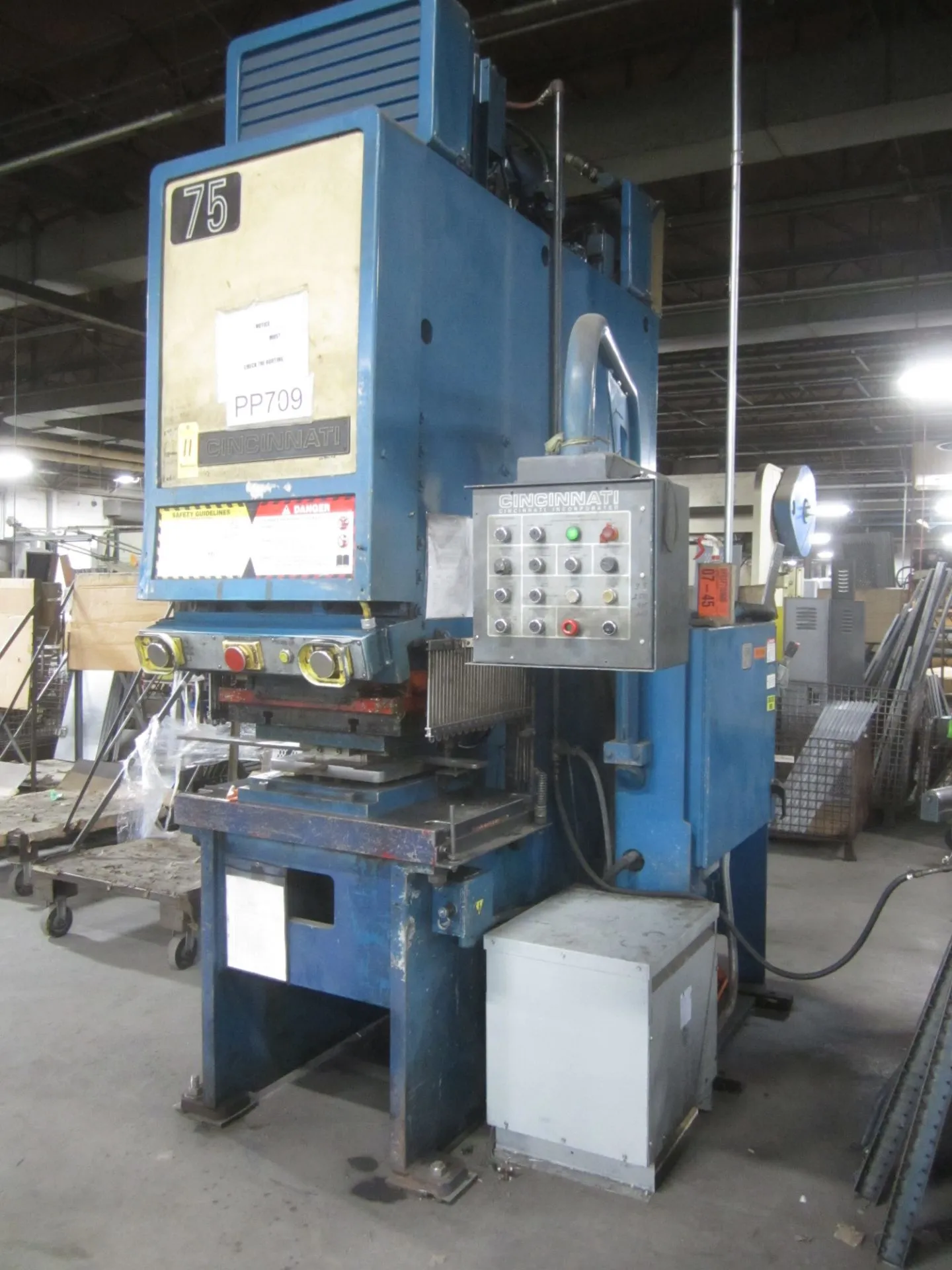

75 TON CINCINNATI-INC CNC GAP-FRAME HYDRAULIC PRESS
New 2000, Serial No 51814, Model 75 OBS,
| Tonnage | 75 T | 68.039 t |
| Stroke | 0" | 0 mm |
| Daylight | 14.25" | 361.95 mm |
| Power | 20 hp | 14.9 kW |
| Bed W | 24" | 609.6 mm |
| Bed L | 36" | 914.4 mm |
| IPM | 695 | 695 |
| Weight | 17500 | 17500 |
75 TON CINCINNATI-INC CNC GAP-FRAME HYDRAULIC PRESS
New 2000, Serial No 51814, Model 75 OBS,
EQUIPPED WITH:
Cincinnati Pendant Mounted Microprocessor Control
Quick Die Change System (Power Clamping For Tool Sets)
24" x 18" x 2-1/2" T-Slotted Bolster Plate Mounted On Slide
36" x 24" x 3.5" T-Slotted Bolster Plate Mounted On Bed
CATALOG SPECIFICATIONS:
Tonnage Capacity, Low Speed 75 TON
Tonnage Capacity, Medium Speed 42 TON
Stroke Length, Adjustable .75" to 8"
Gap Length 14"
Open Height, Maximum 14.25"
Closed Height, Minimum 6.25"
Slide Area, L-R x F-B 24" x 18"
Slide Bolster Area, L-R x F-B 24" x 18"
Bed Bolster Area, L-R x F-B 36" x 24"
Distance Between Housings 25"
Slide Speed, Pressing (High) 606 IPM
Slide Speed, Pressing (Medium) 175 IPM
Slide Speed, Pressing (Low) 61 IPM
Slide Speed, Return (High) 695 IPM
Slide Speed, Return (Low) 450 IPM
Hydraulic Motor, Horsepower 20 HP
Weight Approximately 17500 LBS
F.O.B. OUR WAREHOUSE
