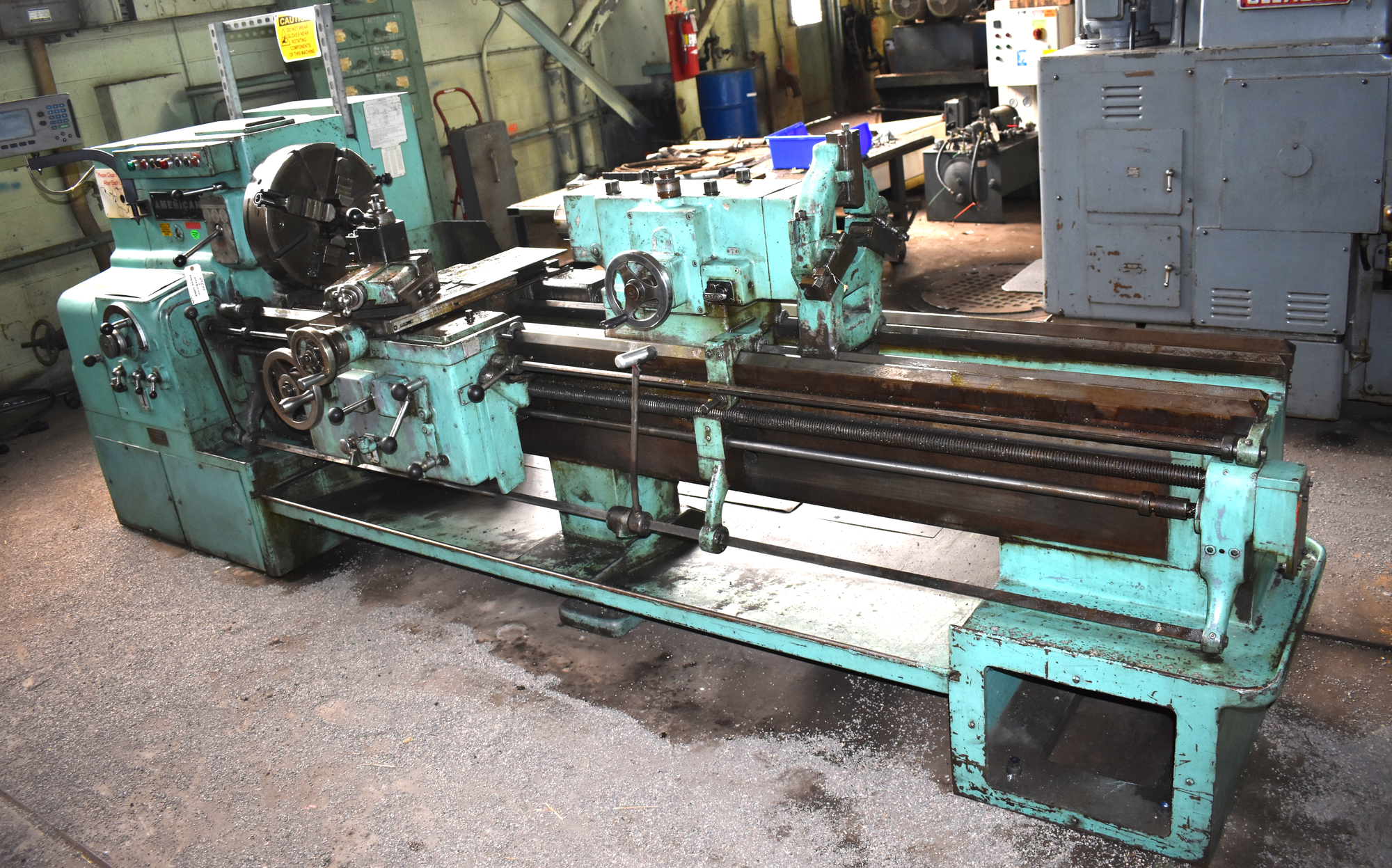

21.5" x 78" AMERICAN "STYLE C 16X78" ENGINE LATHE
w/DIGITAL READOUTS
Serial No 79647-74, Style C 16x78
| Swing | 21.5" | 546.1 mm |
| Centers | 78" | 1,981.2 mm |
| Spindle Bore | 2" | 50.8 mm |
| RPM | 1,000 RPM | 1,000 RPM |
| Swing Over Cross Slide | 13" | 330.2 mm |
| Weight | 10500 | 10500 |
21.5" x 78" AMERICAN "STYLE C 16X78" ENGINE LATHE
w/DIGITAL READOUTS
Serial No 79647-74, Style C 16x78
EQUIPPED WITH:
Acu-Rite 2-Axis Digital Readout
18" 4-Jaw Chuck w/Jaws - Steady Rest
15" 3-Jaw Chuck w Jaws - 18" Faceplate
Turret Depth Stop
Hard Ways - 4-Way Tool Post
Full-Length Lead-Screw Threading
Quick Change Gear Box and Threading Dial
Full Length Coolant-Chip Pan
CATALOG SPECIFICATIONS:
Hole Thru Spindle...................... 2"
Swing Over Bed Ways, Rated............. 16"
Swing Over Bed Ways, Actual............ 21.5"
Swing Over Carriage Wings.............. 20"
Swing Over Cross-Slide................. 13"
Distance Between Centers............... 78"
Cross-Slide Cross-Feed Travel.......... 12.25"
Top-Slide Cross-Feed Travel............ 4"
Tailstock, Spindle Diameter............ 4"
Tailstock, Spindle Travel.............. 10"
Tailstock, Spindle Taper............... #4 MT
(27) Spindle Speeds, Range............. 15 to 1000 RPM
(66) Carriage Longitudinal Feeds....... .0015 to .091 IPR
(66) Thread Changes, Range............. 2 to 120 TPI
Weight, Approximately.................. 10500 LBS
F.O.B. OUR WAREHOUSE
