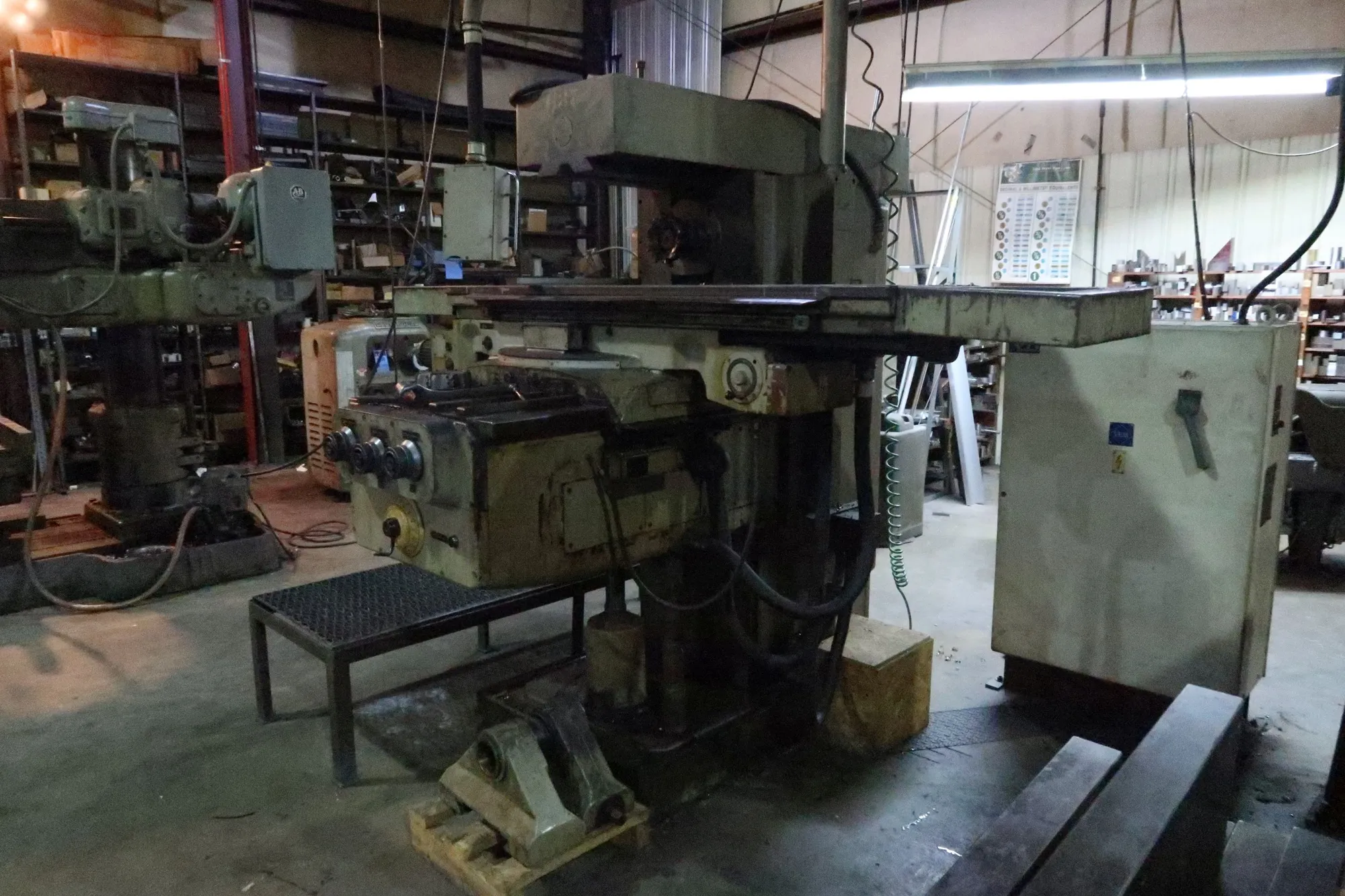

F400-VI/2 HECKERT (WMW) UNIVERSAL KNEE-TYPE
HORIZONTAL MILL
Serial No 137405189101 & 326536-233, Model F400-VI/2,
| Table Size-W | 15.7" | 398.78 mm |
| Table Size-L | 62.9" | 1,597.7 mm |
| Travel-Long | 44" | 1,117.6 mm |
| Travel-Cross | 13.6" | 345.44 mm |
| Travel-Vert | 22" | 558.8 mm |
| RPM | 1,400 RPM | 1,400 RPM |
| Taper | #50 NMTB | #50 NMTB |
| Weight | 8600 LBS | 8600 LBS |
F400-VI/2 HECKERT (WMW) UNIVERSAL KNEE-TYPE
HORIZONTAL MILL
Serial No 137405189101 & 326536-233, Model F400-VI/2,
EQUIPPED WITH:
Universal Swiveling Table
Knee Motor - (2) Arbor Supports
Overhead Pendant Controls
One-Shot Lubrication System
Some Extra Tooling And Accessories
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 15.7" x 62.9"
Table Longitudinal Travel (X-Axis) 44"
Saddle In-Out Cross Travel (Z-Axis) 13.6"
Knee Vertical Travel (Y-Axis) 22"
Table Load Capacity 3000 LBS
Spindle Taper #50 NMTB
Spindle Speeds, Range 28 to 1400 RPM
Weight, Approximately 8600 LBS
F.O.B. OUR WAREHOUSE
