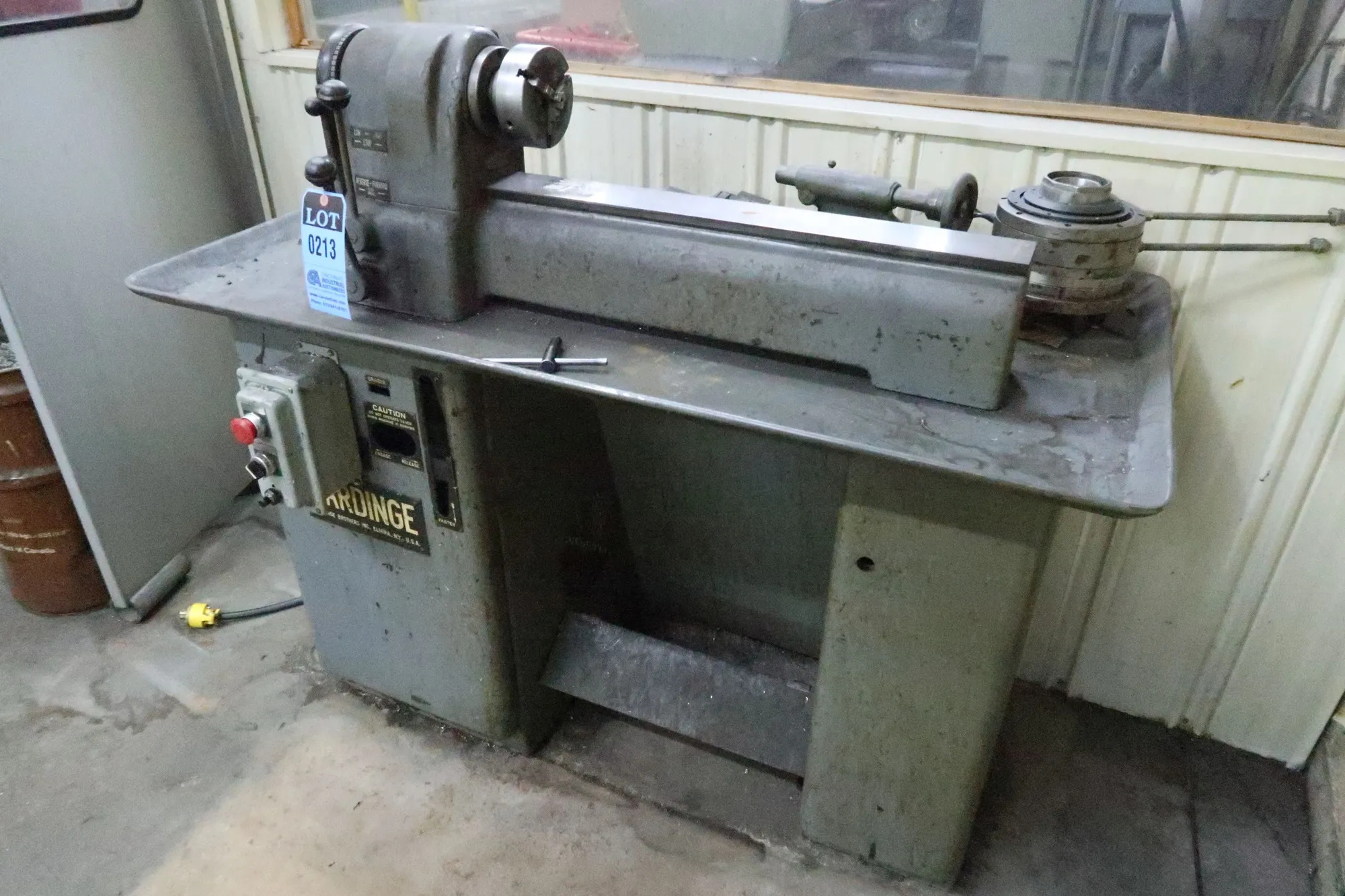

DV59 HARDINGE "SUPER PRECISION" HIGH SPEED LATHE
Serial No V59-863-1, Model DV-59
| Swing | 9" | 228.6 mm |
| Centers | 17" | 431.8 mm |
| Taper | 2.0 | 2.0 |
| Power | 1 hp | 0.7 kW |
| RPM | 3,500 RPM | 3,500 RPM |
| Dimensions | 36 | 36 |
| Weight | 1150 | 1150 |
DV59 HARDINGE "SUPER PRECISION" HIGH SPEED LATHE
Serial No V59-863-1, Model DV-59
EQUIPPED WITH:
Updated Allen Bradley Variable Speed Drive w/Electrics
Compound Slide Rest
Tailstock
5" 3-Jaw Chuck
CATALOG SPECIFICATIONS:
Swing Over Bed 9"
Center Distance 17"
Spindle Capacity, Round 5C Collets 1-1/16"
Spindle Capacity, Hexagon 5C Collets 7/8"
Spindle Capacity, Square 5C Collets 3/4"
Top Slide, Travel 4-1/4"
Bottom Slide, Travel 5"
Tailstock Spindle Travel 3-1/2"
Tailstock Spindle Taper #2 MT
Length of Bed 36"
Spindle Speeds, Infinitely Variable 230 to 3500 RPM
Motor, Horsepower 1 HP
Weight, Approximately 1150 LBS
F.O.B. OUR WAREHOUSE
