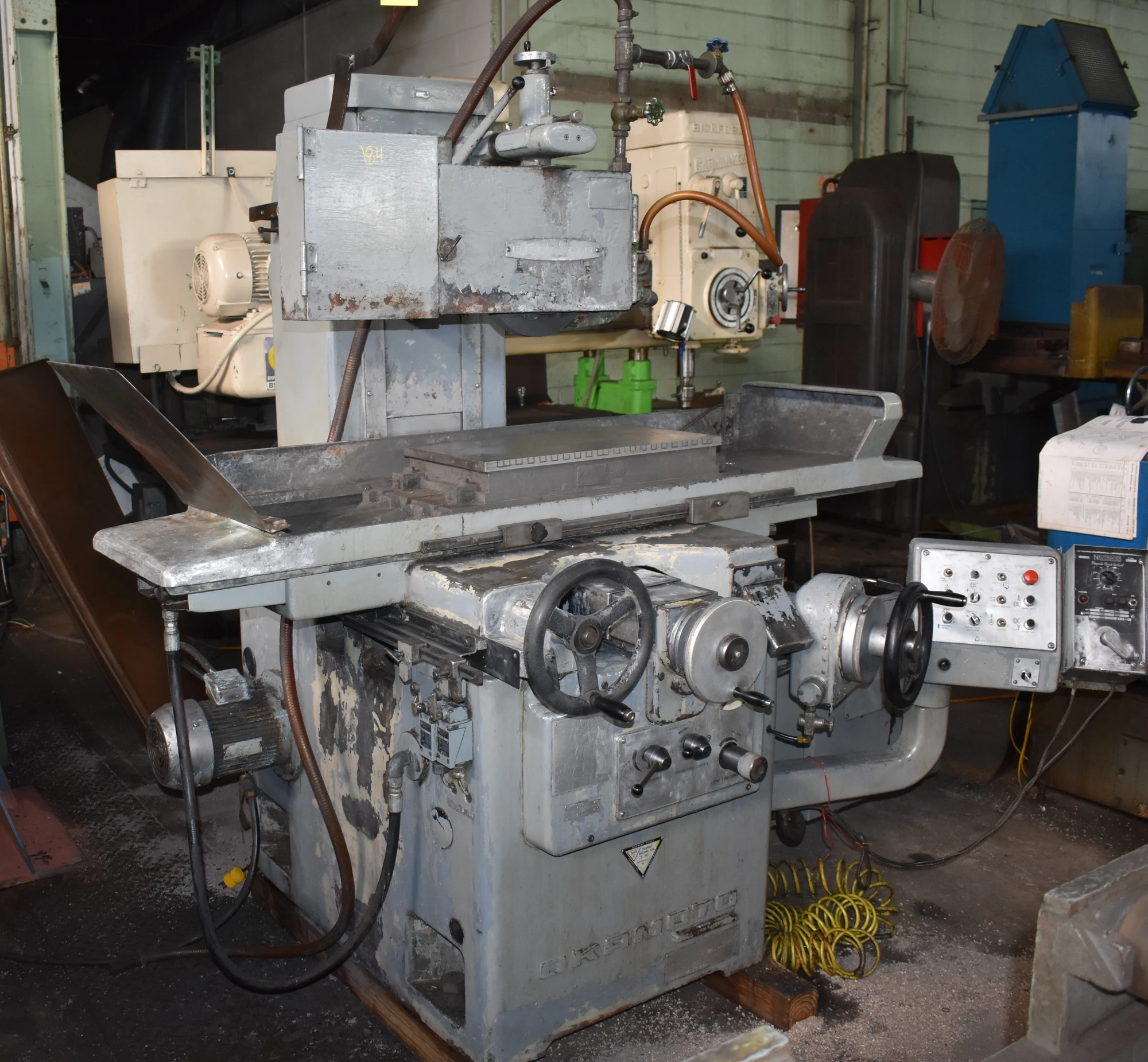

USED OKAMOTO 124N

12" X 24" OKAMOTO "ACCUGAR 124N" PRECISION HYDRAULIC
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 2198, Model 124N, Series "ACCUGAR"

EQUIPPED WITH:
12" x 24" Electro-Magnetic Chuck
w/Variable Automatic Neutrofier
Overhead Wheel Dresser
Automatic Incremental Power Down Feed
Power Rapid Feed Head Elevation
Coolant System

CATALOG SPECIFICATIONS:
Grinding Capacity Maximum, W x L 12" x 24"
Table Working Surface, W x L .......... 10.813" x 23.75"
Grinding Width Capacity, Maximum .......... 12"
Grinding Length Capacity, Maximum .......... 24"
Height Under 12" Grinding Wheel .......... 13.5"
Table Longitudinal Travel .......... 27.5"
Table Cross Travel .......... 12"
Grinding Wheel Diameter 12"
Grinding Wheel Width 1.5"
Grinding Wheel Hole Diameter 5"
Table Longitudinal Feeds, Range .......... 1 to 100 FPM
Table Cross In-Feeds, Range .......... .04 to .4 IPR
Spindle Vertical Feeds, Range .......... .0001 to .005 IPR
Power Rapid Vertical Traverse .......... 14 IPM
Grinding Wheel Spindle Motor .......... 5 HP/1730 RPM
Hydraulic System Motor .......... 2 HP
Power Elevation Motor .......... 1/2 HP
Electrical System .......... 230-460/3/60
Floor Space Required, L x W 98.5" x 67"
Overall Height 83"
Weight Approximately 4900 LBS
F.O.B. OUR WAREHOUSE
