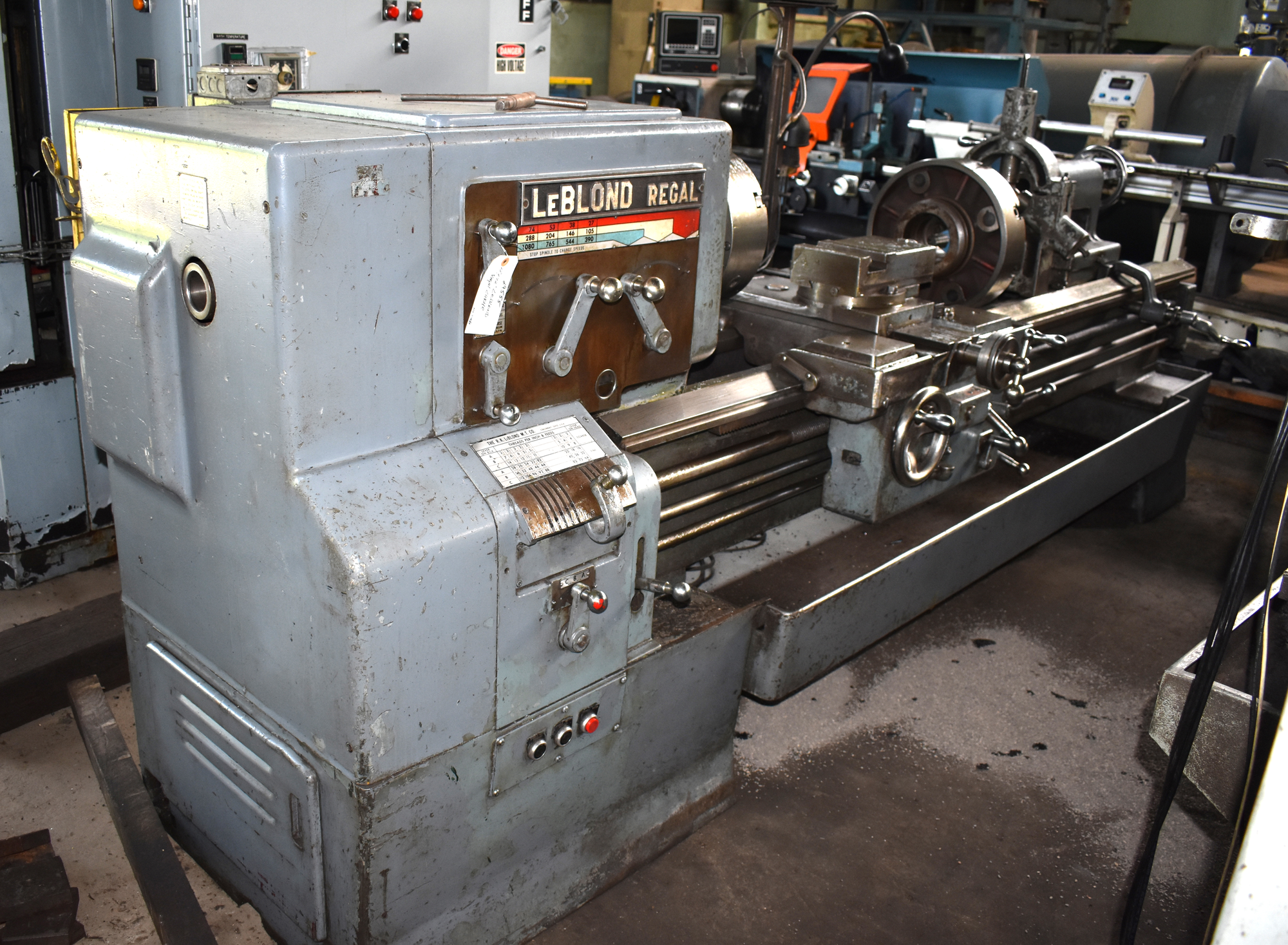

USED LEBLOND F21 REGAL

21"/22.25" x 72" LEBLOND "REGAL" ENGINE LATHE w/DIGITAL READOUTS

Serial No 2F637, Model F21, Series "REGAL"

21"/22.25" x 72" LEBLOND "REGAL" ENGINE LATHE w/DIGITAL READOUTS
Serial No 2F637, Model F21, Series "REGAL"

EQUIPPED WITH:
Digital Readouts
12" 3-Jaw Chuck w/Jaws
Flame Hardened Bed Ways - (2) Steady Rests
Quick Change Gear Box and Threading Dial
Full Length Coolant-Chip Pan

CATALOG SPECIFICATIONS:
Hole Thru Spindle .......... 2.1875"
Swing Over Bed Ways, Rated .......... 21"
Swing Over Bed Ways, Actual .......... 22.25"
Swing Over Cross-Slide .......... 14.25"
Distance Between Centers .......... 72"
Cross-Slide Cross-Feed Travel .......... 13.25"
Tailstock, Spindle Diameter .......... 3.125"
Tailstock, Spindle Travel .......... 7.5"
(12) Spindle Speeds, Range .......... 27 to 1080 RPM
(56) Carriage Longitudinal Feeds .......... .0036 to .205 IPR
(56) Thread Changes, Range .......... 2 to 112 TPI
Main Motor, Horsepower/RPM .......... 10 HP/1735 RPM
Electrical System .......... 220-440/3/60
F.O.B. OUR WAREHOUSE
Hole Thru Spindle: 2.1875"
Swing Over Cross-Slide: 14.25"
Distance Between Centers: 72"
Cross-Slide Cross-Feed Travel: 13.25"
Tailstock, Spindle Diameter: 3.125"
Tailstock, Spindle Travel: 7.5"
(12) Spindle Speeds, Range: 27 to 1080 RPM
(56) Carriage Longitudinal Feeds: 0036 to .205 IPR
(56) Thread Changes, Range: 2 to 112 TPI
Main Motor, Horsepower/RPM: 10 HP/1735 RPM
Electrical System: 220-440/3/60
