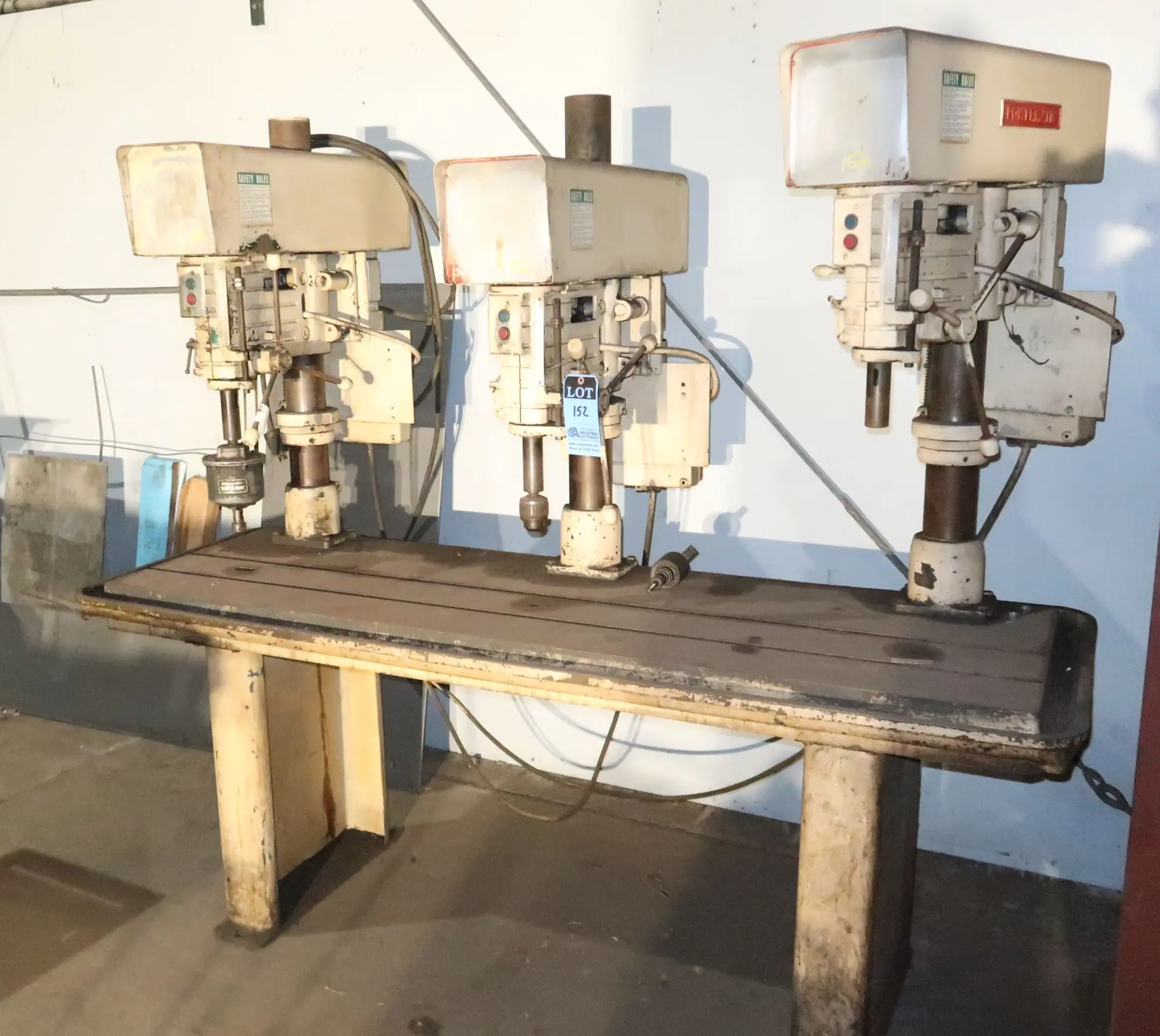

20" POWERMATIC THREE-SPINDLE MULTIPLE SPINDLE DRILL
Serial No 520S087, 520S088, 520S086, Model 1200,
| # Spindles | 3 spdl | 3 spdl |
| Swing | 20" | 508 mm |
| Power | 1.5 hp | 1.1 kW |
| RPM | 1,730 RPM | 1,730 RPM |
| Dimensions | 24 x 80 | 24 x 80 |
| Weight | 2000 | 2000 |
20" POWERMATIC THREE-SPINDLE MULTIPLE SPINDLE DRILL
Serial No 520S087, 520S088, 520S086, Model 1200,
EQUIPPED WITH:
Manual Down-Feed
Powermatic T-Slotted Work Bench
Procunier Tapping Head (Model E)
Jacobs Chuck in Middle Spindle
CATALOG SPECIFICATIONS:
Drilling Capacity, Cast Iron 1.125"
Drilling Capacity, Steel 0.875"
Spindle Stroke, Vertical 6"
Swing to Center of Circle, Maximum 20"
Throat Depth Spindle to Column 7.5"
Table Working Surface, W x L 24" x 80"
Column Diameter 4" x 1/2" Wall
Quill Diameter 2.75"
Spindle Motor Horsepowers 1.5 HP/1730 RPM
Electrical System 230-460/3/60
Weight Approximately 2000 LBS
F.O.B. OUR WAREHOUSE
