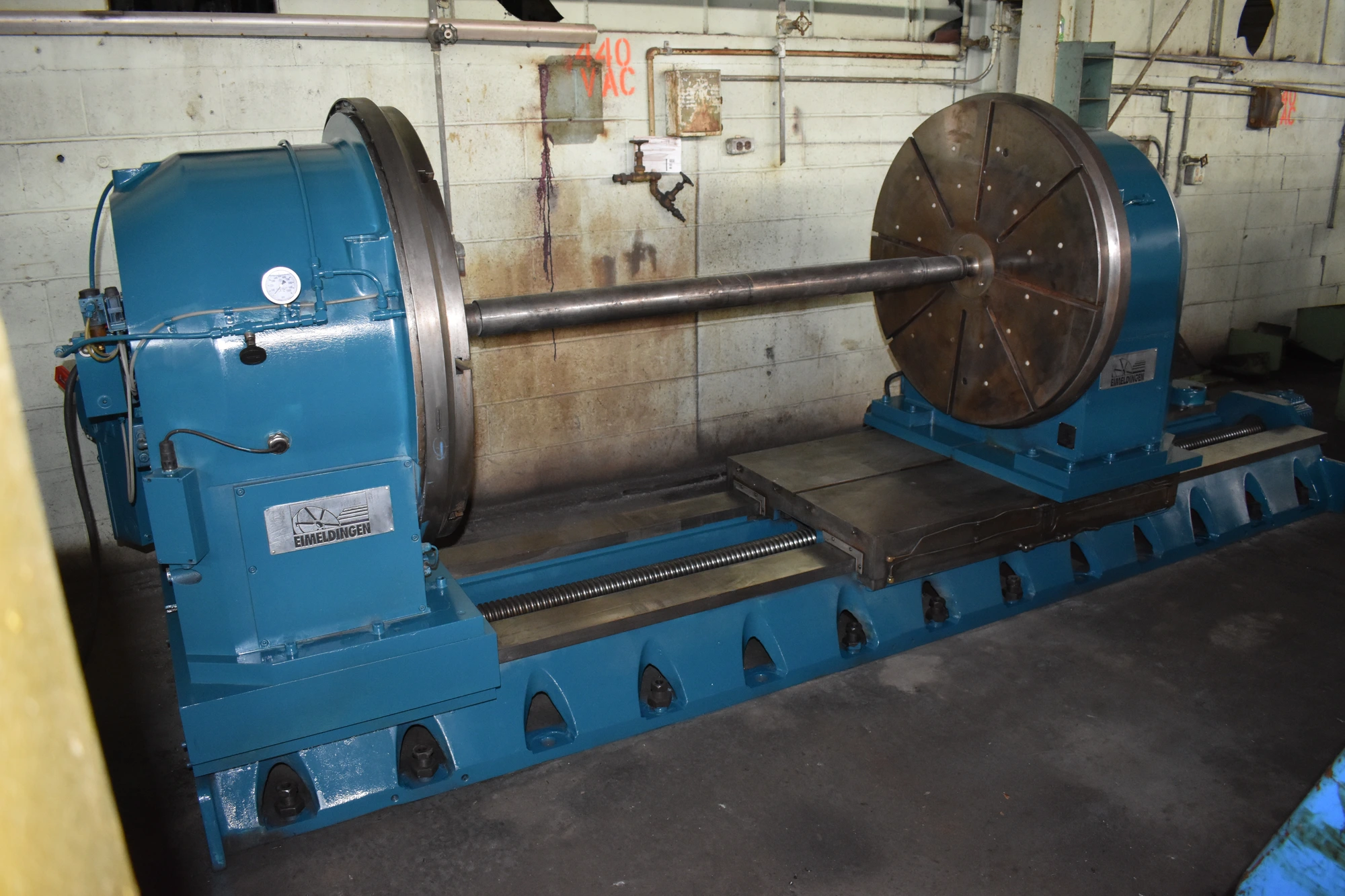

39.5" x 108" EIMELDINGEN/RUSACH DUAL MILLING VERTICAL
ROTARY TABLES W/TAILSTOCK AND MASTER SLIDE
(2) Table Models 5-1010, Table Serial Numbers V10 142 & V10 143
Slide Model FT7-MF158-SF50-T59, Slide Serial Number 274
| Table Size-X | 39.76" | 1,009.9 mm |
| Table Size-Y | 24.02" | 610.11 mm |
| Dimensions | 52.16 X 39.76 X 24.02 | 52.16 X 39.76 X 24.02 |
| Weight | 13200 | 13200 |
39.5" x 108" EIMELDINGEN/RUSACH DUAL MILLING VERTICAL
ROTARY TABLES W/TAILSTOCK AND MASTER SLIDE
(2) Table Models 5-1010, Table Serial Numbers V10 142 & V10 143
Slide Model FT7-MF158-SF50-T59, Slide Serial Number 274
EQUIPPED WITH:
39.5" Eimeldingen "5-1010" Power Rotary Table w/Fanuc Sevo
Motor Drive & Active Clamping Mechanism
39.5" Eimeldingen "5-1010" Tailstock
Eimeldingen "PT7-MF158-S50-T59" Heavy-Duty Master Slide
Hydraulic/Pneumatic Clamping Unit
Heidenhain Measuring System
Ball Screw
Emerson Inverter Duty Drive
OVERALL SPECIFICATIONS:
Table Diameters 39.37"
Number Of T-Slots 8
Center Hole 3.94"
Distance Between Centers, Approximately 108"
ROTARY TABLE SPECIFICATIONS:
Table Diameter 39.37" 1000MM
T-Slot Dimensions 18MM
Load Capacity, Uniform 13200 LBS 6000KG
Overall Table Dimensions, Length 24.02" 610MM
Overall Table Dimensions, Width 39.76" 1010MM
Overall Table Dimensions, Height 52.16" 1300MM
Permitted Machining Force 17600 LBS 80000N
Clamping Torque, Standard 190550 LBS 22000NM
Milling Torque, Maximum 164567 LB/IN 19000 NM
Main Gear Ratio 360:1
NOTE: These Tables Are Suitable For Heavy Machining And
Metrology Applications With High Accuracies And Heavy
Load Capabilities. Factory Advises This CNC Rotary Table
System Would Have A Replacement Price Of
Approximately $475,000.00.
F.O.B. OUR WAREHOUSE
