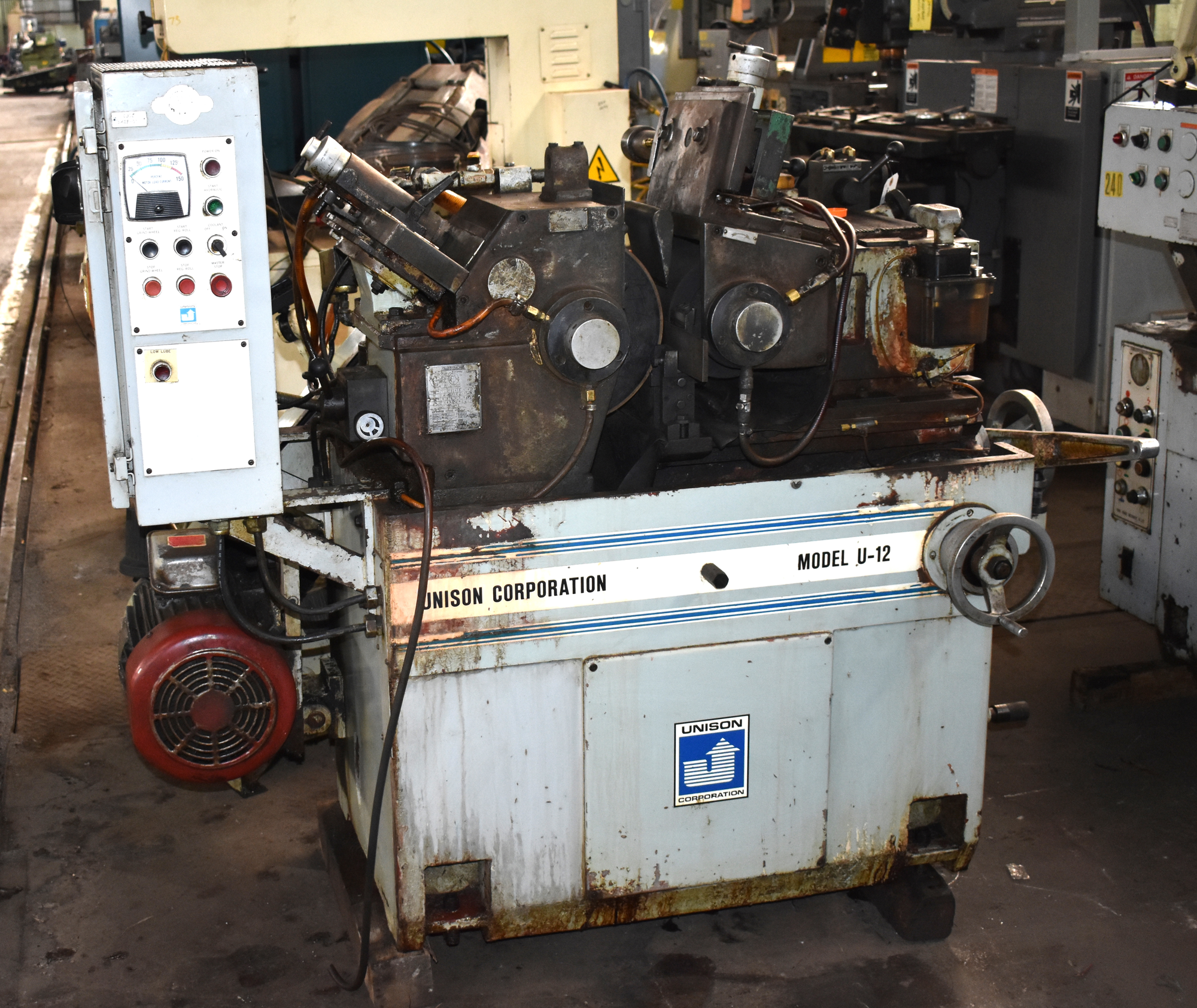

U12 UNISON "HIGH PRODUCTION" CENTERLESS GRINDER
Serial No U12 132, Model 475-2 U12
| Capacity | 0" | 0 mm |
| Grinding Wheel Dia. | 12" | 304.8 mm |
| GW Power | 7.5 hp | 5.6 kW |
| Regulating Wheel Dia | 5" | 127 mm |
| RW Power | 1 hp | 0.7 kW |
| RW RPM | 21,333 RPM | 21,333 RPM |
| Weight | 3860 LBS | 3860 LBS |
U12 UNISON "HIGH PRODUCTION" CENTERLESS GRINDER
Serial No U12 132, Model 475-2 U12
EQUIPPED WITH:
Thrufeed Workrest
Hydraulic Grinding Wheel Truing
Hydraulic Regulating Wheel Truing
Coolant System
CATALOG SPECIFICATIONS:
Capacity Minimum Diameter (Standard Work Rest) 0.04"
Capacity Maximum Diameter (Standard Work Rest) 1.58"
Capacity Maximum Diameter (Special Work Rest) 3"
Grinding Wheel, Maximum Diameter 12"
Grinding Wheel, Maximum Width 6"
Grinding Wheel, Hole Diameter 5"
(7) Regulating Wheel Speeds, Range 21 to 333 RPM
Regulating Wheelhead Tilt Angle +/- 5-DEGREES
Grinding Wheel Motor, Horsepower 7.5 HP
Regulating Wheel Motor, Horsepower 1 HP
Hydraulic Pump Motor, Horsepower 0.25 HP
Electrical System 220/3/60
Weight, Approximately .......... 3860 LBS.
F.O.B. OUR WAREHOUSE
