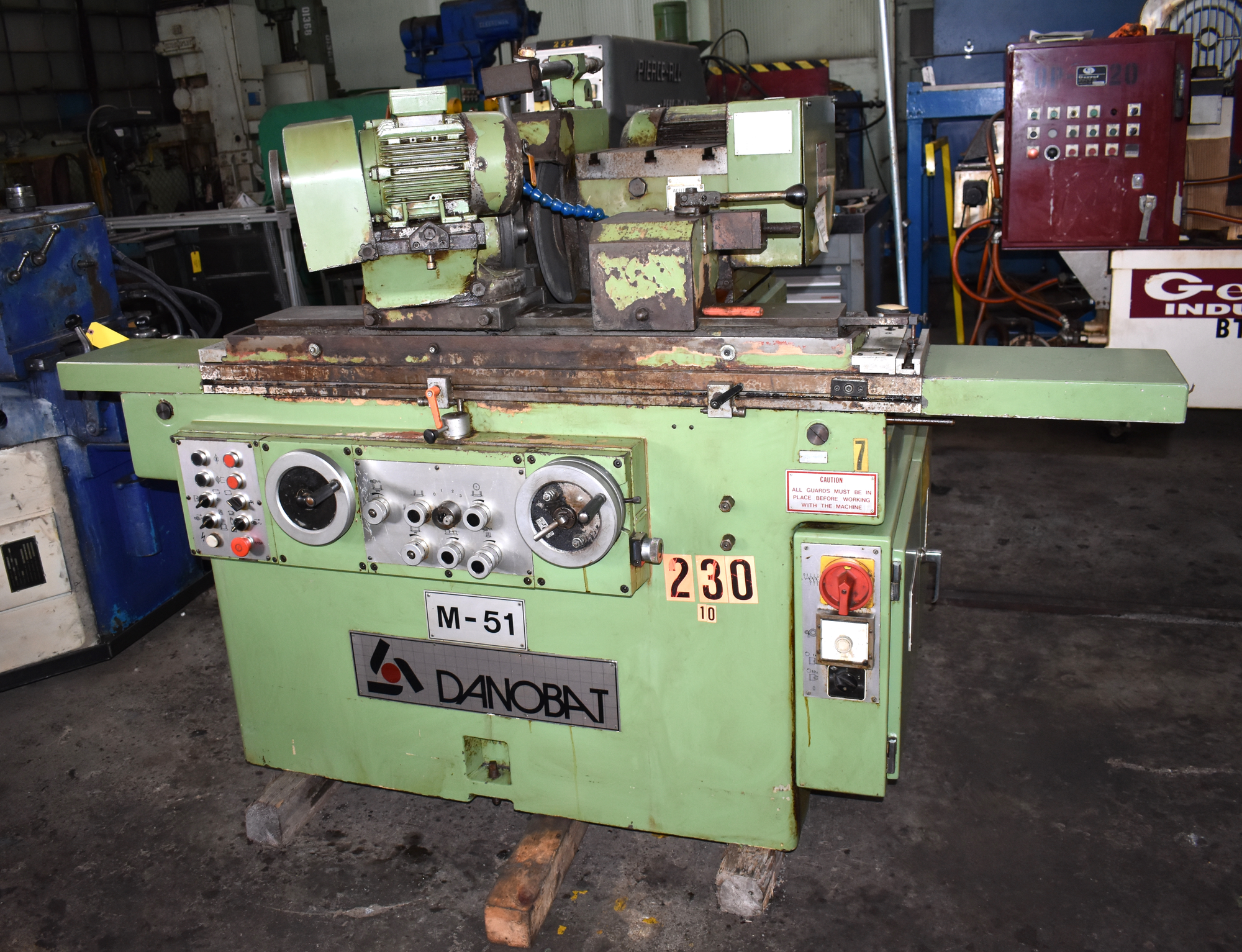

10" x 20" DANOBAT HIGH PRECISION UNIVERSAL CYLINDRICAL GRINDER
New 1991, Serial No 294, Model M51
| Swing | 10.2" | 259.08 mm |
| Centers | 20" | 508 mm |
| Plain or Angle Head | Plain | Plain |
| Grinding Wheel Dia. | 15" | 381 mm |
| Wheel Speed | 1,530 RPM | 1,530 RPM |
10" x 20" DANOBAT HIGH PRECISION UNIVERSAL CYLINDRICAL GRINDER
New 1991, Serial No 294, Model M51
EQUIPPED WITH:
Live/Dead Center Workhead
Universal Swivelling Headstock
Hydraulic Longitudinal Table Feed
Hydraulic In-Feed
Automatic Lube System
CATALOGUE SPECIFICATIONS:
Swing Over Table, Maximum 10.2"
Grinding Diameter w/15" Wheel, Maximum 7.87"
Distance Between Centers, Nominal 20"
Grinding Wheel Diameter, Minimum 11.8"
Grinding Wheel Diameter, Standard 15"
Grinding Wheel Width, Maximum 1.5"
Grinding Wheel Width, Standard 2"
Grinding Wheel Hole Diameter 5"
Grinding Wheel Speed, 13.7" Wheel 1745 RPM
Grinding Wheel Speed, 15.7" Wheel 1530 RPM
Peripherical Speed 32 M/S 1312 F/S
Table Swivel Angle 8-DEGREES
Headstock Swivel Range 360-DEGREES
Grinding Wheelhead Swivel Range 30-DEGREES
Workhead Center Taper #4 MT
Tailstock Center Taper #3 MT
Workhead Spindle Speeds, Range 75 to 750 RPM
Table Longitudinal Feeds, Infinite .3 to 19.7 FPM
Grinding Wheelhead Spindle Motor 5.5 KW
F.O.B. Our Warehouse
