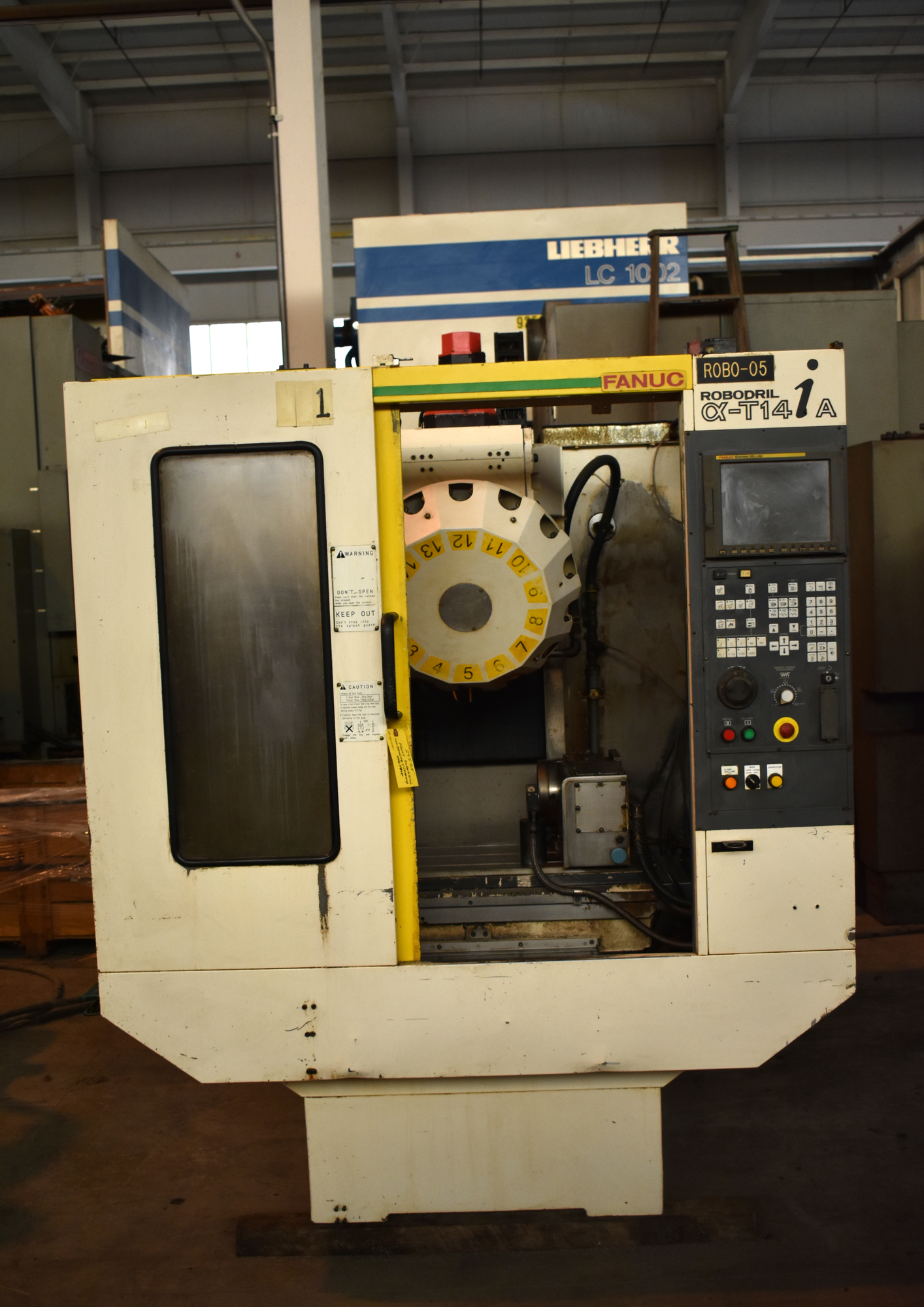

#ALPHA-T14iA FANUC "ROBODRILL" 4-AXIS CNC VERTICAL
DRILLING & TAPPING CENTER
Serial No P001TH837, Model Alpha-T14iA,
| X | 19.68" | 499.87 mm |
| Y | 14.96" | 379.98 mm |
| Z | 11.81" | 299.97 mm |
| Power | 7.3 hp | 5.4 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 14 | 14 |
| Taper | BT-30 | BT-30 |
| Table-W | 14.96" | 379.98 mm |
| Table-L | 21.6" | 548.64 mm |
| # Axis | 4 | 4 |
| Weight | 3750 | 3750 |
#ALPHA-T14iA FANUC "ROBODRILL" 4-AXIS CNC VERTICAL
DRILLING & TAPPING CENTER
Serial No P001TH837, Model Alpha-T14iA,
EQUIPPED WITH:
Fanuc 16-iM CNC Control
14-Position Automatic Tool Changer
Nikken (Model NSVZ180FA) CNC 4th Axis Rotary Indexing Table
Renishaw Tool Sensing Light
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 14.96" x 21.6"
Table Longitudinal Travel (X-Axis) 19.68"
Saddle Cross Travel (Y-Axis) 14.96"
Vertical Travel (Z-Axis) 11.81"
Spindle Nose to Table, Maximum 17.71"
Spindle Nose to Table, Minimum 5.9"
Spindle Taper #BT-30
Spindle Speeds Range, Inf. Variable 80 to 8000 RPM
Working Feedrate, X, Y, & Z-Axes 590 IPM
Rapid Traverse Rates, X, Y, & Z-Axis' 1889 IPM
Spindle Motor, Horsepower Rating 5.5 KW
Weight Approximately 3750 LBS
F.O.B. OUR WAREHOUSE
