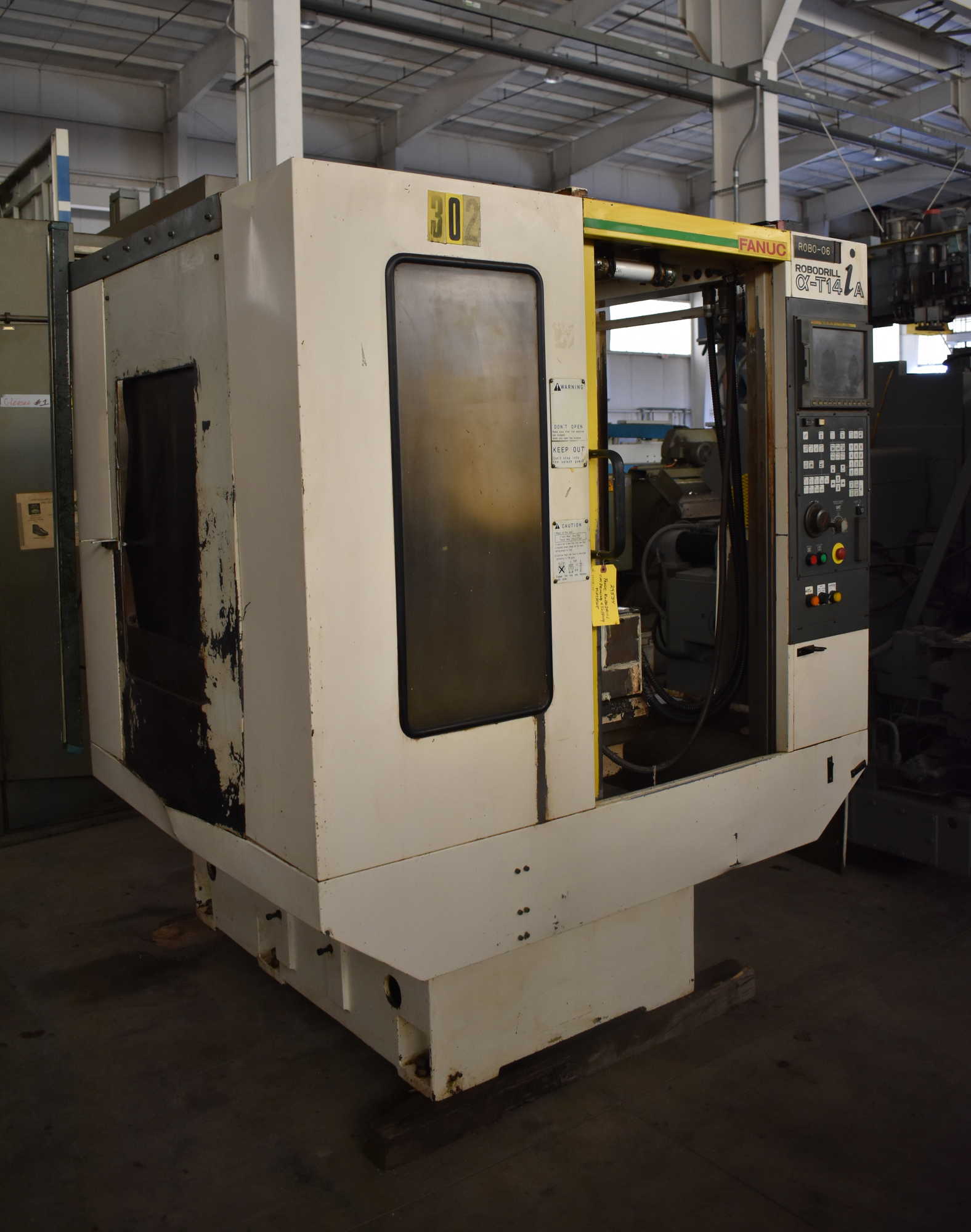

ALPHA-T14iA FANUC "ROBODRILL" 4-AXIS CNC VERTICAL
DRILLING & TAPPING CENTER
Serial No 99ZTH777, Model Alpha-T14iA,
| X | 19.68" | 499.87 mm |
| Y | 14.96" | 379.98 mm |
| Z | 11.81" | 299.97 mm |
| Power | 7.4 hp | 5.5 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 14 | 14 |
| Taper | #BT-30 | #BT-30 |
| Table-W | 14.96" | 379.98 mm |
| Table-L | 21.6" | 548.64 mm |
| # Axis | 4 | 4 |
| Dimensions | 14.96 x 21.6 x 17.71 | 14.96 x 21.6 x 17.71 |
| Weight | 3750 | 3750 |
ALPHA-T14iA FANUC "ROBODRILL" 4-AXIS CNC VERTICAL
DRILLING & TAPPING CENTER
Serial No 99ZTH777, Model Alpha-T14iA,
EQUIPPED WITH:
Fanuc 16-iM CNC Control
14-Position Automatic Tool Changer
Nikken (Model NSVZ-180A21) CNC 4th Axis Rotary Indexing Table
Renishaw Tool Sensing Light
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L .......... 14.96" x 21.6"
Table Longitudinal Travel (X-Axis) .......... 19.68"
Saddle Cross Travel (Y-Axis) .......... 14.96"
Vertical Travel (Z-Axis) .......... 11.81"
Spindle Nose to Table, Maximum .......... 17.71"
Spindle Nose to Table, Minimum .......... 5.9"
Spindle Taper .......... #BT-30
Spindle Speeds Range, Inf. Variable .......... 80 to 8000 RPM
Working Feedrate, X, Y, & Z-Axes .......... 590 IPM
Rapid Traverse Rates, X, Y, & Z-Axis' .......... 1889 IPM
Spindle Motor, Horsepower Rating .......... 5.5 KW
Weight Approximately .......... 3750 LBS
F.O.B. OUR WAREHOUSE
Table Longitudinal Travel (X-Axis): 19.68"
Saddle Cross Travel (Y-Axis): 14.96"
Vertical Travel (Z-Axis): 11.81"
Spindle Taper: #BT-30
Spindle Motor, Horsepower Rating: 5.5 KW
Weight Approximately: 3750 LBS
