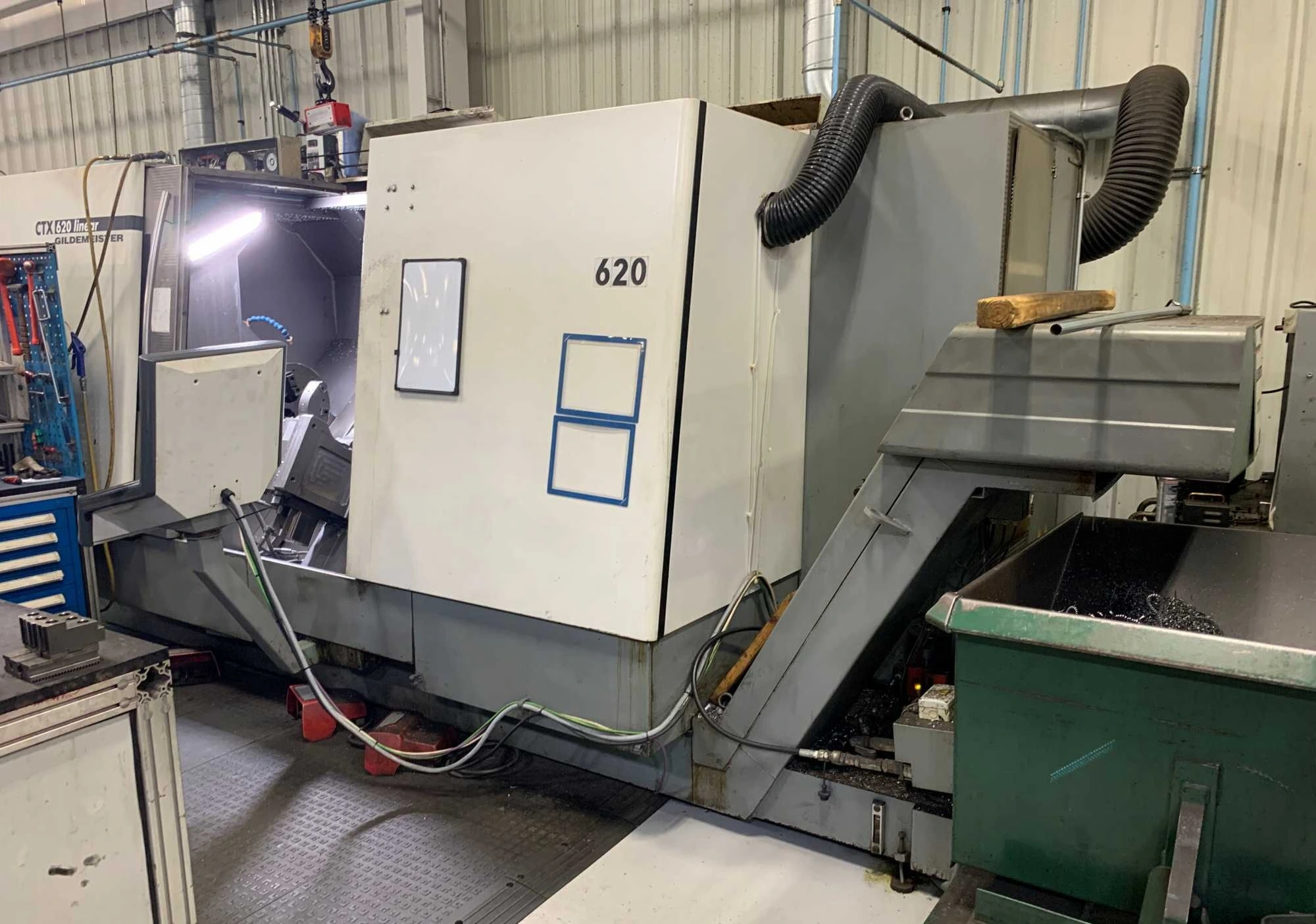

USED 2005 DMG GILDEMEISTER CTX620X1000
Overview
Description
CTX620X1000 DMG GILDEMEISTER CNC TURNING CENTER
W/Y-AXIS & LIVE MILLING
New 2005, Serial No 80409390300, Model CTX620X1000
Specifications
| Swing | 31.5" | 800.1 mm |
|---|---|---|
| Machining Length | 42.52" | 1,080 mm |
| # Axis | 3 | 3 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4.75" | 120.65 mm |
| Power | 44.2 hp | 33 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 23.6" | 599.44 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'Yes' | 'Yes' |
| Dimensions | 205 x 83 x 90 | 205 x 83 x 90 |
| Weight | 22000 | 22000 |
CTX620X1000 DMG GILDEMEISTER CNC TURNING CENTER
W/Y-AXIS & LIVE MILLING
New 2005, Serial No 80409390300, Model CTX620X1000
EQUIPPED WITH:
Siemens 840D CNC Control
12(+4) Position VDI 50 Turret w/Live Milling
Y-Axis - Hydraulic Tailstock - 15" 3-Jaw Chuck w/Jaws
SMW-Autoblok BHD Hydraulic Self-Centering Steady Rest
Automatic Electric Sliding Door
Pedia "TRK 30-FF-3" Coolant Filtration System w/Rolling Paper Filtering
ChipBlaster High Pressure Coolant Filtration System w/MistBlaster Mist Collector
BMF "SPE 63/30-376 Z60" Heavy-Duty Chip Conveyor
Fargo "DA93XN1/K4/FE" Electrical Transformer
Some Assorted Tool Holders
CATALOG SPECIFICATIONS:
Spindle Hole Diameter 5.3"
Bar Capacity, Maximum 4.75"
Swing Diameter, Maximum 31.5"
Swing Over Saddle, Maximum 19.68"
Turning Diameter, Maximum 23.6/19.6"
Turning Length, Maximum 42.52"
Transverse Stroke 15.06"
Longitudinal Stroke 43.21"
Y-Axis Stroke 2.55"
Spindle Speed, Range 20 to 2500 RPM
Motorized Tool Speed, Range 1 to 3500 RPM
C-Axis Speed, Range 0 to 100 MIN-1
X, Z-Axis Rapid Travers 1771 IPM
YAxis Rapid Traverse 32.8 IPM
Tailstock Stroke, Automatic 43.31"
Tailstock Quill Diameter 4.72"
Tailstock Quill Shaft 5 MT
Tailstock Quill Travel 5.9"
Main Drive Motor Horsepower 44.2 HP
Dimensions w/Chip Conveyor, L x W x H 205" x 83" x 90"
Weight Approximately 22,000 LBS
F.O.B. OUR WAREHOUSE
