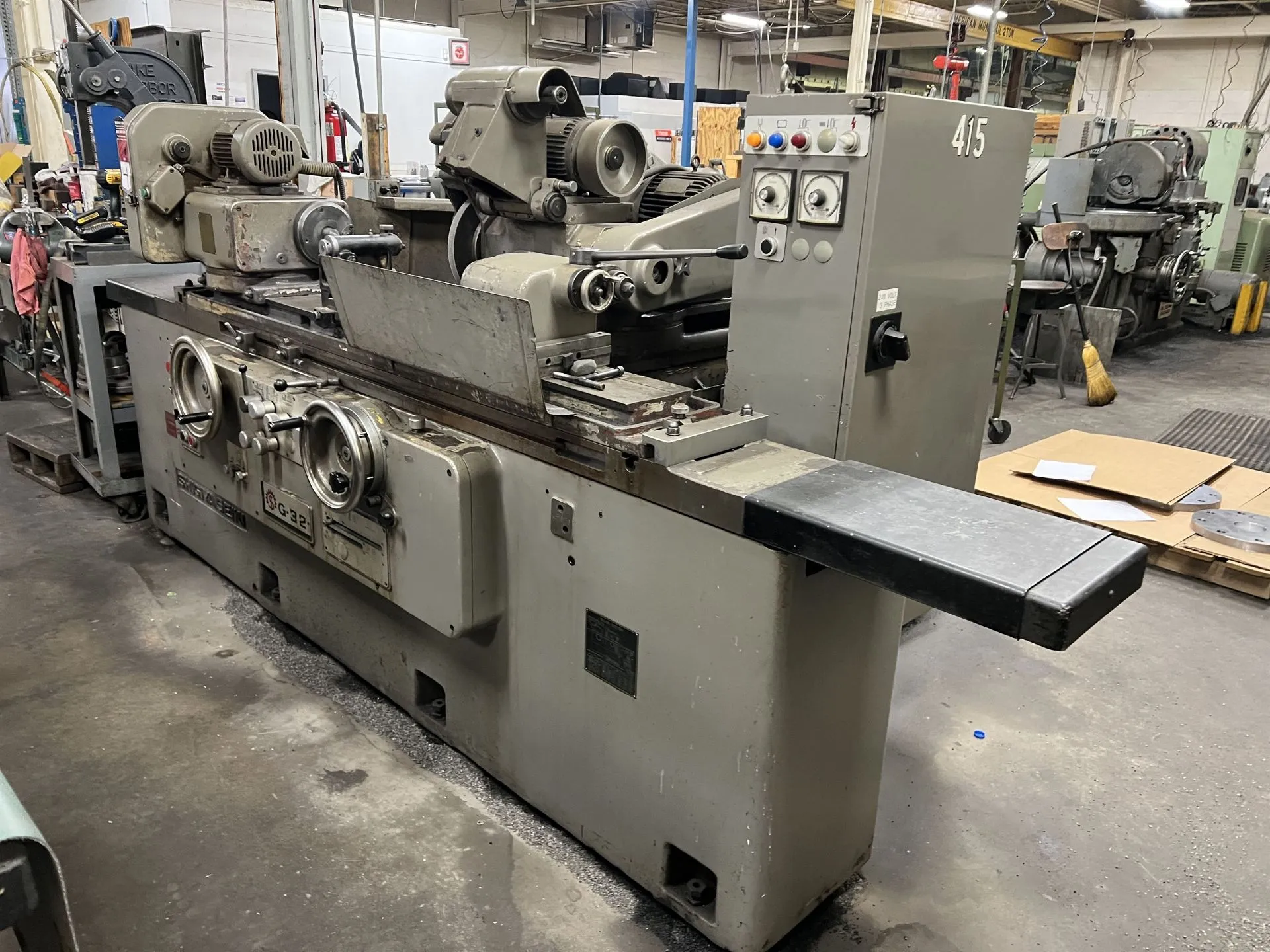

USED SHIGIYA GUA-32-100

12.6" x 40" SHIGIYA AUTOMATIC INFEED HYDRAULIC

UNIVERSAL CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT

Serial No 5976, Model GUA30-100,

12.6" x 40" SHIGIYA AUTOMATIC INFEED HYDRAULIC
UNIVERSAL CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT
Serial No 5976, Model GUA30-100,

EQUIPPED WITH:
Swing Down Internal Attachment
Automatic Grinding Cycle Including: Rapid Wheel
Approach, Automatic Infeed, Automatic Sizing
Spark-Out And Wheel Rapid Retract, Plunge
Swivelling Workhead W Live/Dead Spindle
Table Mounted Dresser
Coolant System

CATALOGUE SPECIFICATIONS:
Swing Over Table, Maximum 12.6"
Grinding Diameter, Maximum 11"
Distance Between Centers, Nominal 40"
Max. Workpiece Weight 287 LBS
Grinding Wheel Diameter, Standard 14"
Grinding Wheel Width, Standard 1" to 2"
Grinding Wheel Hole Diameter 5"
Work Table Stroke 46"
Wheelhead Stroke, Maximum 8.66"
Tailstock Spindle Stroke 1.18"
Tailstock Spindle Taper #4MT
Table Swivel Range 10-DEGREES
Workhead Swivel 120 DEGREES
Longitudinal Table Feed, Range .16 to 10 FPM
Workhead Spindle Speeds, Range 20 to 380 RPM
Grinding Wheelhead Spindle Motor 5 HP
Workhead Spindle Motor 0.4 HP
Electrical Requirements 230/460/3/60
Weight, Approximately 6850 LBS
F.O.B. OUR WAREHOUSE
