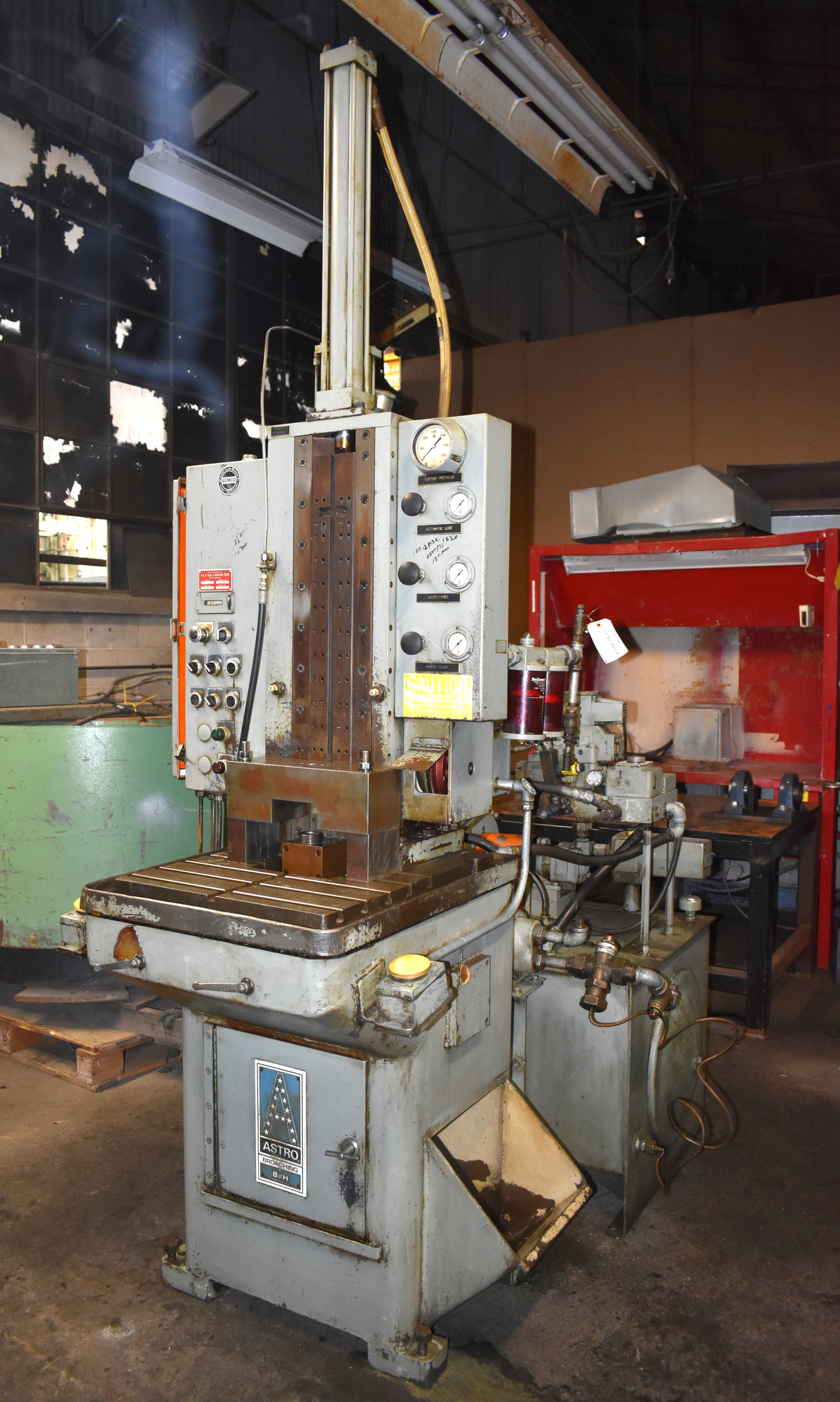

USED ASTRO (B&H) ABV-24-70

4 TON ASTRO (B&H) VERTICAL HYDRAULIC BROACH

Serial No. 30030-126, Model ABV24-70

4 TON ASTRO (B&H) VERTICAL HYDRAULIC BROACH
Serial No. 30030-126, Model ABV24-70

EQUIPPED WITH:
15 HP Vickers Hydraulic System
Power Clamping
Stroke Counter
Dual Palm Button Controls
Hydraulic Cutting Pressure Gauge
"Dial-In" Stroke Control
Trabon Automatic Lube System w/Clamp Pressure
And Accessory Regulator And Gages
Coolant System (Built-In)

CATALOG SPECIFICATIONS:
Tonnage Capacity .......... 4 TONS
Maximum Stroke Length .......... 24"
Ram Travel, Adjustable .......... 2" to 26"
Cutting Speed, Variable .......... 0 to 70 FPM
Return Speed .......... 140 FPM
Slide Width .......... 4"
Slide Length .......... 36"
Oil Reservoir Capacity .......... 80 GALLONS
Coolant Reservoir Capacity .......... 20 GALLONS
Motor Horsepower/RPM 15 HP/1750 RPM
Electrical System 208-230/460/3/60
Overall Dimensions, W x D .......... 3'10" x 5'6"
Overall Height .......... 9'2"
Weight, Approximately .......... 3000 LBS
F.O.B. OUR WAREHOUSE
Tonnage Capacity: 4 TONS
Maximum Stroke Length: 24"
Ram Travel, Adjustable: 2" to 26"
Cutting Speed, Variable: 0 to 70 FPM
Return Speed: 140 FPM
Slide Width: 4"
Slide Length: 36"
Oil Reservoir Capacity: 80 GALLONS
Coolant Reservoir Capacity: 20 GALLONS
Overall Height: 9'2"
Weight, Approximately: 3000 LBS
