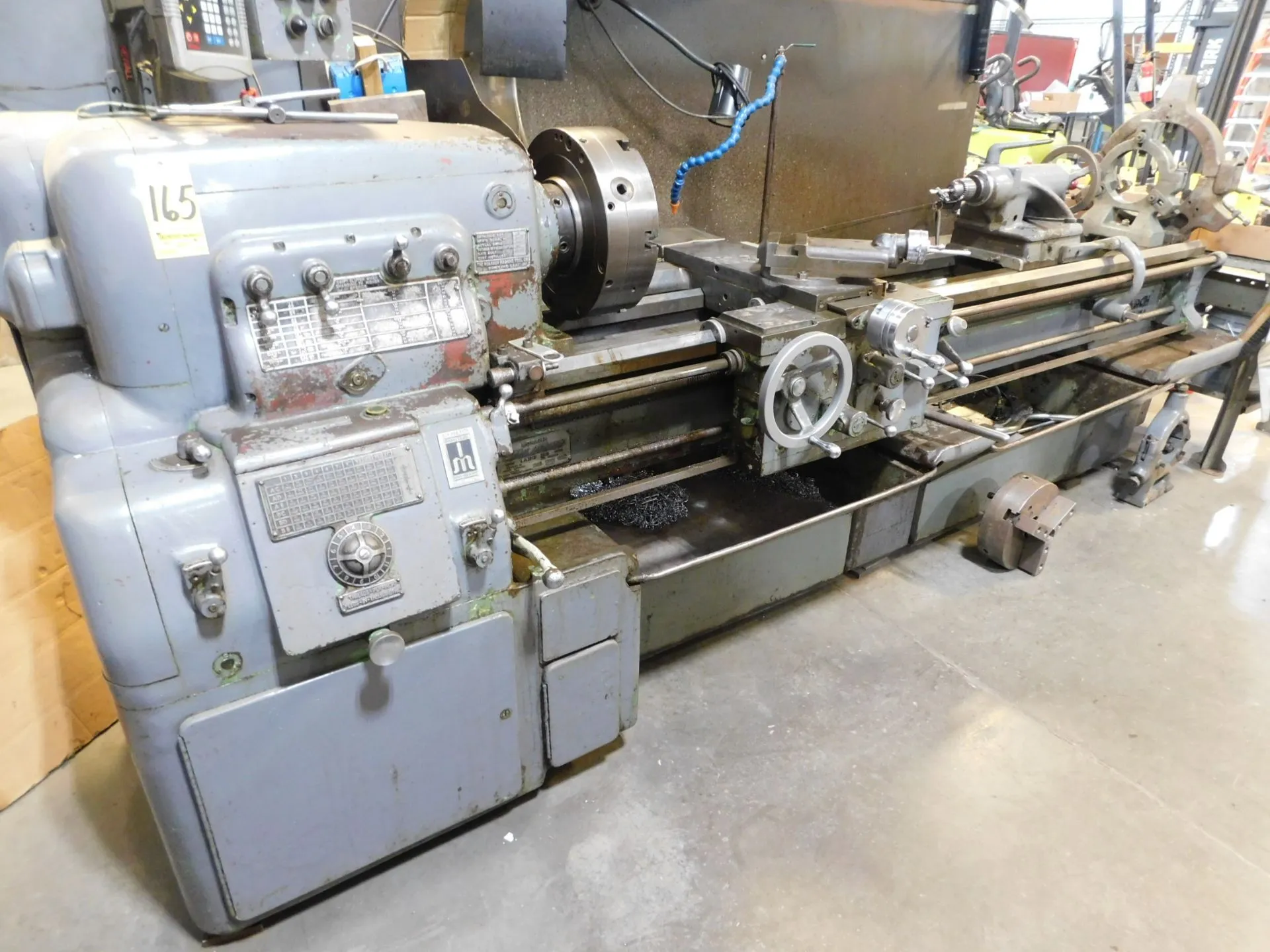

18.5" x 78" MONARCH "TOOLMAKERS" ENGINE LATHE w/DRO
Serial No 36486, Series 60 Toolmakers
| Swing | 18.5" | 469.9 mm |
| Centers | 78" | 1,981.2 mm |
| Spindle Bore | 1.56" | 39.624 mm |
| RPM | 700 RPM | 700 RPM |
| Swing Over Cross Slide | 10.5" | 266.7 mm |
| Dimensions | 12'2" x 3'8" | 12'2" x 3'8" |
| Weight | 4730 | 4730 |
18.5" x 78" MONARCH "TOOLMAKERS" ENGINE LATHE w/DRO
Serial No 36486, Series 60 Toolmakers
EQUIPPED WITH:
C80 Newall 2-Axis Digital Readouts
16" 6-Jaw Chuck w/Jaws
12" 3-Jaw Chuck
(3) Steady Rests
Hard Ways
(2) Removeable Coolant-Chip Pan
CATALOG SPECIFICATIONS:
Hole Thru Spindle .......... 1.56"
Swing Over Bed Ways Catalog .......... 16"
Swing Over Bed Ways Actual .......... 18.5"
Swing Over Cross-Slide .......... 10.5"
Distance Between Centers .......... 78"
Top-Slide Cross-Feed Travel .......... 3.75"
Tailstock, Spindle Diameter .......... 3.125"
Tailstock, Spindle Travel .......... 6"
(16) Spindle Speeds, Range .......... 17 to 700 RPM
(66) Carriage Longitudinal Feeds .......... .0014 to .0841 IPR
(66) Thread Changes, Range .......... 2 to 120 TPI
Floor Space Required L x D .......... 12'2" x 3'8"
Weight Approximately .......... 4730 LBS
Note: This Machine Has Shifting Problems In The Headstock. Selling As Is.
F.O.B. OUR WAREHOUSE
Swing Over Cross-Slide: 10.5"
Distance Between Centers: 78"
Top-Slide Cross-Feed Travel: 3.75"
Tailstock, Spindle Diameter: 3.125"
Tailstock, Spindle Travel: 6"
(16) Spindle Speeds, Range: 17 to 700 RPM
(66) Carriage Longitudinal Feeds: 0014 to .0841 IPR
(66) Thread Changes, Range: 2 to 120 TPI
Weight Approximately: 4730 LBS
Hole Thru Spindle: 1.56"
