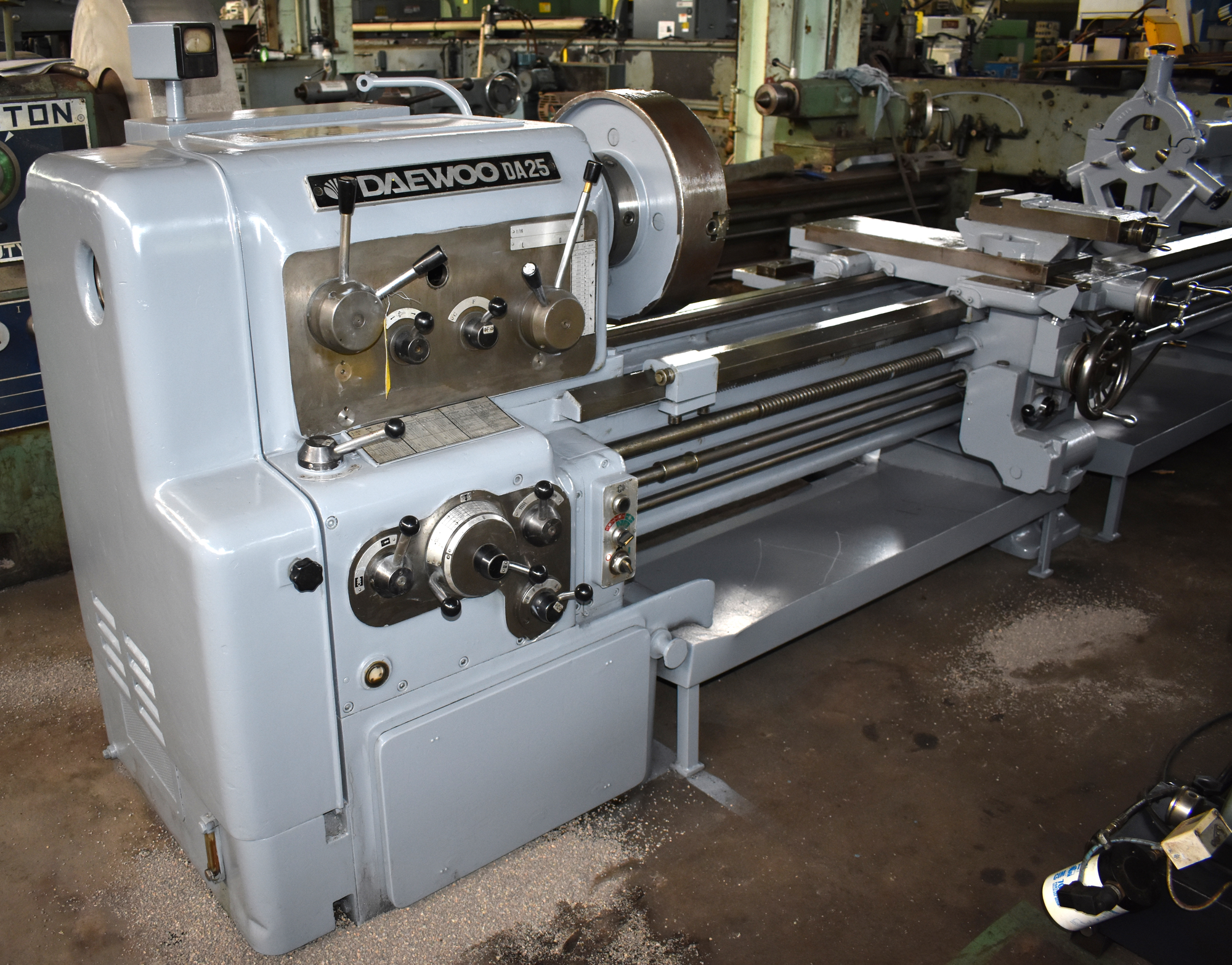

25" x 120" DAEWOO-IKEGAI HIGH SPEED PRECISION
ENGINE LATHE W/TAPER ATTACHMENT
Serial No. 040059, Model DA25
| Swing | 25" | 635 mm |
| Centers | 120" | 3,048 mm |
| Spindle Bore | 2.2" | 55.88 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| Swing Over Cross Slide | 15.5" | 393.7 mm |
| Weight | 10250 | 10250 |
25" x 120" DAEWOO-IKEGAI HIGH SPEED PRECISION
ENGINE LATHE W/TAPER ATTACHMENT
Serial No. 040059, Model DA25
EQUIPPED WITH:
Taper Attachment
2.2" Hole Thru Spindle
Inch-Metric Threading Capabilities - Steady Rest
Threading Dial - Power Rapid Traverse (4-Way)
18" 4-Jaw Chuck w/Jaws - Hardened & Ground Bed Ways
CATALOG SPECIFICATIONS:
Hole Thru Spindle .......... 2.2"
Swing Over Bed Ways, Rated .......... 25"
Swing Over Bed Ways, Actual .......... 24.4"
Swing Over Carriage .......... 15.5"
Distance Between Centers .......... 120"
(20) Spindle Speeds, Range .......... 25 to 2000 RPM
(44) Longitudinal Feeds, Range .......... .0067 to .0957 IPR
(44) Longitudinal Feeds, Range .......... .17 to 2.43 MM/R
(44) Cross Feeds, Range .......... .06 to .83 MM/R
(44) Cross Feeds, Range .......... .0024 tp .0033IPR
(40) Whitworth Thread Changes, Range .......... 2 to 28 TPI
(55) Metric Thread Changes, Range .......... 1 to 224 MM
(42) Module Thread Change, Range .......... .25 to 56 MM
Lead Screw Pitch .......... 2 THREAD/INCH
Lead Screw Pitch .......... 12 THREAD/MM
Motor Horsepower .......... 15 HP
Electrical System .......... 220-440/3/60
Weight Approximately .......... 10250 LBS
PRICE: F.O.B. OUR WAREHOUSE
Hole Thru Spindle: 2.2"
Swing Over Carriage: 15.5"
Distance Between Centers: 120"
(20) Spindle Speeds, Range: 25 to 2000 RPM
(44) Longitudinal Feeds, Range: 0067 to .0957 IPR
(44) Longitudinal Feeds, Range: 17 to 2.43 MM/R
(44) Cross Feeds, Range: 06 to .83 MM/R
(44) Cross Feeds, Range: 0024 tp .0033IPR
Lead Screw Pitch: 2 THREAD/INCH
Lead Screw Pitch: 12 THREAD/MM
Motor Horsepower: 15 HP
Electrical System: 220-440/3/60
Weight Approximately: 10250 LBS
