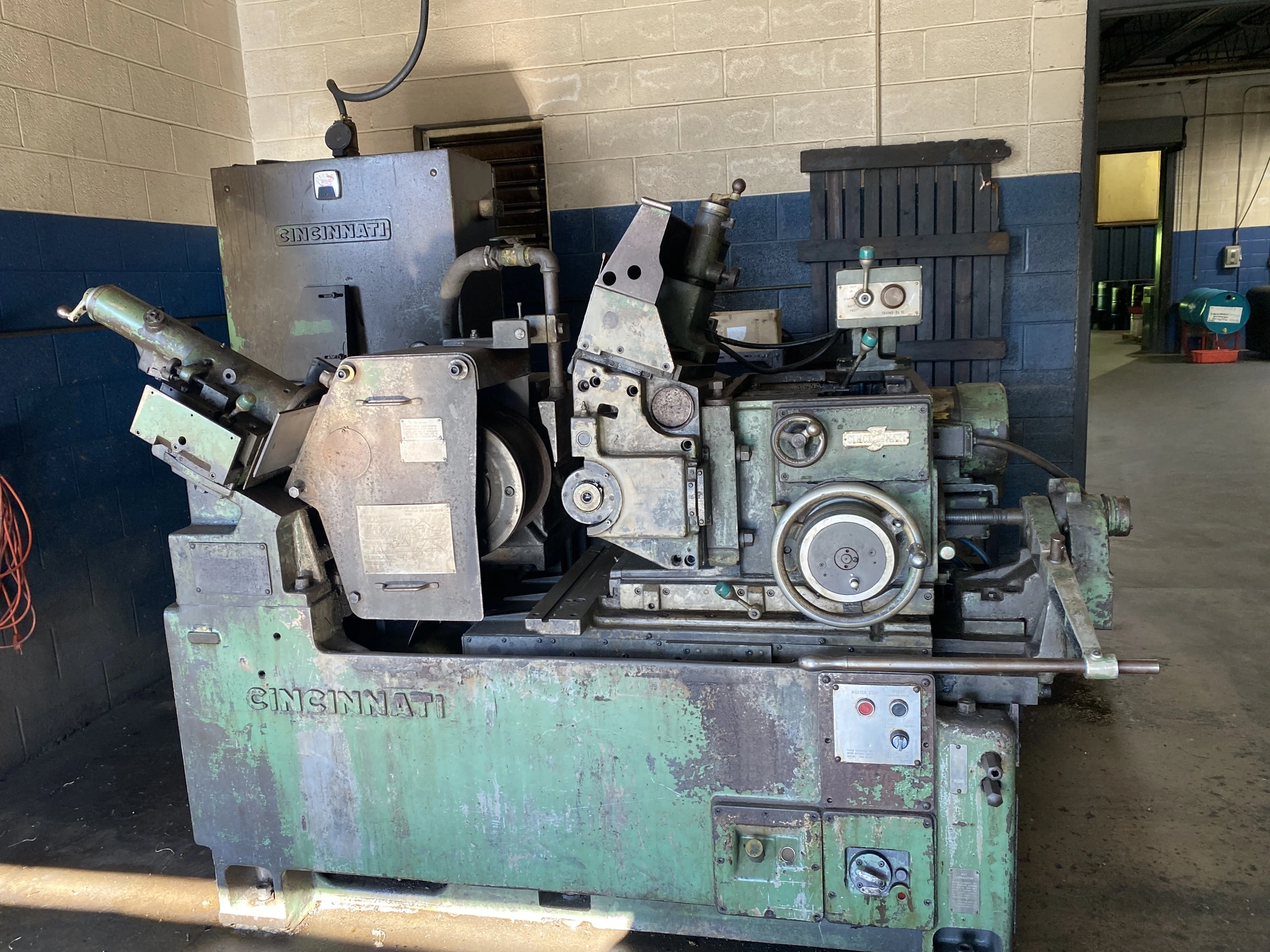

USED CINCINNATI MILACRON 220-8

#220-8 CINCINNATI-MILACRON CENTERLESS GRINDER

Serial No 2M8H5M-152, Model 220-8, Ltr LR,

#220-8 CINCINNATI-MILACRON CENTERLESS GRINDER
Serial No 2M8H5M-152, Model 220-8, Ltr LR,

EQUIPPED WITH:
Hand Regulating Wheel Slide Infeed Unit
Hydraulic Grinding Wheel Profile Diamond Truing
Hydraulic Regulating Wheel Profile Diamond Truing

CATALOG SPECIFICATIONS:
Diameter Capacity, Nominal .......... 0" to 3"
Diameter Capacity, Maximum .......... 4.5"
Grinding Wheel Diameter, Minimum .......... 15"
Grinding Wheel Diameter, Maximum .......... 20"
Grinding Wheel Width, Maximum .......... 8"
Grinding Wheel Hole Diameter .......... 12"
Regulating Wheel Diameter, Minimum .......... 9.75"
Regulating Wheel Diameter, Maximum .......... 13"
Regulating Wheel Width, Maximum .......... 8"
Regulating Wheel Hole Diameter .......... 5"
Regulating Wheel Speeds, Low Range .......... 15 to 56 RPM
Regulating Wheel Speeds, High Range .......... 56 to 300 RPM
Grinding Wheel Motor, Horsepower .......... 20 HP
Regulating Wheel Motor, Horsepower .......... 1.5 HP
Electrical System .......... 220-440/3/60
Floor Space Required, W x D .......... 10'10" x 7'11"
Weight, Approximately .......... 13000 LBS

NOTE: Missing outboard support for regulating spindle wheel.
F.O.B. OUR WAREHOUSE
Diameter Capacity, Nominal: 0" to 3"
Diameter Capacity, Maximum: 4.5"
Grinding Wheel Diameter, Minimum: 15"
Grinding Wheel Diameter, Maximum: 20"
Grinding Wheel Width, Maximum: 8"
Grinding Wheel Hole Diameter: 12"
Regulating Wheel Diameter, Minimum: 9.75"
Regulating Wheel Diameter, Maximum: 13"
Regulating Wheel Width, Maximum: 8"
Regulating Wheel Hole Diameter: 5"
Grinding Wheel Motor, Horsepower: 20 HP
Regulating Wheel Motor, Horsepower: 1.5 HP
Electrical System: 220-440/3/60
Weight, Approximately: 13000 LBS
