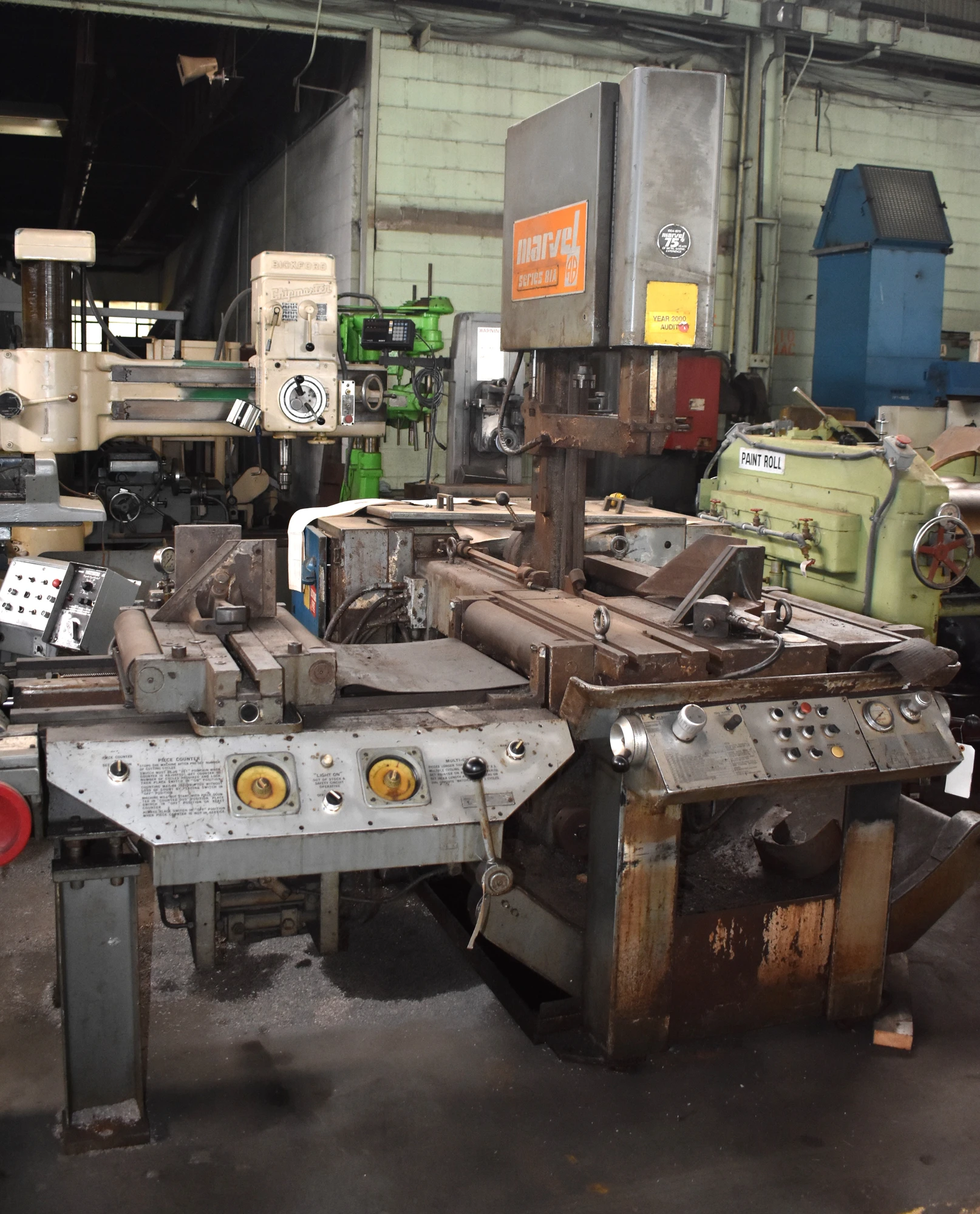

USED MARVEL 81A8/M5/M8

81A8/M5/M8 MARVEL UNIVERSAL TILTING HEAD

AUTOMATIC VERTICAL BAND SAW

Serial No. E323388, Model 81A8/M5/M8

81A8/M5/M8 MARVEL UNIVERSAL TILTING HEAD
AUTOMATIC VERTICAL BAND SAW
Serial No. E323388, Model 81A8/M5/M8

EQUIPPED WITH:
10' Automatic Hydraulic Shuttle Feed Loading Table
w/Multi-Cycle Cutting & Piece Counter
10' Unloading Conveyor Table
1-1/4" Blade Width (M5)
"Sure-Line" Automatic Blade Controller
Hydraulic Vise Clamping
Scraper Type Motorized Powered Chip Conveyor (M8)

CATALOG SPECIFICATIONS:
Capacity, Nominal . . . . . . . . . 18" x 20"
Capacity 45 Degree Blade Angle, Left . . . . . . . . . 18" x 11-1/2"
Capacity 45 Degree Blade Angle, Right . . . . . . . . . 18" x 13-1/2"
Automatic Feed Length Maximum, One Index . . . . . . . . . 24"
Table Working Surface, W x L . . . . . . . . . 30" x 33"
Shuttle Load Capacity . . . . . . . . . 7000 LBS
Vise Opening, Maximum . . . . . . . . . 21-1/2"
Blade Length . . . . . . . . . 14'6"
Blade Width . . . . . . . . . 1-1/4"
Blade Thickness . . . . . . . . . .042"
Blade Speeds, Infinitely Variable . . . . . . . . . 60 to 400 FPM
Feed Range, Infinitely Variable . . . . . . . . . 0 to 300 LBS
Main Motor Horsepower . . . . . . . . . 10 HP
Floor Space Required, L x W . . . . . . . . . 20' x 7'4"
Overall Height . . . . . . . . . 7'6"
Weight, Approximately . . . . . . . . . 8750 LBS
F.O.B. OUR WAREHOUSE
Capacity, Nominal: 18" x 20"
Shuttle Load Capacity: 7000 LBS
Vise Opening, Maximum: 21-1/2"
Blade Length: 14'6"
Blade Width: 1-1/4"
Blade Thickness: 042"
Blade Speeds, Infinitely Variable: 60 to 400 FPM
Feed Range, Infinitely Variable: 0 to 300 LBS
Main Motor Horsepower: 10 HP
Overall Height: 7'6"
Weight, Approximately: 8750 LBS
