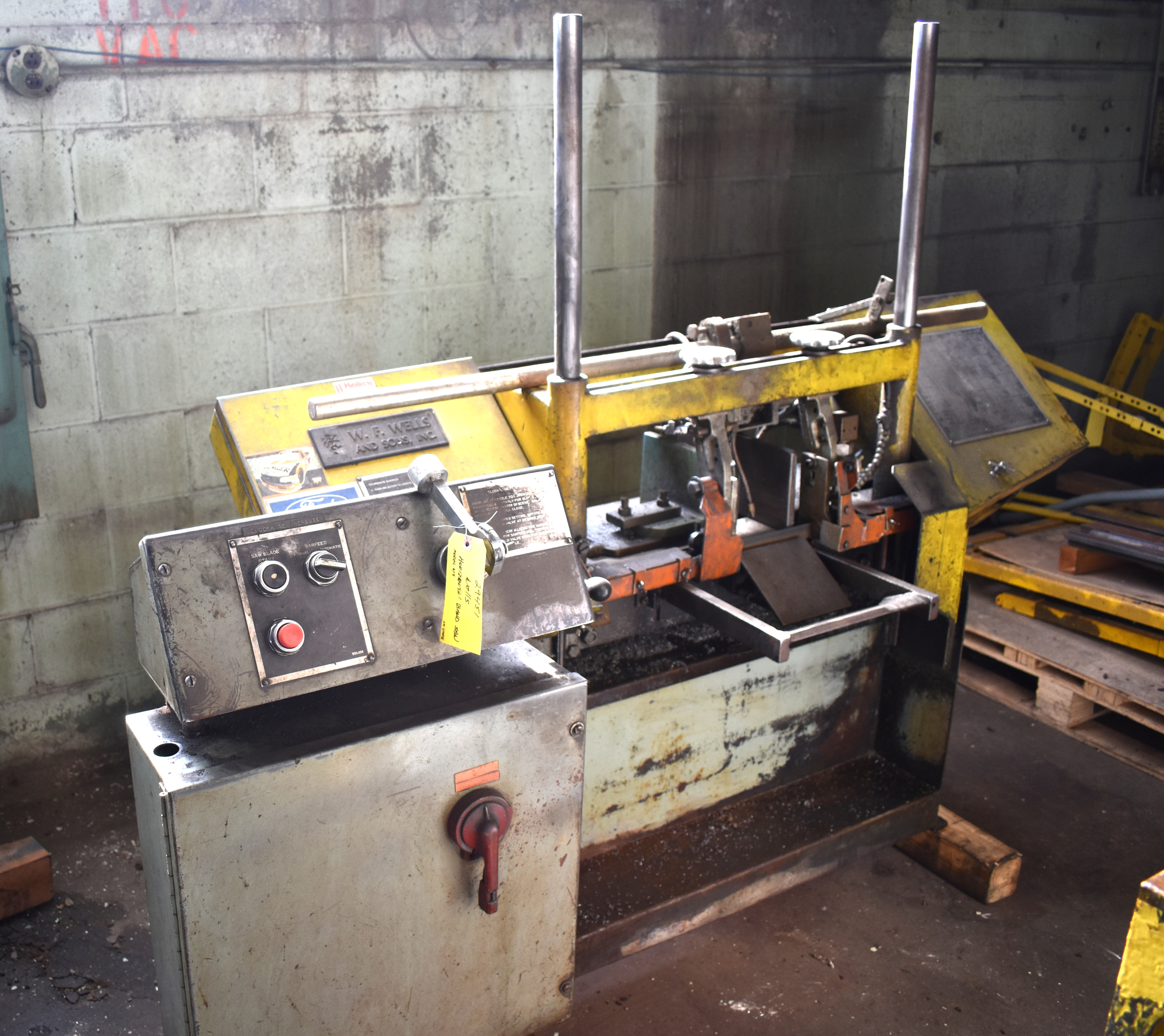

9" x 18" WELLS (WF) AUTOMATIC HORIZONTAL BAND SAW
Serial No 803490, Model W9
| Rect-Cap (H) | 9" | 228.6 mm |
| Rect-Cap (W) | 18" | 457.2 mm |
| Rounds-Cap | 9" | 228.6 mm |
| Square-Cap | 9" | 228.6 mm |
| Power | 1 hp | 0.7 kW |
| Type (Auto, Manual, Semi) | Manual | Manual |
| Blade Width | 0.75" | 19.05 mm |
| Blade Thickness | 0.032" | 0.8128 mm |
| Blade Length | 138" | 3,505.2 mm |
| Dimensions | 66 x 35 | 66 x 35 |
| Weight | 700 | 700 |
9" x 18" WELLS (WF) AUTOMATIC HORIZONTAL BAND SAW
Serial No 803490, Model W9
EQUIPPED WITH:
Manual Rotating Clamping Vise
Hydraulic Band Saw Up-Feed and Down-Feed
Coolant Tank
CATALOG SPECIFICATIONS:
Round Stock Capacity, Maximum .......... 9"
Flat Stock Capacity, Maximum .......... 9" x 18"
Flat Stock Capacity, 45-Degree .......... 9" x 6"
Clearance Under Blade, Maximum 16"
Band Length .......... 11'6"
Band Width .......... 3/4"
Band Thickness .......... .032"
Band Carrier Wheels, Diameter .......... 14.5"
Band Speeds, Infinitely Variable .......... 60 to 300 FPM
Load Capacity, Maximum .......... 2000 LBS
Blade Cutting Force, Range .......... 20 to 80 LBS
Blade Motor, Horsepower .......... 1 HP
Hydraulic Motor, Horsepower .......... 1/3 HP
Floor Space Required, L x W .......... 5'6" x 2'11"
Overall Height .......... 5'
Weight, Approximately .......... 700 LBS
F.O.B. OUR WAREHOUSE
Round Stock Capacity, Maximum: 9"
Flat Stock Capacity, Maximum: 9" x 18"
Flat Stock Capacity, 45-Degree: 9" x 6"
Band Length: 11'6"
Band Width: 3/4"
Band Thickness: 032"
Band Carrier Wheels, Diameter: 14.5"
Band Speeds, Infinitely Variable: 60 to 300 FPM
Load Capacity, Maximum: 2000 LBS
Blade Cutting Force, Range: 20 to 80 LBS
Blade Motor, Horsepower: 1 HP
Hydraulic Motor, Horsepower: 1/3 HP
Overall Height: 5'
Weight, Approximately: 700 LBS
