USED 2020 CLEAVER BROOKS CBEX-E700-700-150ST

Overview

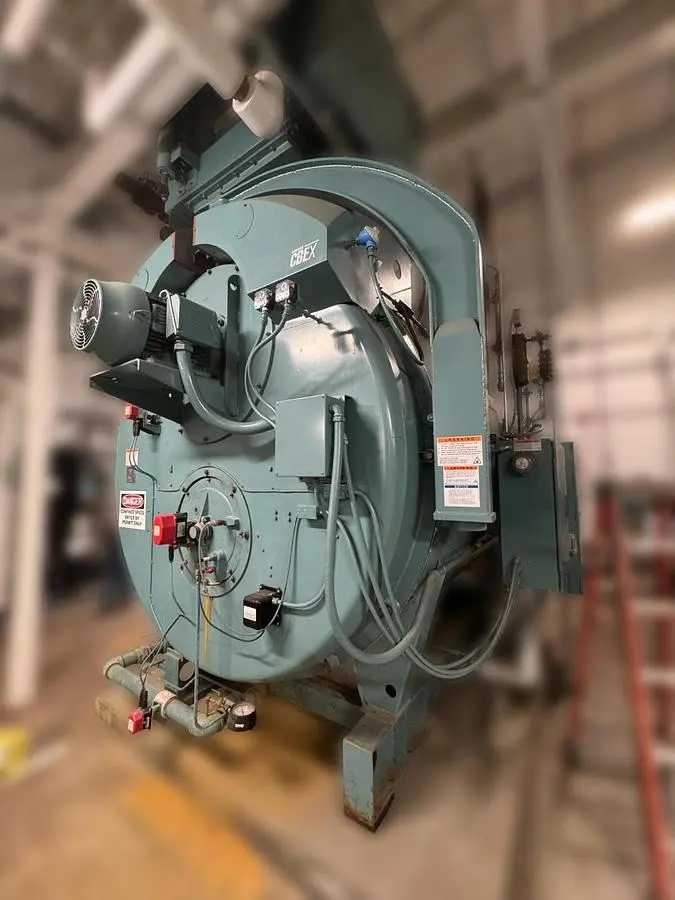

This used 700 HP Cleaver Brooks CBEX-E700-700-150ST Packaged High Pressure Steam Boiler is built for heavy-duty, high-demand steam applications in large industrial facilities. Featuring Cleaver Brooks' cutting-edge CBEX Elite design, this unit offers unmatched efficiency and performance for processes that require consistent, reliable steam generation. Manufactured in 2020, this boiler represents one of the latest in the CBEX series with a high gross output of 23,533,000 BTU/hr, ideal for rigorous industrial use.

Design and Performance

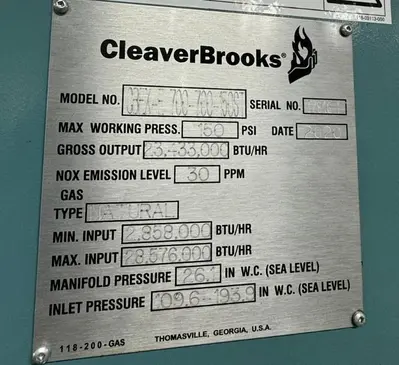

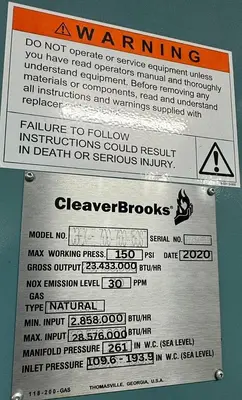

Horsepower: 700 HP

Model: CBEX-E700-700-150ST

Gross Output: 23,533,000 BTU/hr

Fuel Type: Natural Gas

NOx Emission Level: 30 PPM (Low NOx emissions)

Max Input Capacity: 28,576,000 BTU/hr

Min Input Capacity: 2,858,000 BTU/hr

Max Working Pressure: 150 PSI

Manifold Pressure: 26.1 in. W.C. (Sea Level)

Inlet Pressure: 10.9 - 19.3 in. W.C. (Sea Level)

Year Built: 2020

Serial Number: L87763

Certification: UL Listed Gas-Fired Boiler Assembly

Ideal Applications

Large Manufacturing Plants
Petrochemical Facilities
Food and Beverage Processing Plants
Pharmaceutical Manufacturing
Institutional District Heating Systems
Pulp and Paper Mills
Large-Scale Process Steam Requirements

Benefits

✓ High-capacity steam production for demanding industrial applications
✓ Ultra-low NOx emissions for environmental compliance
✓ Advanced Cleaver Brooks CBEX Elite technology for maximum efficiency
✓ Packaged design for easier transport and installation
✓ Natural gas operation for clean, cost-effective fuel usage
✓ Manufactured in Thomasville, Georgia, USA for top build quality

Additional Information

Condition: Used

Manufacturer: Cleaver Brooks

Manufacturing Location: Thomasville, Georgia, USA

Model: CBEX-E700-700-150ST

Serial Number: L87763

Boiler Type: Packaged High Pressure Steam Boiler
