USED GLEASON 13A

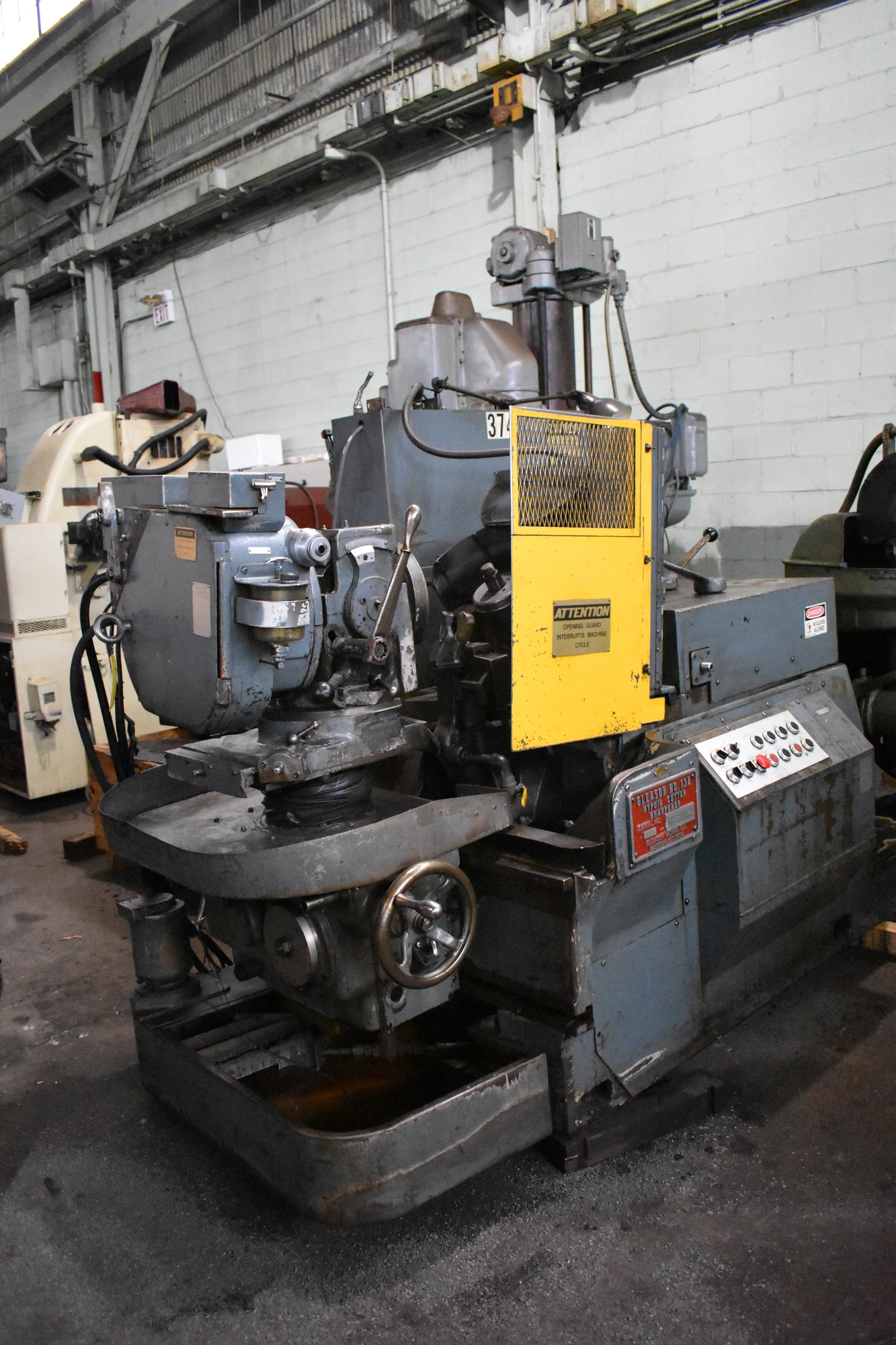

13A GLEASON Universal Hypoid Cutter Sharpening Machine
Serial #117302
Suitable for the full automatic sharpening of spiral bevel cutters from
1.3” to 21” diameter, as employed on the GLEASON 5-cut methodology
spiral bevel gear generators, as well as cutters for GLEASON straight bevel
" Revacycle" machines, and disc-type interlocking cutters for 104 and 114
“Coniflex” straight bevel generating machines

EQUIPMENT / FEATURES:
Base machine complete with splash guards, covers
Complete coolant system pump, tank, and piping
One (1) index plate (72-T)
(additional index plates available at extra cost)
One (1) adaptor for large diameter cutters
“Long-throw” feed cam (1.625” travel) Part #45620180 for larger diameter cutters
Rotating diamond wheel dresser
Diamond setting gauge
Automatic stop
Self contained hydraulic system
Full complement of electrics (motors/controls)
for 230/460 volt, 3-phase, 50/60 cycle operation

PRINCIPAL SPECIFICATIONS:
Diameter of spiral bevel cutters …………………………………. 3.5” to 18” (89 to 457mm)
Diameter of revacycle cutters ………………………………….... 16” & 18” (406, 457mm)
Diameter of Coniflex cutters …………………………………….. 9” & 15” (229, 381mm)
Stock removed per cycle (roughing) ……………………………. .007" (0.18mm)
Stock removed per cycle (finishing) …………………………….. .002” (0.05mm)
Grinding time per blade ………………………………………….. 5 seconds
Type of wheel utilized ……………………………………………. Disc-Type 30-degree bevel
Size of wheel ……………………………………………………… 12"x .75" (305x19mm)
Grinding wheel bore diameter ................................................. 4" (101.6mm)
Wheel drive motor .....................………………………………… 2 HP - 1800 rpm
Feed drive motor .......................………………………..………. 1 HP - 1800 rpm
Coolant pump motor ........................…………………………… .25 HP - 3600 rpm
Hydraulic unit motor ........................………………………….... 2 HP - 1200 rpm
Floor space required ....................……………………………… 48"x 91" (1240x2310mm)
Machine approximate net weight .......…………………………. 9,000 Lbs. (4083 kGs)

PRICE: F.O.B. OUR WAREHOUSE
in condition “As Taken From Service”
