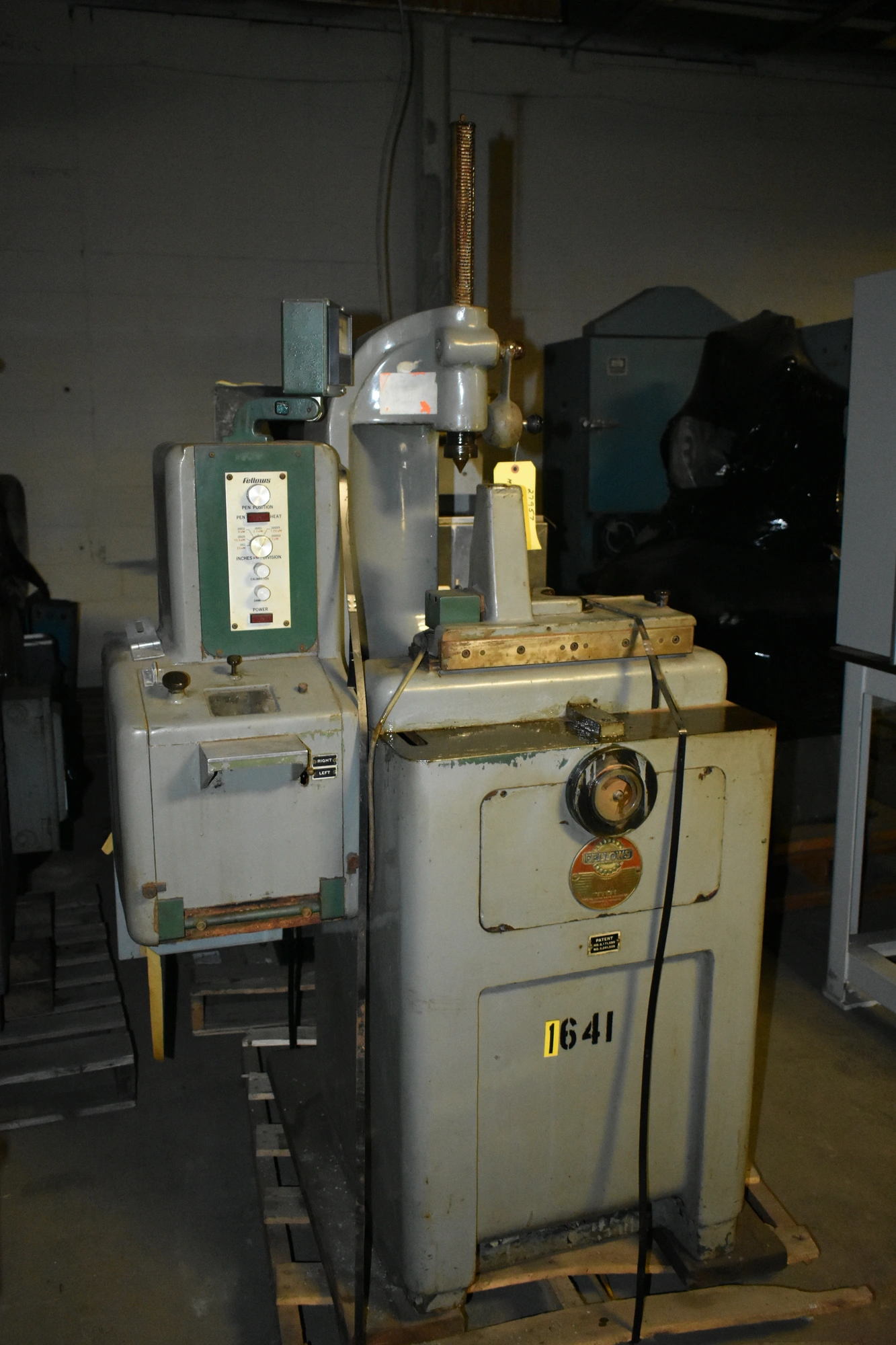

USED FELLOWS 12M
Overview
12M FELLOWS INVOLUTE GEAR INSPECTION MEASURING MACHINE
Serial No. 28896, Model 12M
Specs
12M FELLOWS INVOLUTE GEAR INSPECTION MEASURING MACHINE
Serial No. 28896, Model 12M
EQUIPPED WITH:
Support Column w/Adjustable Tailstock & Live
Tailstock Center
Gauging
Heated Pen Positioning
CATALOG SPECIFICATIONS:
Maximum Pitch Diameter 12"/(305mm)
Maximum Travel Pointer Holder 9.75"/(248mm)
Maximum Travel Work Spindle (Elevation) 4"/(102mm)
Maximum Tailstock Adjustment 26.5"/(762mm)
Maximum Workpiece Weight 350 LBS.
Maximum Workpiece Weight (159 kgs)
Machine Overall Length 38"/(965mm)
Machine Overall Width 36"/(914mm)
Machine Overall Height 82"/(2083mm)
Machine Net Weight 2,220 LBS./(1007kg)
NOTES: Suitable For The Checking/Recording Of
The Deviation In Gear Tooth Involute Profile
On Spur & Helical Gears, Both Internal & External
Up To 12" (304.8mm) Pitch Diameter.
F.O.B. OUR WAREHOUSE
