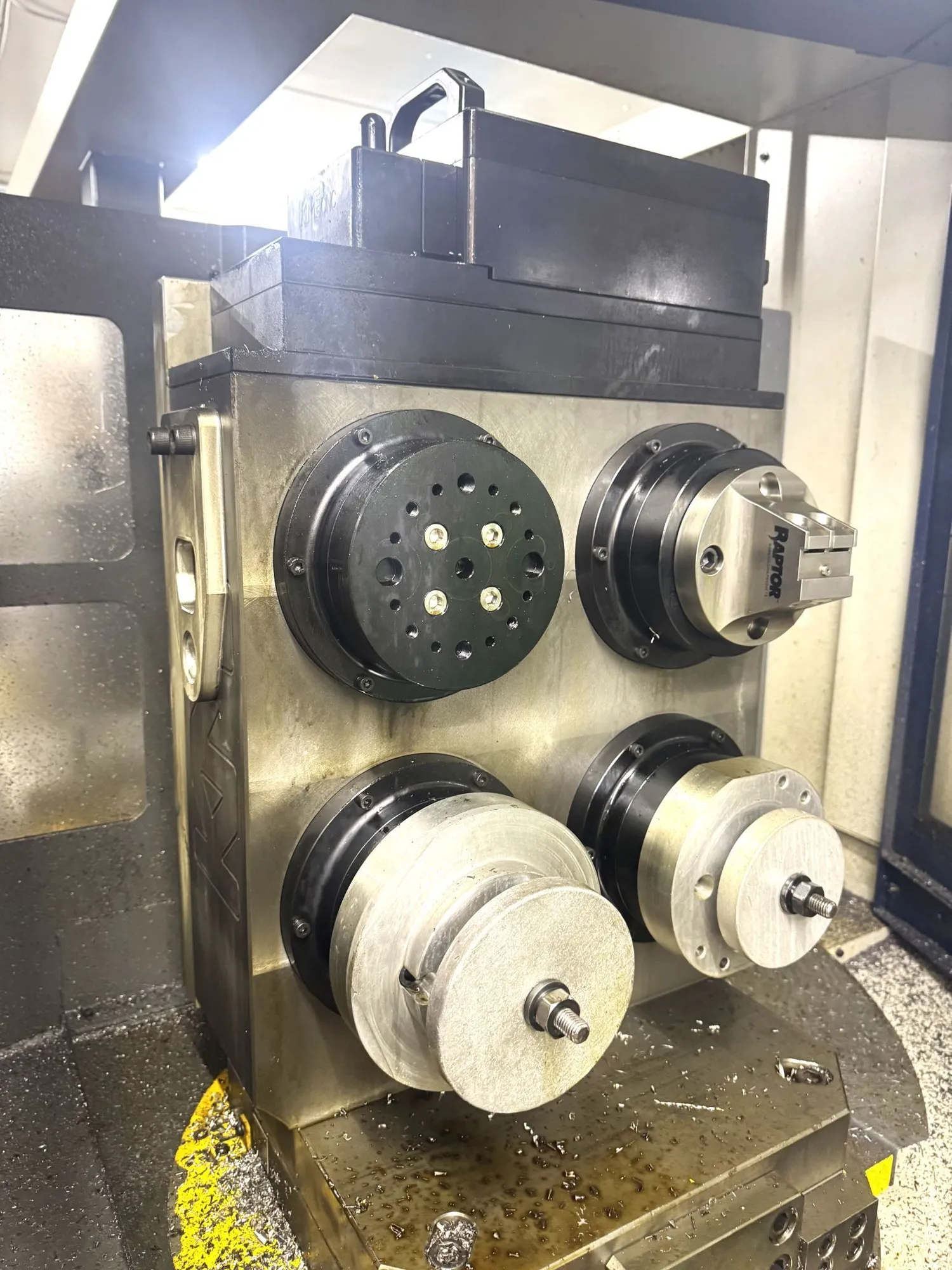

USED 2018 KME CNC TS-400MM
Overview
Description
2018 KME CNC TS-400MM 5-Axis Wireless Tombstone available. Features Meehanite cast iron construction, 4 independently rotating platters, SMART tech, and wireless control. Max part size 7", weight 100 lbs. Lightly used, huge discount over new cost - immediate availability.
Specifications
| Dimensions | 15.748" X 15.748" X 33.083" T | 15.748" X 15.748" X 33.083" T |
|---|
KME CNC TS-400MM 4-0 OFFSET TALL
RESOLUTION: 0.0018
DISTANCE BETWEEN UPPER AND LOWER PLATTERS: 10.236"
MAX ROTATION/STEP: 999.999
MAX HOLDING TORQUE: 300 FT-LB / 407N-m
ROTATING TORQUE: 45 FT-LB / 61 N-m
SIDE LOAD TORQUE: 1250 FT-LB / 1627 N-m
ACCURACY: +/- 10 ARC SEC
REPEATABILITY: +/- 5 ARC SEC
GEAR RATION: 100:1
MAX PART SIZE: 7" (177.8MM)
MAX PART WEIGHT: 100 LBS
CONSTRUCTION: MEEHANITE CAST IRON
FACEPLATE DIAMETER: 180MM
BASE SIZE: 400MM TOMBSTON
HEIGHT (TOMBSTONE): 840MM
SIGNAL: SINGLE M-CODE FUNCTION
APPROX. WEIGHT: 450 LBS
Equipped With
CONTROLLED WIRELESSLY VIA TRANSMITTER/RECEIVER MODULE (TRM)
5-AXIS SYSTEM USES "SMART" TECHNOLOGY (SAVES ALL WORK OFFSETS AND LAST POSITIONS)
FOUR (4) INDEPENDATLY ROTATING PLATTERS ON ONE (1) TOMBSTONE, WITH BACK MOUNTING CAPABILITY
(2) TOMBTONES AVAILABLE IN SAME SHOP -- PRICE IS PER INDIVIDUAL TOMBSTONE
REPLACEMENT COST FOR THIS KME CNC 4-POSITION PLATTER SYSTEM IS OVER $100,000
*** TOMBSTONES ARE COMING OFF A KIWA HMC, AND SAW VERY LITTLE USE SINCE ORIGINAL PURCHASE IN 2018.
SYSTEMS ARE IN PLANT, AND AVAILABLE FOR IMMEDIATE SALE
