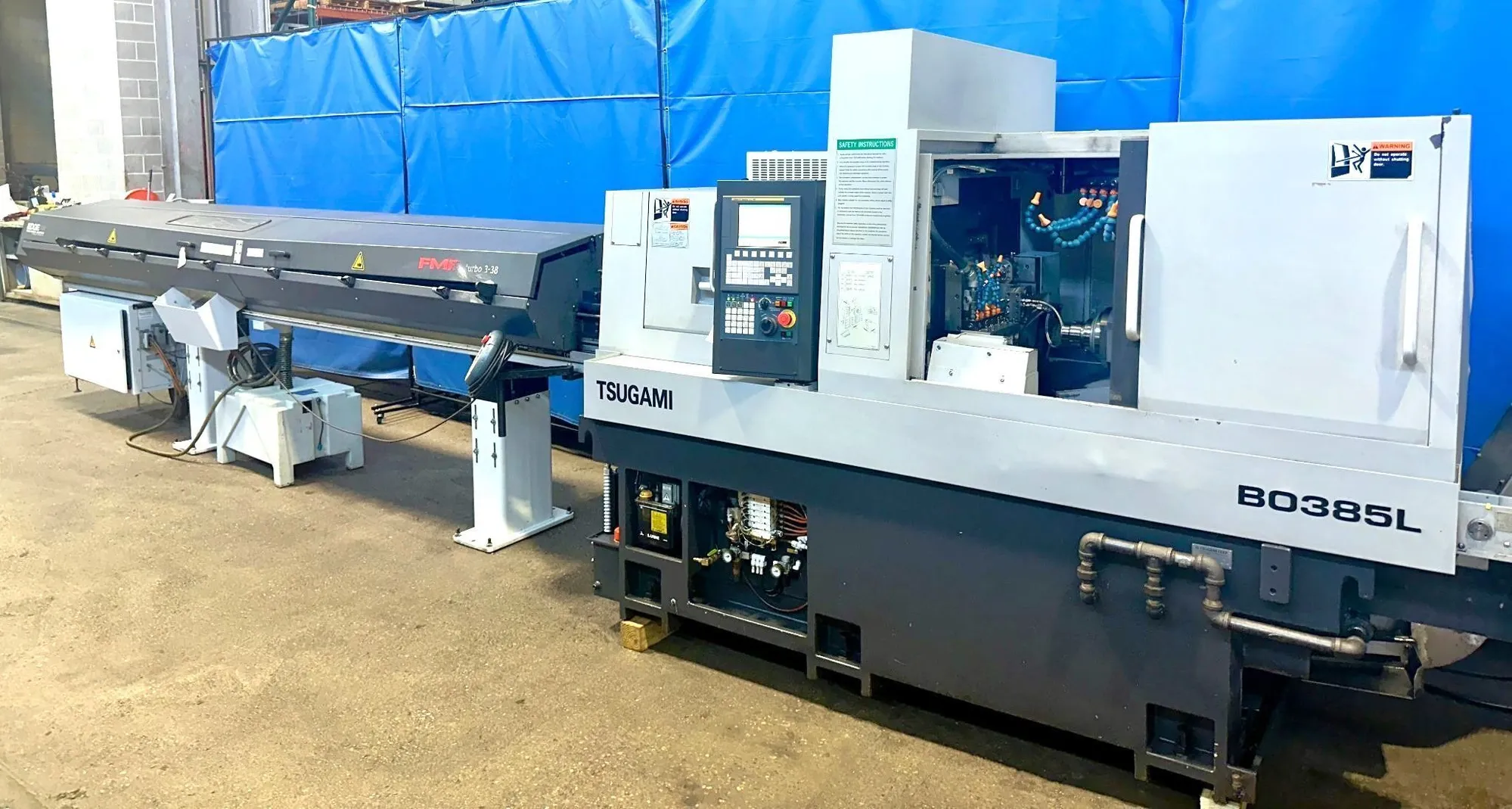

2011 TSUGAMI B0385L Swiss Screw Machine with FMB barfeeder, superb specs including 38mm bar capacity, added tooling capacity, 6,000 RPM spindle, and Fanuc CNC. Equipped with HP coolant system and chip conveyor. Power-on and cutting hours detailed. Available now.
| BAR CAPACITY | 38 mm | 1.4961" |
| MAX MACHINING LENGTH | 3.93" | 99.822 mm |
| MAX DRILLING DIAMETER | 0.5118" | 13 mm |
| MAIN SPINDLE MOTOR | 14.8 hp | 11 kW |
| MAIN SPINDLE INDEXING | FULL C-AXIS | FULL C-AXIS |
| MAIN SPINDLE SPEED | 6,000 RPM | 6,000 RPM |
| BACK SPINDLE MOTOR | 7.4 hp | 5.5 kW |
| BACK SPINDLE INDEXING | FULL C-AXIS | FULL C-AXIS |
| BACK SPINDLE SPEED | 7,000 RPM | 7,000 RPM |
| TOTAL TOOL CAPACITY (POSITIONS) | 23 | 23 |
| TOTAL LIVE TOOL CAPACITY (POSITIONS) | 5 | 5 |
| GANG SLIDE TOOL POSITIONS | 8 | 8 |
| BACK WORK TOOL POST POSITIONS | 5 | 5 |
| FRONT WORK TOOL POST POSITIONS | 5 | 5 |
| LIVE TOOL SPEEDS | 5,000 RPM | 5,000 RPM |
| CONTROLLABLE AXES | 5 | 5 |
| Dimensions | 99.2" X 52.95" X 77.56" | 99.2" X 52.95" X 77.56" |
| Weight | 10,120 LBS | 10,120 LBS |
FANUC Oi-TD CNC CONTROL
AXES: Z1, X1, YZ, X2, Z2, C1, C2
FMB TURBO 3-38 BAR FEEDER: BAR CAPACITY - 144" X 1.5"
MP SYSTEMS 1000 PSI COOLANT SYSTEM HIGH PRESSURE WATER BASED COOLANT SYSTEM
LNS TURBO CHIP CONVEYOR
INCLUDES OPTIONAL 5-POSITION FRONT DRILL HOLDER
INCLUDES OPTIONAL AR16 CROSS TOOL SPINDLE FOR REAR DRIVE
23 TOOL POSITIONS, WITH CAPACITY FOR 31 OPTIONAL TOOLS
VARIETY OF MAIN COLLETS & GUIDE BUSHINGS:
* 48 COLLETS
* 10 TOOHOLDERS (4 LIVE)
HOURS AS OF 7/31/2025 (AS IN PHOTO):
* POWER ON: 45,090 HOURS
* CUTTING TIME: 18,111 HOURS
*** REPLACEMENT COST FOR ABOVE EQUIPPED SYSTEM IF PURCHASED NEW TODAY: $300,000
MACHINE IS IN EXCELLENT CONDITION, IS IN STOCK, UNDER POWER, AVAILABLE IMMEDIATELY.
