| Spindle Size | 4" | 101.6 mm |
| X-Horiz Tvl of Table | 63" | 1,600.2 mm |
| Y-Vert Tvl of Head | 44" | 1,117.6 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,120 RPM | 1,120 RPM |
| Table-W | 49.2" | 1,249.7 mm |
| Table-L | 49.2" | 1,249.7 mm |
| Spindle Tvl. | 35.43" | 899.92 mm |
TECHNICAL SPECIFICATIONS

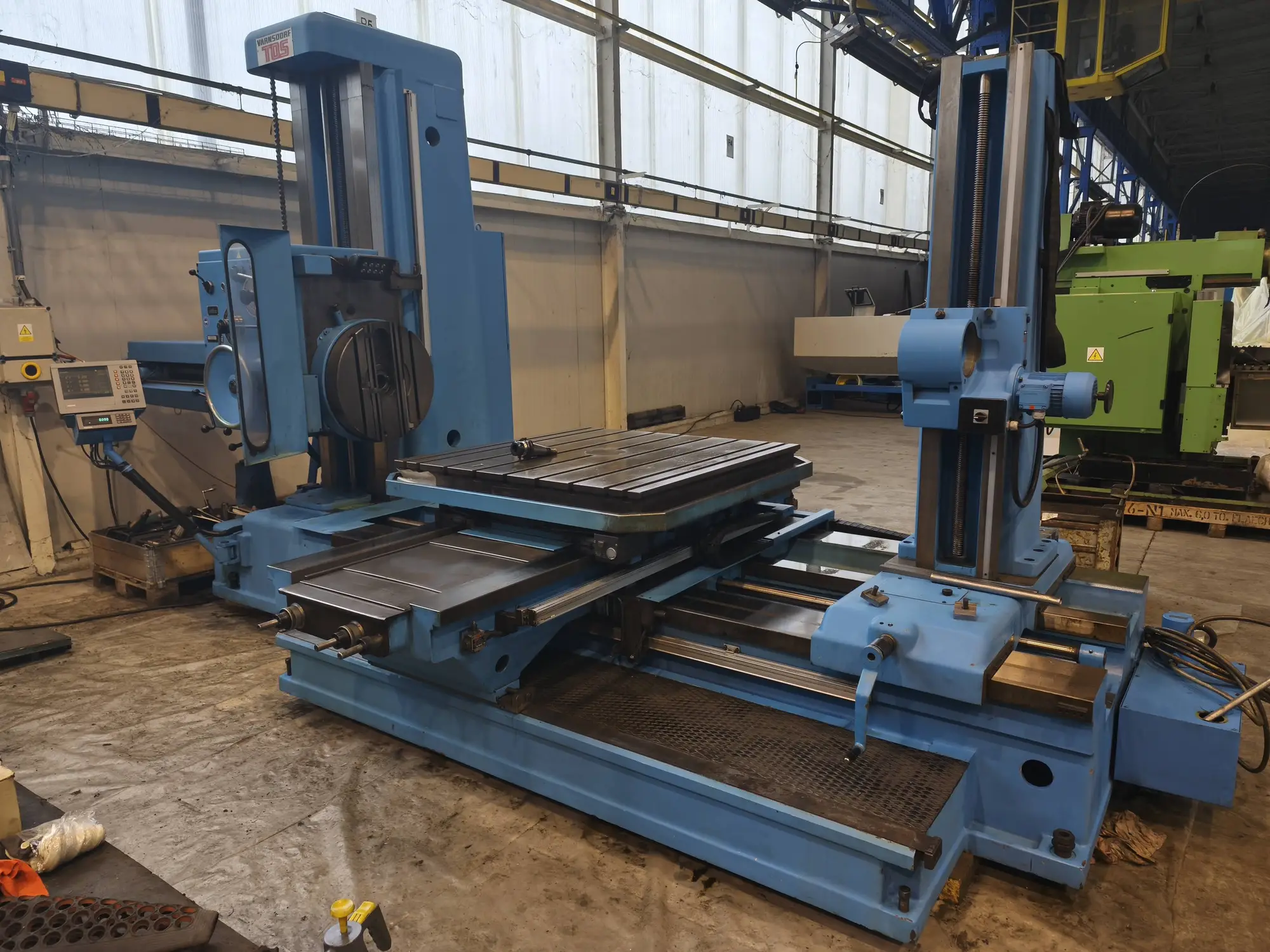

Machine type............ Manual Table Type Boring Machine
Make.................... TOS
Type.................... W100 A
Year / Sn#.............. 2004 / Sn# 32-25
Control/DRO............. HEIDENHAIN 5-Axis DRO
Technical details
X-travel................ 1600 mm 63”
Y-travel................ 1120 mm 44.1”
W-travel (spindle)...... 900 mm 35.9”
Z-travel................ 1250 mm 49.2”
Spindle Dia............. 100 mm 3.93”
Spindle taper........... ISO 50
Table-size.............. 1250 x 1250 mm 49.2” x 49.2”
Table load capacity..... 3000 kg 6600 lbs.
Spindle speed:.......... 9 to 1120 rpm
Spindle Motor........... 11 kW. 15 HP
Weight of the machine.... 17500 kg. 38,500 lbs.
Dimensions (LWH)......... 5.9 x 3.6 x 3.0 m 264” x 135” x 118”
#50 Taper Spindle with Power Tool Clamp
23” Diameter Built In Facing Head
Tail stock
Hardened Guideways
Threading Capable
Heidenhain DRO 5-Axis with linear scales
Misc. tool holders
Spindle nose extension
