USED 2023 LASER MARKING TECHNOLOGIES CLASS IV ECOBALT 50PF-LMT HO MOPA
Overview
Description

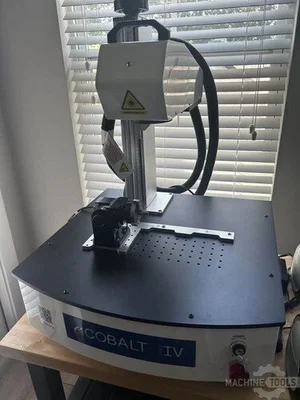

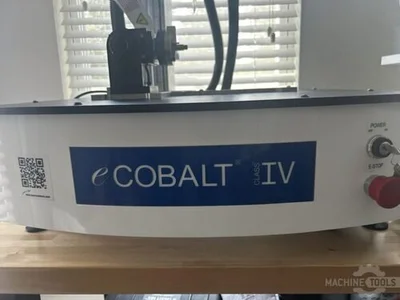

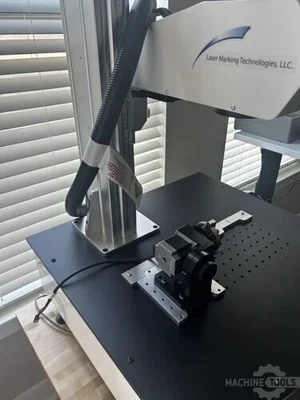

Laser Marking Technologies Class IV eCobalt 50PF-LMT HO MOPA Laser Marking System
Specifications
General Info
Stock #: 191250008
Location: Atlanta, GA
Brand: Laser Marking Technologies
Model: Class IV eCobalt 50PF-LMT HO MOPA
Year: 2023
Approx. Shipping Weight: 200 Lbs.
Approx. Shipping Dimensions: 42" W x 48" L x 42" H
Specifications
Electrical: 1ph 110v
Laser Frequency Range: 1-4000kHz
Laser Pulse Duration @2-500ns: 1064nm Wavelength
Equipped With

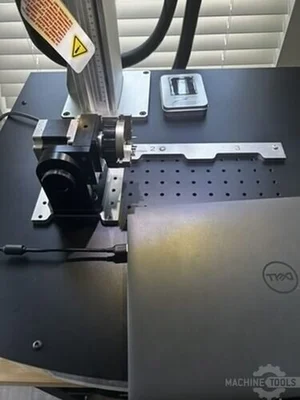

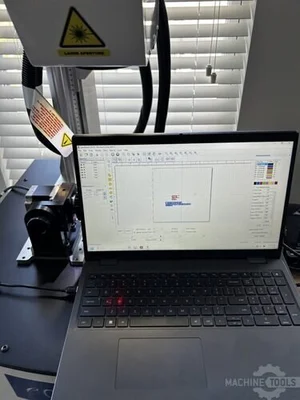

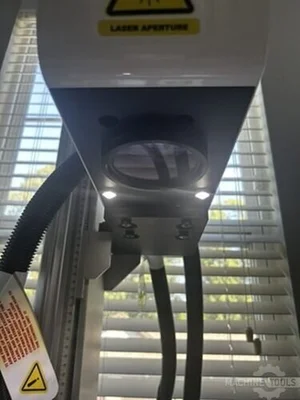

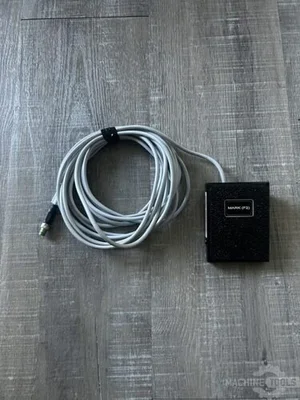

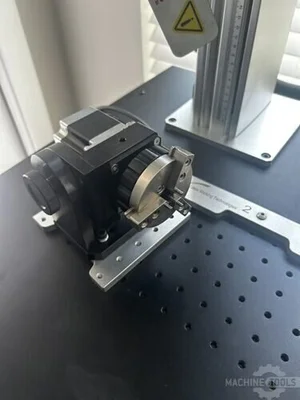

Complete system with PC & Software for all types of QR, Data matrix and Barcodes. - 50 Watt LMT HO MOPA Ytterbium Pulsed Fiber Laser -Digital Scan Head -Dell Laptop: Windows 10 Pro, Minimum Intel 3.0GHz Processor, Minimum 128gb M.2 SSD, 8gb DDR4 Memory -Drive cards-Manual Z-Axis-Detachable head from Z-Axis -LMT docking rail -LMT-254FL-S 254mm focal length lens with a 6.89 x 6.89 marking area. -Class IV LMT-R3-T Class IV tilting rotary axis. Tilting rotary axis able to mark the OD and ID of cylindrical items. 1/16-1 1/16 or (1.58mm-27mm) OD 15/32-2 5/16 or (12mm-74.6mm) ID -LMT-Mobile Head - ClassIV Mobile head with handles -LMT-FP Foot Pedal
Additional Info
Machine is being sold from a customers facility in Atlanta, GA. Can be demonstrated upon request.
