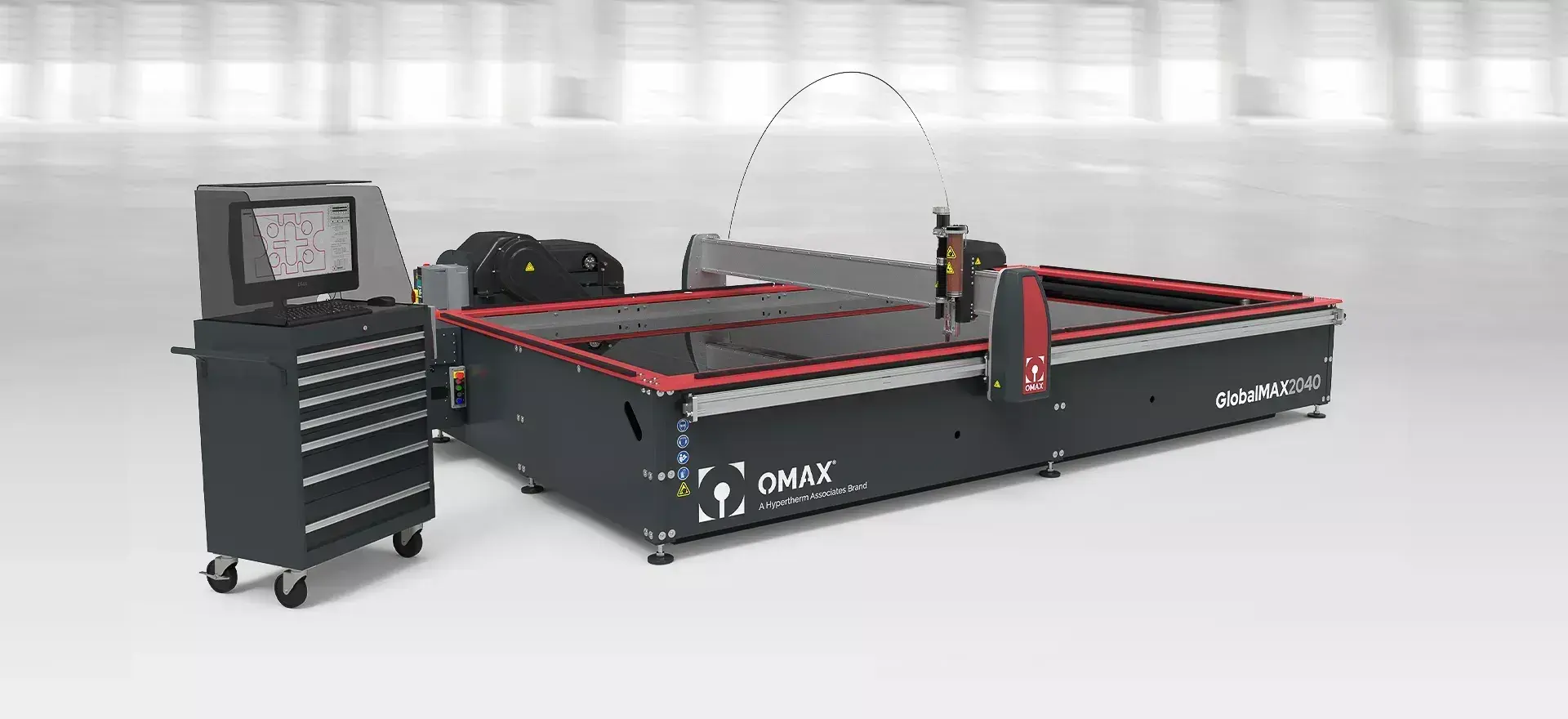

The GlobalMAX 2040 abrasive waterjet is a value-focused abrasive waterjet that can cut almost any material and a wide variety of thicknesses.
Cutting envelope of 13’ 3” x 6’ 8” (4.03 m x 2.03 m)
±0.003" (±0.076 mm) linear position accuracy
| Pump Output | 45,000 PSI | 3,102.6 bar |
| X | 159" | 4,038.6 mm |
| Y | 80" | 2,032 mm |
| Z | 5" | 127 mm |
| Table Size-W | 84" | 2,133.6 mm |
| Table Size-L | 163" | 4,140.2 mm |
| Power | 30 hp | 22.4 kW |
| Dimensions | 15' 11" x 13' 5" | 15' 11" x 13' 5" |
