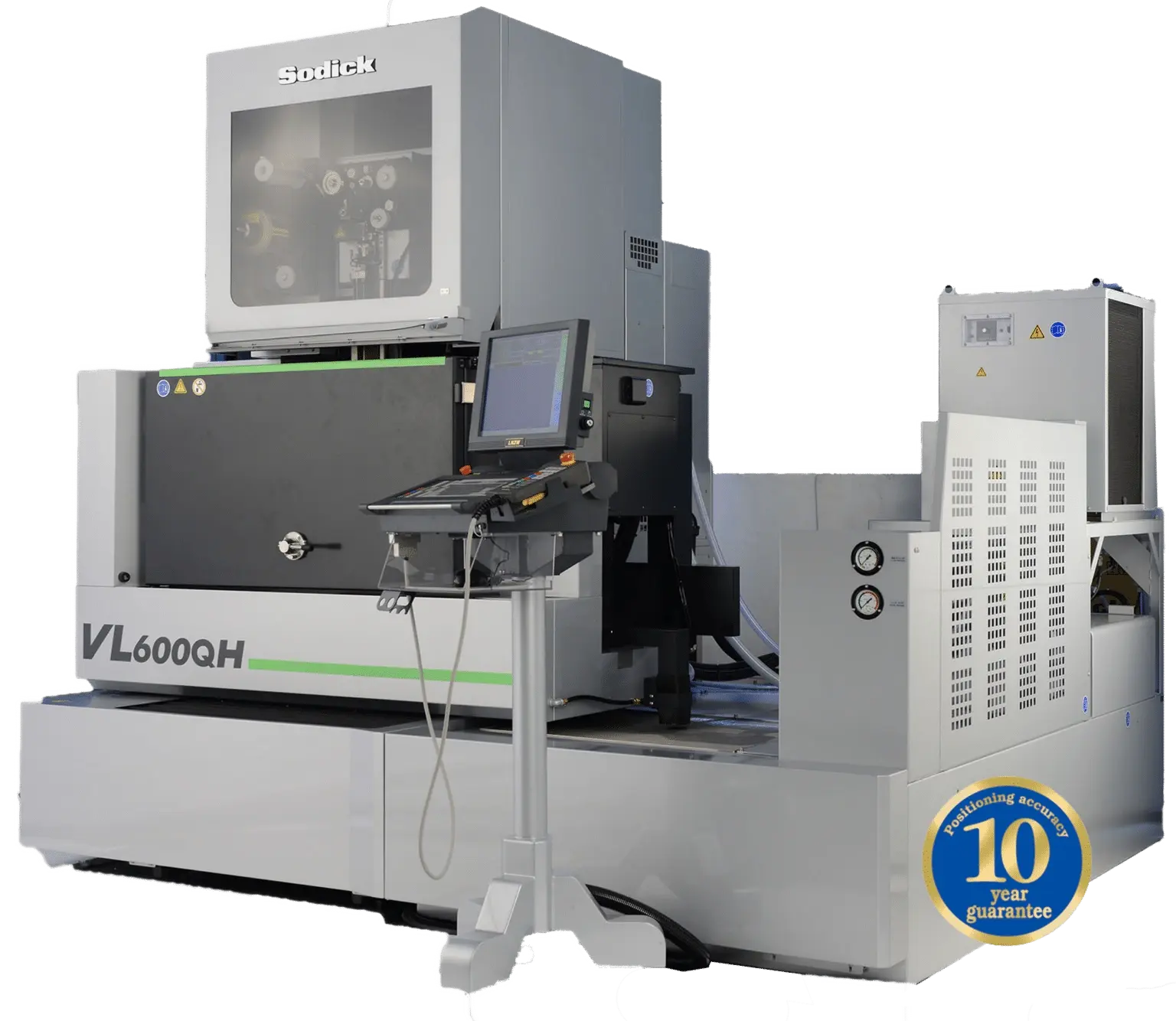

NEW SODICK VL600QH
Overview
The VL600QH is an ideal solution for even the tallest workpieces. With a reliable threader and flat rigid linear motor drives, the VL600QH maintains excellent performance and accuracy along all 20 inches of Z..
The VL600QH Wire EDM features Sodick’s Linear Motor Technology. The VL Series is an advanced line of performance Wire EDM. The taller VL600QH is well-suited for a wide range of machining applications with even the tallest workpieces.
Features
• 10-Year Positioning Guarantee
• Linear Motor Drives (X, Y, U, and V axes)
• Glass Scale Feedback (X, Y, U, and V)
• Fixed Jet High Speed AWT
• Improved Surface Finish Circuit
• Ceramic Components
• Wire Tip Disposal Unit
• Z Axis Automatic Dielectric Fluid Level Control
• Advanced Tension Servo Control
• FTII (Precision Pick-Up Function)
• High Speed Electrolysis-Free Power Supply
• USB and LAN Connection Port
Remote Hand Control and Mouse
Energy Saving Circuit
Dielectric Cooling Unit
Built-In Voltage Stabilizer
Motion Controller
On-Board, User-Friendly Heart NC Software
Specs
X - Axis Travel 23.62” (600 mm)
Y - Axis Travel 15.75” (400 mm)
Z - Axis Travel 19.69” (500 mm)
U, V - Axis Travel 3.54" x 3.54" (90 x 90 mm)
Wire Diameter Range (min ~ max) 0.004” ~ 0.012” (0.10 ~ 0.30 mm)
Work Tank Dimensions W x D 40.94" x 30.71” (1040 x 780 mm)
Max. Workpiece Weight 1,874 lbs (850 kg)
Distance from Floor to Table Top 36.61” (930 mm)
Machine Tool Dimensions W x D x H 118.89" x 102.56" x 100.0" (3,020 x 2,605 x 2,540 mm)
Machine Weight 7,275 lbs (3,300 kg)
