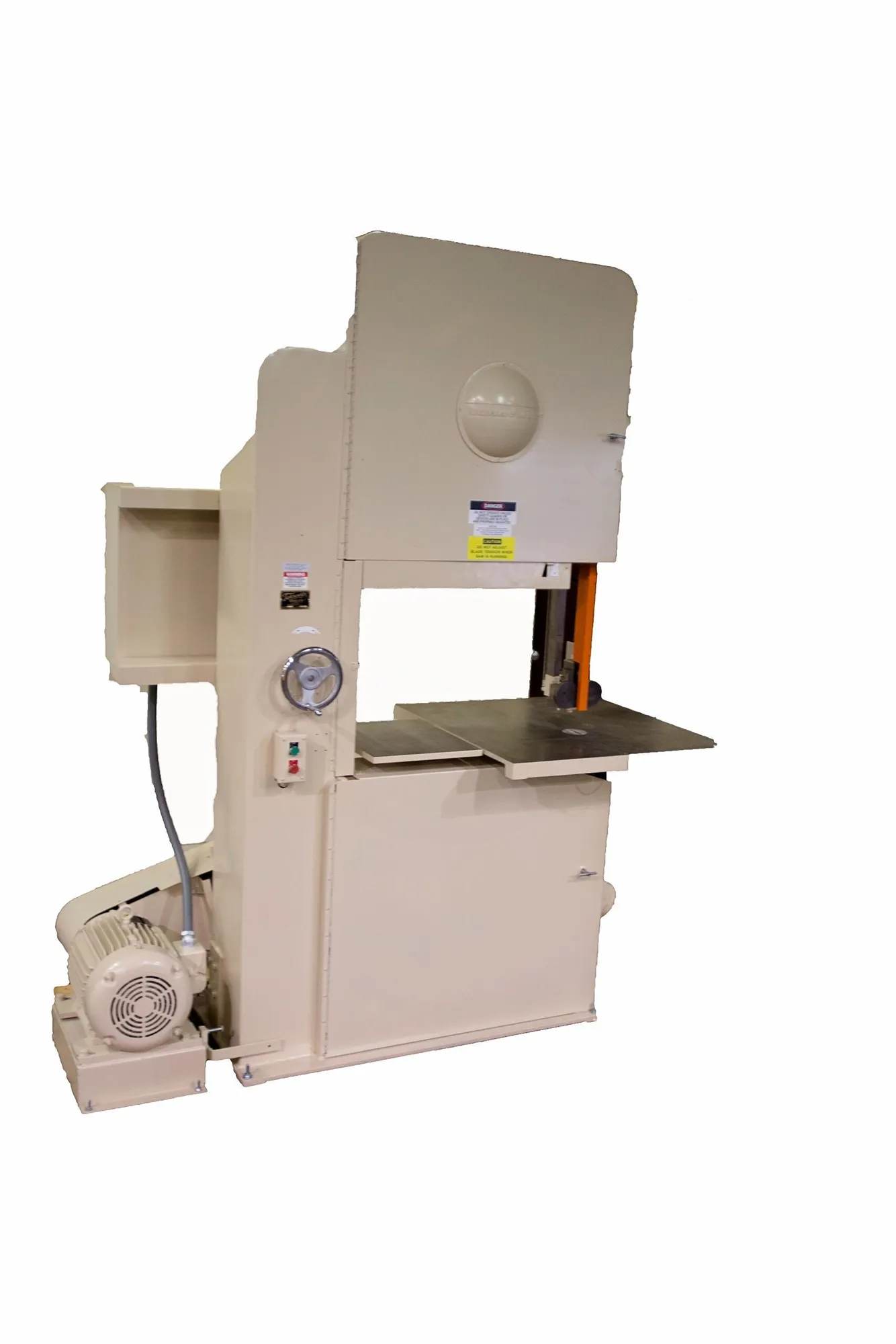

TANNEWITZ Model G1NE Vertical Bandsaw, 35" x 20" Variable Speed Bandsaw
The Tannewitz production series Multi-Purpose Bandsaws, with 5 basic model choices, allows you to select the right saw to match your application and budget. From the economical single speed through variable speed models, the Production Series fabricated metal frames allow for large throat capacities up to 52 inches. By incorporating the optional 3 wheel design, larger throat capacities (up to 120 inches) can be met.
| Throat Cap | 35.5" | 901.7 mm |
| Work Height | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| Blade Width | 2" | 50.8 mm |
| Blade Length | 234" | 5,943.6 mm |
| FPM | Fixed | Fixed |
| Dimensions | 106"H x 37"W x 79" Depth | 106"H x 37"W x 79" Depth |
| Weight | 3,200 lbs | 3,200 lbs |
Throat Capacity 35 1/2″
Work Thickness 20″
Wheel Diameter 36″
Horsepower 15
Blade Speed Single speed 1000 to 15,000
Tachometer –
Table Size (Main) 36″x37″
Table Size (Aux) 16″-19″
Table Tilt 45″R, 5″ L
Table Height 41″
Blade Width up to 2″
Blade Length 20’4″
Machine Dimensions (Height) 105″
Net Weight 3,200 lbs
Volts 550volts
Overall Height 106"
Width (machine footprint) 37"
Depth 78"
Blade Length 234"
Shipping Weight 3,600 lbs
