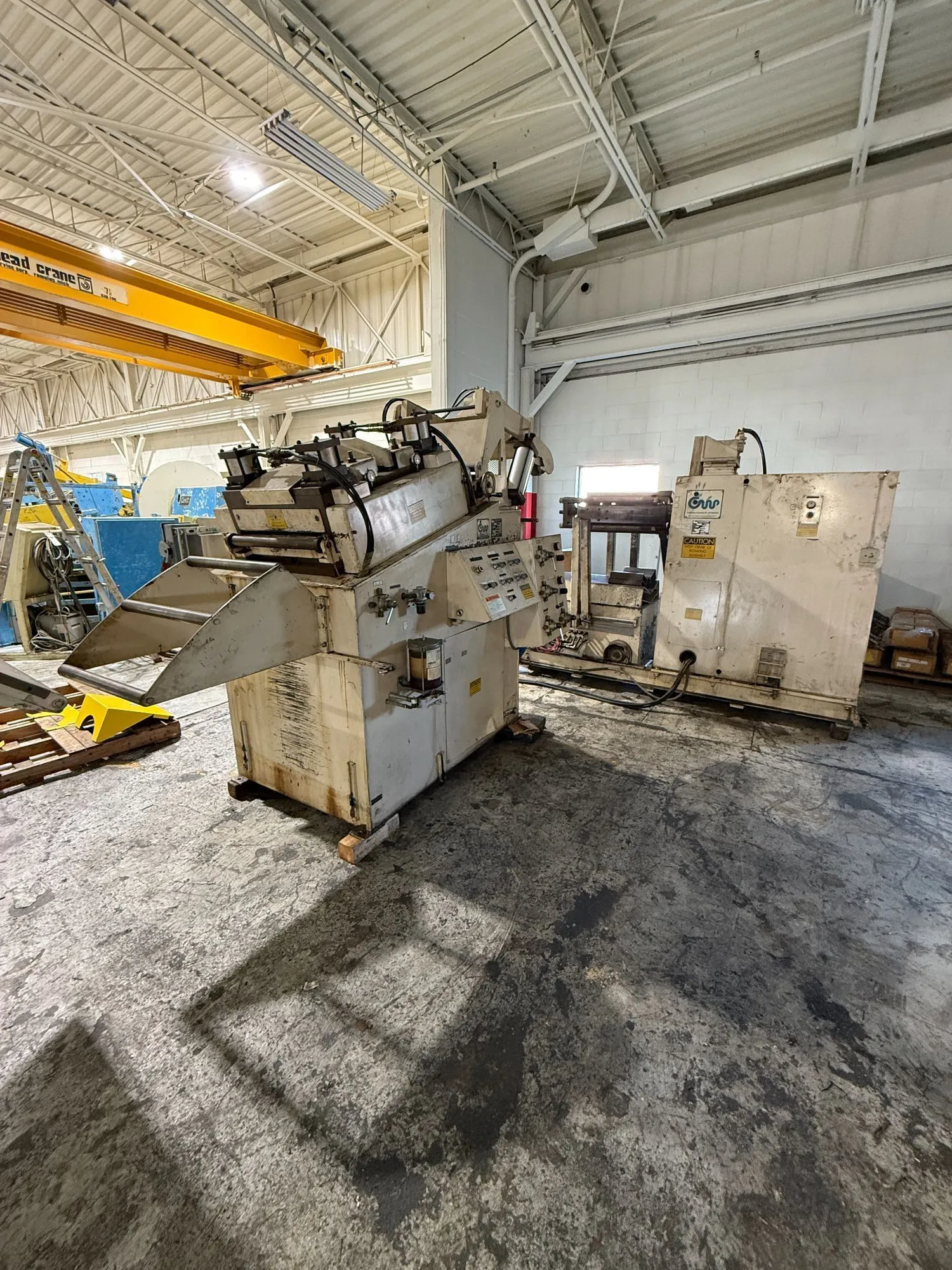

USED 1997 CWP 6R24/24D11/SMX24H
Overview
20,000 # x 24" wide CWP Coil Servo Feedline, Coil reel with Coil Car, Powered Straightener with Hold Down Arm, Capacity: 24" wide x 0.187" thick material
Specs
Coil Weight Capacity: 20,000 lbs
Model Number: 6R24/24D11/SMX24H
Serial Numbers: 42736/SMX24H-1001
Coil Width Capacity: 24”
Stock Thickness Capacity: 24” wide x .187”
Max. Capacity: 18” wide x 0.250”
Min. Thickness Capacity: 0.021” thick material
Coil I.D. Range: 15.5”-20.5”
Coil O.D.: 60”
Power Supply: 460/3/60
Feed Direction: Right to Left
Passline Height: 50”
Overall Line Length: 32’
Equipped With
CWP Coil Reel Model 6R-24 with Coil Car Model 20042 CLC
Three Leaf Mandrel
Hydraulic Expansion
Coil Keeper Arms
Air Brake with Adjustable Tensioning
Thread Drive for Jog Forward and Reverse
Traveling Coil Car
Powered Lift and Travel
CWP Powered Coil Straightener Model 24D11
Eleven Straightening Rolls
2.8" Diameter Straightening Rolls
Back Up Supports on Upper Straightening Rolls
Entry and Exit Pinch Rolls with Air Operated Adjustment
Adjustable stock Width Edge Guides
Coil Hold Down Arm with Motorized End Wheel
Stock Peeler Table
Exit Cascade Loop Rolls
Automatic Lubrication
Control- Commander Digital AC Motor Control
Operators Control Console
CWP Exit Thread Table
Air Raise and Lower of Threading Table
Single Side Table, with Adjustable Passline Feature
Coil Tek Ultrasonic Loop Control
CWP Coil Servo Roll Feed Model SMX24H Heavy Duty
.187" Maximum Coil Stock Thickness
Piloting Upper Roll Lift
Adjustable Edge Guides
Entry Cascade Loop Rollers
Heavy Duty Cabinet Base
Auto Selection 500 Job Storage
Adjustable Pass Line
Automatic Lubrication System
AC Servo Drive and Controls
Slant Top Operators Console
