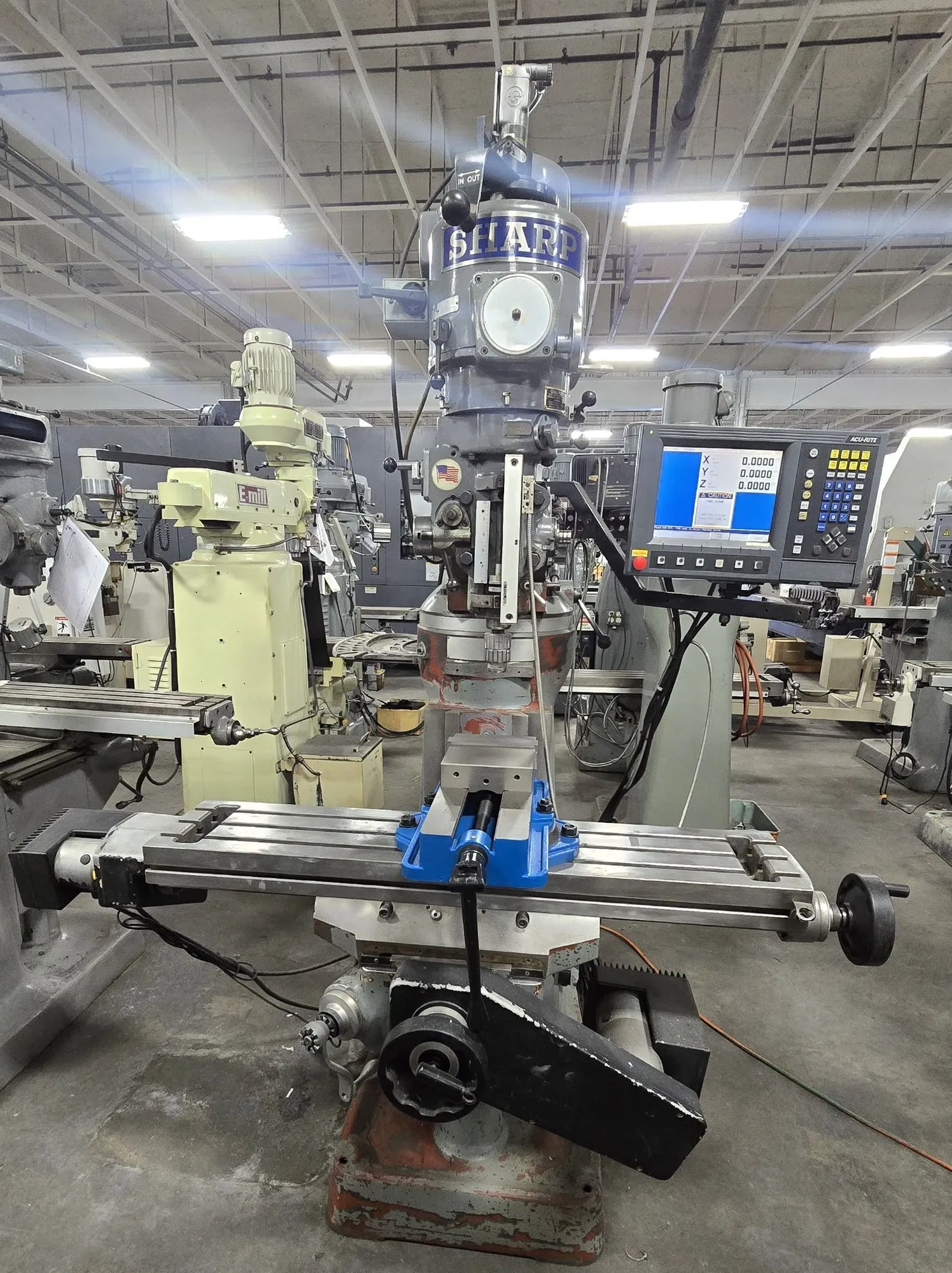

USED SHARP LMV/MP-2

Standard Features
9 x 42” table, 11 x 25×5” travel, Vari Speed
AcuRite Millpwr MP2 CNC 2-axis control (Longitudinal, Cross)
G code and conversational type programming
2-axis precision ball screws
Safety handwheels
1 Shot lube system
3-axis Digital Readout System (table, saddle, quill)
Digital servo drive system (2 axes) (table, saddle)
Hard chromed ways
Meehanite castings
Roller bearing support bottom of motor shaft
Abec-7 super precision angular contact bearings
Kurt Power Draw Bar
New 6" Swivel Vice
Specifications
Table Size: 9” x 42”
T-Slots (No., Size, Pitch): 3”, 5/8”, 2.5”
Table Travel: X Longitudinal: 25”
Table Travel: Y Cross: 11”
Quill Travel: Z Vertical: 5”
Ram Travel: 12”
Knee Travel: Vertical: 16”
Spindle Center to Column: 6.75” - 18.5”
Spindle Nose to Table Top: 2.125” - 18”
Spindle Nose Taper: R-8
Spindle Variable Speed Range: 60 - 4500 rpm
Spindle Motor: 220V, 3 HP
Quill Feed (Inch/Rev)(3 Speed): .0015”, .003”, .006”
Quill Diameter: 3.375”
Head Swivel Angle: 360°
Head Tilt Angle (L/R): 45°
Head Tilt Angle (Up/Down): 45°
Floor Area (W x D x H): 7’ x 6.6’ x 6.7’
Approximate Weight: 2,400 lbs
Power Consumption (220V): 3 KVA / 8 amps
Kurt Power Draw Bar
