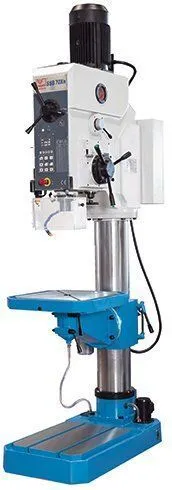

NEW 2025 KNUTH SSB 70 XN

2025 KNUTH Heavy Duty Drill Press Model SSB 70 Xn
The heavy-duty design of SSB 70 Xn allows makes this model the optimal solution for both repair and production requirements. This universal drilling machine have a thick-walled column, powerful drives and robust gearboxes for spindle and feed. The large work area and the large universal clamping tables allow easy handling and processing of small workpieces, but also large and heavy parts and assemblies.

The top model of this series features an extra heavy construction with a thick-walled column
Base, column, table and gear head are made of premium high-quality cast iron
A large drill press table features a circumferential coolant groove and up to± 45° swivel range
Table height adjustment via a powerful motorized drive
Main spindle and gears are integrated in the lube oil circuit via a powerful pump
6 automatic drill feeds can be selected via gears and engaged via an electromagnetic clutch
Easy handling of the machine ensures effortless operation in a production environment

Modern Operating Concept

The depth stop is set electronically at the display
The automatic feed is controlled via buttons and can be engaged and disengaged directly at the twist grip handle
Measuring units for input and display can be selected by the operator (mm or inch)
If the thread cutting function is enabled, the spindle rotation will automatically reverse upon reaching the set depth
Includes a powerful coolant system and safety features

Specifications
Drilling capacity 2.76 in.
Table set up area 24 in x 24 in.
Tapping capacity, steel M 50
Throat 17 in.
Spindle nose-to-table surface distance 31 in.
Table swivel range (max.) ± 45°
Quill stroke 11 in.
Column diameter 9 in.
Spindle nose-to-foot distance 54 in.
Table stroke 31 in.

Headstock
Spindle mount MT 5
Spindle speed 38 rpm - 1.230 rpm
Spindle speed-stages 12

Feed
Quill feeds 0,1- 0,4 in/R
Quill feeds-stages 4

Drive Capacity
Motor rating main drive 7.4 HP
Motor rating coolant pump 0.2 HP
Motor rating for vertical table travel 0.5 HP

Dimensions
Overall dimensions (length x width x height) 49 in x 26 in x 112 in.
Weight 2.156 lbs

Tapping unit, protective shield, coolant system, LED work lamp, operating tools, operator instructions, drill chuck with , wrench, reducing sleeves, control panel with digital display, motorized table height adjustment, automatic spindle feeds
