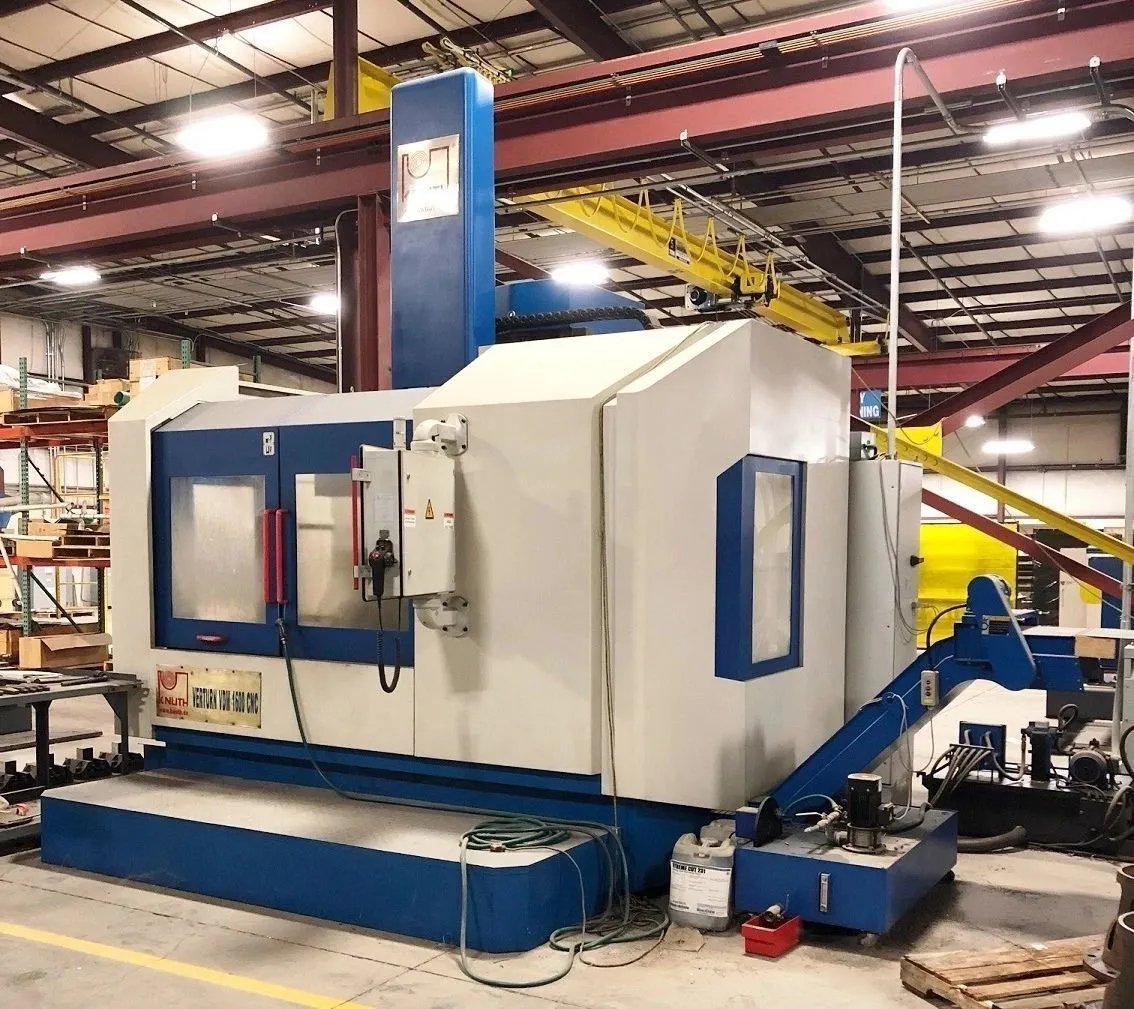

NEW 2015 KNUTH VERTURN VDM 1600 CNC
Overview
Description
2015 KNUTH VERTURN VDM 1600 CNC, 55" Chuck/Table 63" Swing. 47" Max Height, 4 Position Turret, Siemens 828 SL CNC
KNUTH Machine Tools is a family-owned international supplier of high-quality machining and sheet metal tools, founded in 1923 in Königsberg, Germany, by Gerhard Knuth. Reestablished in 1946 in Neumünster after World War II, the company has grown into a global brand operating in over 45 countries with a reputation for precision and, says this Facebook post and this YouTube video, customer-focused solutions.
Specifications
| Table Dia | 55" | 1,397 mm |
|---|---|---|
| Swing | 63" | 1,600.2 mm |
| Work Ht-U/R | 47" | 1,193.8 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 200 RPM | 200 RPM |
| Control | CNC (Siemens 840D SL) | CNC (Siemens 840D SL) |
| Dimensions | 209"L x 150"D x 165"H | 209"L x 150"D x 165"H |
| Weight | 26,400 lbs | 26,400 lbs |
Turning Dia: 63"
Machining Height: 47"
X Axis Travel: 40"
Z Axis Travel: 31"
W Axis Travel: 33"
Work Piece Weight (max): 11,000 lbs
Headstock
Speed Range: .5 - 200 RPM
Torque Max: 23,600 ft lb
Lathe Chuck Dia: 55"
Feed
Rapid Feed X axis: 236 IPM
Rapid Feed Z axis: 236 IPM
Feed W axis: 17 IPM
Automatic Tool Changer 4 Position
Tool Change Time: 10S
Tool Weight: 55 lbs
Main Motor Drive: 60 HP
Equipped With
Siemens 828 D SL CNC , electronic handwheel, 4-jaw face chuck, automatic 4-station tool changer, coolant systemhydraulic unit, lighting,
4 Position ATC
4-step precision gears and infinitely variable 60 HP motor for high torque (up to 29,500 ft/lbs.) across entire speed range
