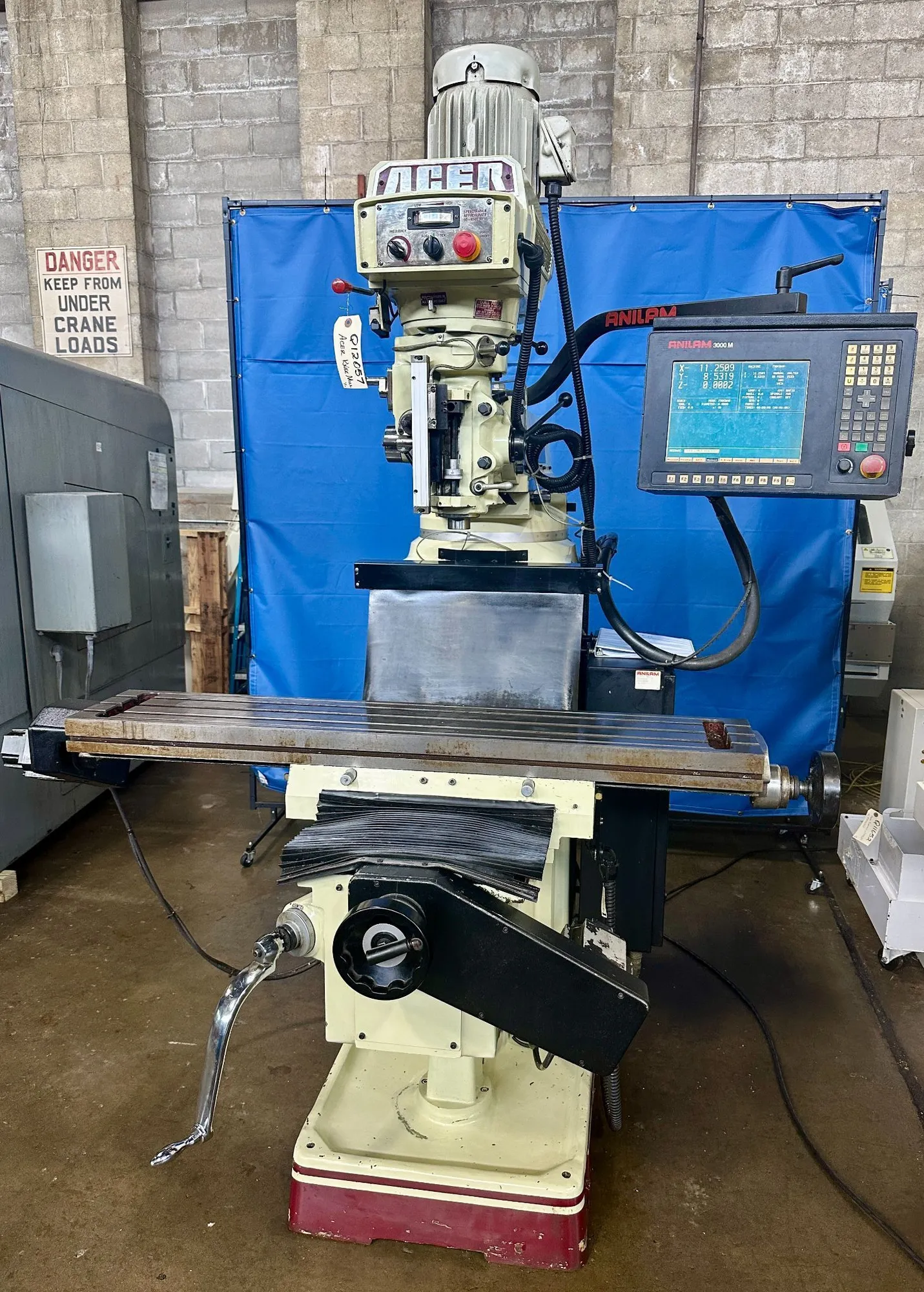

Acer EVS-3VKH-54 CNC Knee Mill, Anilam 3000 2-Axis Programmable Control with Feedback on Quill, 10" x 50" Table, X=34", Y=17", W=19", Quill Travel=5", R-8 Taper, 3 HP, 4500 Max Spindle RPM, New 2005.
| Table-L | 50" | 1,270 mm |
| Table-W | 10" | 254 mm |
| Max Weight of Workpiece | 850 lb | 385.6 kg |
| X-Axis (Longit. Table Travel Power Feed) | 34" | 863.6 mm |
| Y-Axis (Cross Saddle Travel) | 17" | 431.8 mm |
| W-Axis (Vertical Knee Travel) | 19" | 482.6 mm |
| Z-Axis (Vertical Quill Travel) | 5" | 127 mm |
| Ram Travel | 20" | 508 mm |
| Spindle Taper | R-8 | R-8 |
| Spindle Speeds | 60 - 4,500 RPM | 4,500 RPM |
| Drive Type | Variable Speed Spindle | Variable Speed Spindle |
| Quill Feeds | 0.0015 - 0.006 in/rev. | 0.0015 - 0.006 in/rev. |
| Spindle Power | 3 hp | 2.2 kW |
| Electrics | 220/3/60 | 220/3/60 |
| Dimensions | 70" x 66" x 95" | 70" x 66" x 95" |
| Weight | 3,300 LBS | 3,300 LBS |
Head Movement (Right to Left): ±90°
Head Tilt (Front to Back): ±45°
Anilam 3000M 2-Axis CNC Control with Scale Feedback on Quill.
