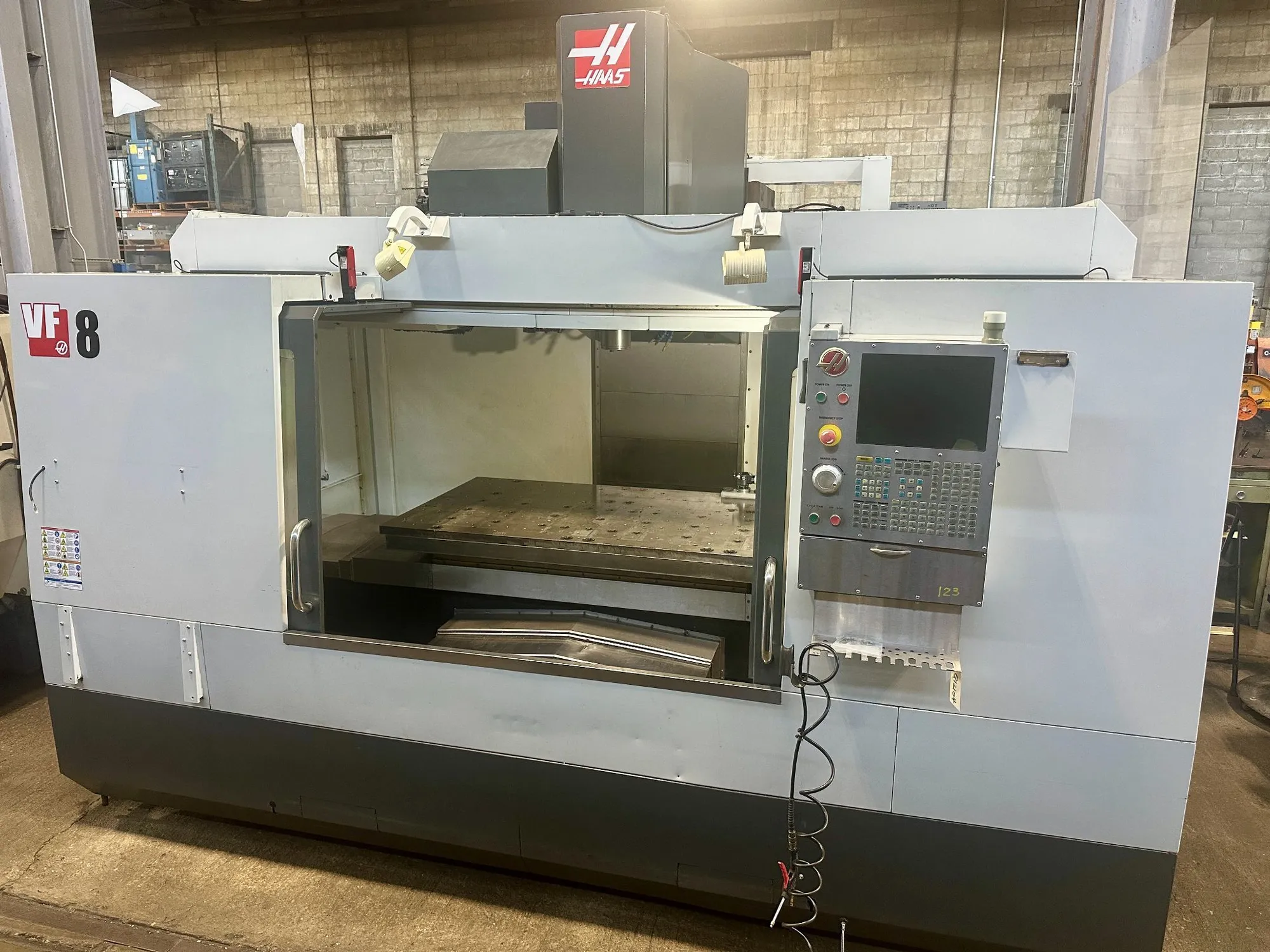

Haas VF-8/40 3-Axis CNC Vertical Machining Center, Haas CNC Control, 64" x 36" Table, X=64", Y=40", Z=30", CAT 40 Taper, 8100 Max Spindle RPM, 20 HP Spindle, 24 ATC, 1,000 PSI Through Spindle Coolant, Prog Coolant Nozzle, Tool Touch Probe, Coolant System, New 2014.
| CNC Control | Haas CNC | Haas CNC |
| # Axis | 3 | 3 |
| Table-L | 64" | 1,625.6 mm |
| Table-W | 36" | 914.4 mm |
| Max Table Load Capacity | 4,000 lb | 1,814.4 kg |
| X-Axis (Longitudinal Travel) | 64" | 1,625.6 mm |
| Y-Axis (Cross Travel) | 40" | 1,016 mm |
| Z-Axis (Vertical Travel) | 30" | 762 mm |
| Max Clearance Tabletop to Spindle Nose | 34" | 863.6 mm |
| Min Clearance Tabletop to Spindle Nose | 4" | 101.6 mm |
| Feed Rates (X, Y, & Z Axis) | 600 in/min. | 15.2 m/min. |
| Rapid Traverse Rate (X, Y, & Z Axis) | 600 in/min. | 15.2 m/min. |
| Spindle Power | 30 hp | 22.4 kW |
| Max Spindle Speed | 8,100 RPM | 8,100 RPM |
| Spindle Taper | CAT 40 | CAT 40 |
| Torque, Up To | 90 FT-LBS @ 2000 RPM | 400.3 N |
| Coolant Through Spindle | No | No |
| Automatic Tool Changer Capacity (ATC) | 24+1 ATC | 24+1 ATC |
| Automatic Tool Changer Style | Side-Mount | Side-Mount |
| Tool Change Time | 2.8 sec. | 2.8 sec. |
| Electrics | 240/3/60 | 240/3/60 |
| Dimensions | 193" x 120" x 130" | 193" x 120" x 130" |
| Weight | 24,800 lbs | 24,800 lbs |
Haas CNC Control, 8100 RPM Spindle, Rigid Tapping, 24+1 Station Tool Changer, Tool Touch Probe, Setup for Part Probe (Probe is broken),1,000 PSI Through Spindle Coolant, Programmable Coolant Nozzle, Chip Auger, Tool Holders Included, Coolant System & Coolant Filtration System.
