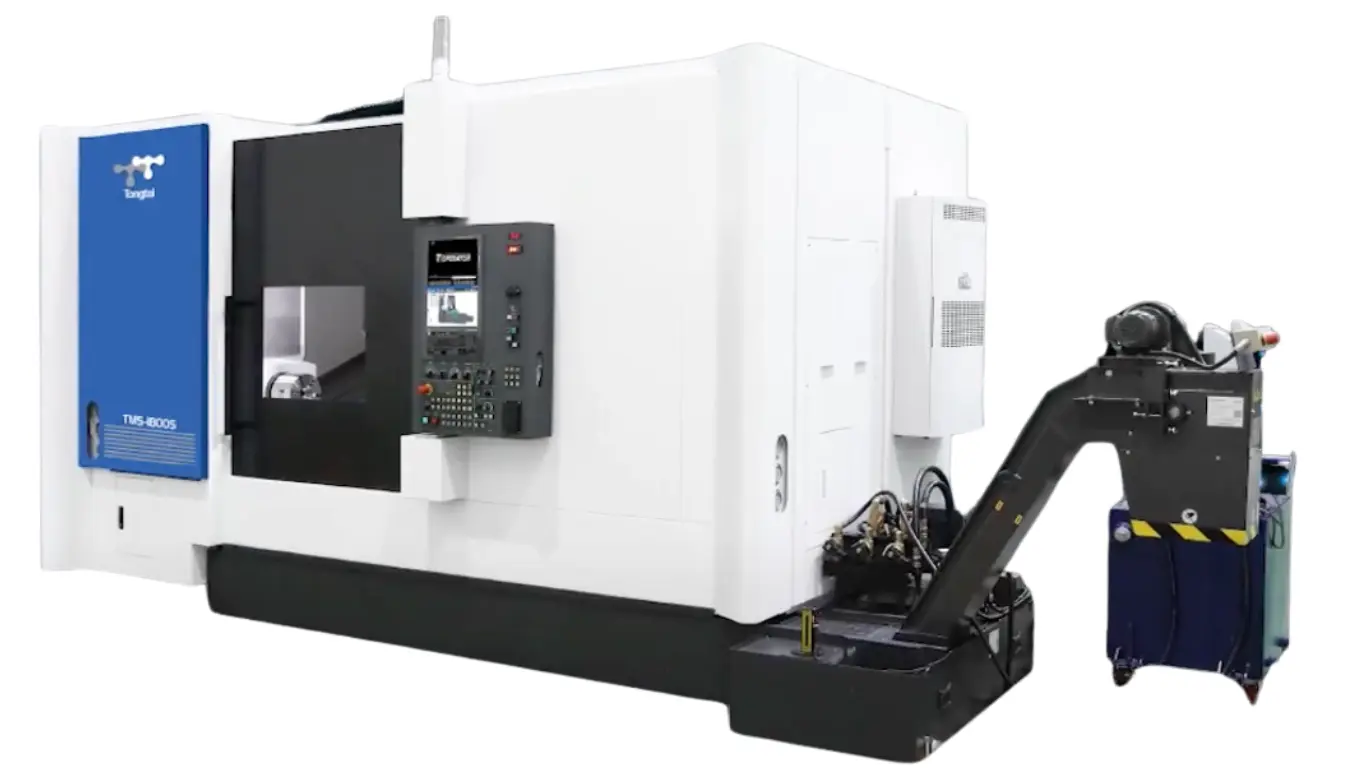

NEW TONGTAI TMS-1800S
Overview
Description
The Tongtai TMS-1800S is a high-precision multi-tasking turning center designed to handle complex machining tasks with speed, accuracy, and efficiency. Equipped with a powerful FANUC 0i-TF Plus control system and a large 15-inch monitor, this machine supports 4+1 axis machining, making it ideal for advanced part processing in industries such as aerospace, automotive, and tooling.
It features a maximum swing and machining diameter of 550 mm and a generous machining length of up to 950 mm. The TMS-1800S comes with a built-in main and sub spindle, each capable of 6000 RPM, powered by 18.5/11 kW motors, and offering Ø51 mm bar capacity with precision indexing down to 0.001°. The HSK-T63 milling spindle reaches speeds of 12000 RPM with a 15/9 kW motor, supported by a B-axis rotary range of -30° to +210°, also with 0.001° indexing precision. Its robust tool management includes a 30-tool automatic tool changer (ATC), handling tools up to 230 mm in length and 7 kg in weight. With rapid traverse speeds of 40 m/min on X/Y/Z axes and 30 m/min on the W-axis, the TMS-1800S ensures high-speed productivity without compromising on stability. Additional standard features include a coolant and chip removal system, hydraulic and lubrication units, splash guarding, LED lighting, and preparation for a bar feeder interface.
Key Features:
• 4+1 Axis with FANUC 0i-TF Plus control
• Max. swing/machining diameter: 550 mm
• Max. machining length: 950 mm
• Dual 6000 RPM spindles with 18.5/11 kW motors
• 12000 RPM milling spindle with HSK-T63 interface
• 30-tool ATC, up to 7 kg per tool
• High-speed linear axes and precise B-axis control
• Includes coolant, chip, lighting, and safety systems
Specifications
| Max Swing Diameter | 550 mm | 21.654" |
|---|---|---|
| Max Turning Diameter (Milling Spindle) | 550 mm | 21.654" |
| Max Turning Length | 950 mm | 37.402" |
| X-Axis Travel | 655 mm | 25.787" |
| Y-Axis Travel | 105 mm | 4.1339" |
| Z-Axis Travel | 1,015 mm | 39.961" |
| Rapid Feedrates | 40 m/min. | 1,574.8 in/min. |
| W-Axis Travel (Sub-spindle) | 950+345 mm | 950+345 mm |
| W-Axis Rapid Traverse | 30 m/min. | 1,181.1 in/min. |
| Chuck Size | 8" | 203.2 mm |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Nose | A2-6 | A2-6 |
| Spindle Bearing Dia | 100 mm | 3.937" |
| Bar Capacity | 51 mm | 2.0079" |
| Spindle Nose (B-Axis) | HSK-T63 | HSK-T63 |
| Spindle Speed (B-Axis) | 12,000 RPM | 12,000 RPM |
| Rotary Travel (B-Axis) | -30° - +210° | -30° - +210° |
| ATC | 30 | 30 |
| Tool Length | 230 mm | 9.0551" |
| Tool Weight | 7 kg | 15.4 lb |
| Control | CNC (FANUC Oi -TF) | CNC (FANUC Oi -TF) |
Equipped With
FANUC 0i-TF PLUS WITH 15" MONITOR (4+1 AXIS)
6,000 RPM BUILT-IN SPINDLE
30 TOOLS ATC MAGAZINE
COOLANT UNIT WITH COOLANT TANK & PUMPS
HYDRAULIC UNIT FOR CHUCKS WITH AIR COOLER
ELECTRICAL CABINET WITH HEAT EXCHANGER
CENTRAL LUBRICATION SYSTEM FOR X/Y/Z/W AXIS
CHIP CONVEYOR (CHAIN TYPE) H=1100 MM WITH TROLLEY
PROTECTIVE COVERS FOR X/Y/Z/W AXIS
MACHINE STANDARD FULL SPLASH GUARD
MANUAL PULSE GENERATOR
LED WORK LIGHT
THREE COLOR WARNING LIGHT
BAR FEEDER INTERFACE PREPARATION
OIL SKIMMER (DISC TYPE)
COOLANT LEVEL DETECTOR
ROTARY ENCODER FOR B-AXIS (RESOLUTION ±5")
SPINDLE COOLER FOR MAIN & SUB SPINDLES
