Used Vendome 1,400 Gallon Stainless Steel Processor | Dual Agitation | Jacketed | 100 PSI |

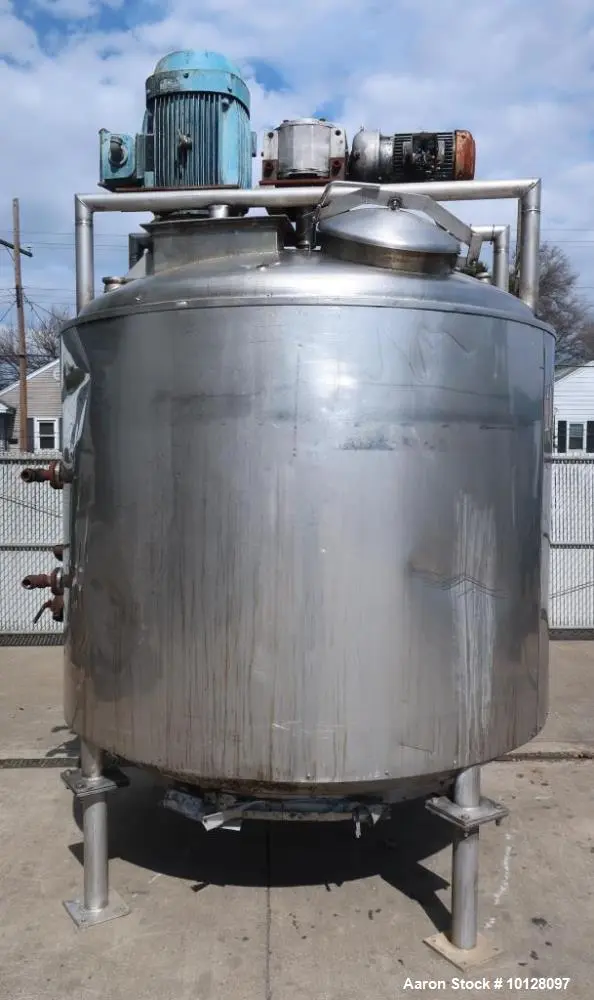

Used Vendome 1,400 Gallon Stainless Steel Processor | Dual Agitation | Jacketed | 100 PSI | . The bottom and the sides are jacketed. The dimple jackets are rated at 100 psi @ 338F. This unit is equipped with side scrape agitation (5 hp) and a 50 hp top entering homogenizing mixer. 230/460 vac 3 ph electric power required. There is one adjustable baffle inside. The vessel is 84" diameter x 60" straight side with a dished top and bottom. Bottom jacket nozzles are two- 2" RFSO flanges. Side jacket has four-2" RFSO flanges as in/out flanges. Bottom has one 3" tri-clamp nozzle. Top has one- 18" hinged lid manway, one 6" x 18" rectangular inlet, one 6" tri-clamp nozzle, one- 4" sightglass, three-3" nozzles, five- 2" nozzles, and one 1" nozzle. This unit stands on 4 stainless steel pipe legs. National board #299, Serial# 2004-05Z-1. The skin over the jacket has some dents and repairs. The jackets passed our hydro tests.

Used Equipment Facts About This Machine
🏭 Manufacturer Information
Brand: Vendome
Capacity: 1,400 Gallons
Material: Stainless Steel
Construction: Jacketed (sides and bottom), Dimple Jacket
National Board #: 299
Year Built: March 2004
Condition: Used (some exterior dents/repairs, jackets hydro-tested and passed)

📦 Product Description
This Used 1,400 Gallon Vendome Stainless Steel Processor is a heavy-duty, dual-agitation vessel designed for high-intensity mixing, emulsifying, and heat transfer processes. Built with dimple jackets on the bottom and side, this unit is rated to 100 PSI @ 338°F, ideal for steam or glycol operations.
Equipped with both side scrape agitation (5 HP motor) and a top-entry homogenizing mixer (50 HP motor), it allows thorough product blending and particle size reduction. The tank includes a single adjustable internal baffle for enhanced flow control and mixing.
It features an 18" hinged manway, 6" rectangular inlet, multiple top-mounted tri-clamp and threaded nozzles, and a 3" tri-clamp bottom outlet. Despite some cosmetic wear to the jacket skin, the vessel remains structurally sound and passed hydrostatic testing.

⚙️ Technical Specifications

Total Capacity: 1,400 Gallons

Material: Stainless Steel

Body Dimensions:

Diameter: 84"

Straight Side Height: 60"

Top/Bottom: Dished Top and Bottom

Jacket Type: Dimpled – Side and Bottom

Jacket Rating: 100 PSI @ 338°F

Agitation:

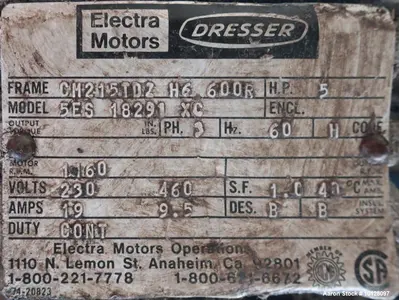

Side Scrape Agitator – 5 HP motor

Top Homogenizer – 50 HP motor

Power: 230/460V, 3 Phase

Internal Features: 1 adjustable baffle

Outlet: 3" Tri-Clamp Bottom Nozzle

Top Access & Nozzles:

18" Hinged Manway Lid

6" x 18" Rectangular Inlet

(1) 6" Tri-Clamp Nozzle

(1) 4" Sight Glass

(3) 3" Nozzles

(5) 2" Nozzles

(1) 1" Nozzle

Jacket Connections:

Bottom: (2) 2" RFSO Flanges

Side: (4) 2" RFSO Flanges

Mounting: 4 Stainless Steel Pipe Legs

Condition Note: Jacket skin has dents/repairs; hydro-tested and passed

🔧 Applications
Excellent for high-performance mixing and thermal processing in:

Food & beverage manufacturing

Dairy and cheese processing

Nutraceutical production

Sauce, soup, and puree batching

Emulsion and homogenized product manufacturing

Cosmetic product blending

Pharmaceutical and personal care mixing

Industrial slurry handling

Chemical reaction mixing

Extracts and concentrates production

📌 What Products Would This Be Used For?

Yogurt, custards, or cream fillings

Sauces, gravies, and emulsions

Plant-based protein blends

Cosmetic lotions and gels

Nutraceutical pastes and supplements

Soups and stews with particulates

Pharmaceutical creams and slurries

Confectionery syrups and fondants

Ointments or viscous personal care products

Beverage concentrates or thick slurries
