Used Vendome 1,000 Gallon Stainless Steel Jacketed Processor | Scrape Agitator | Dual-Zone Heat | 100 PSI

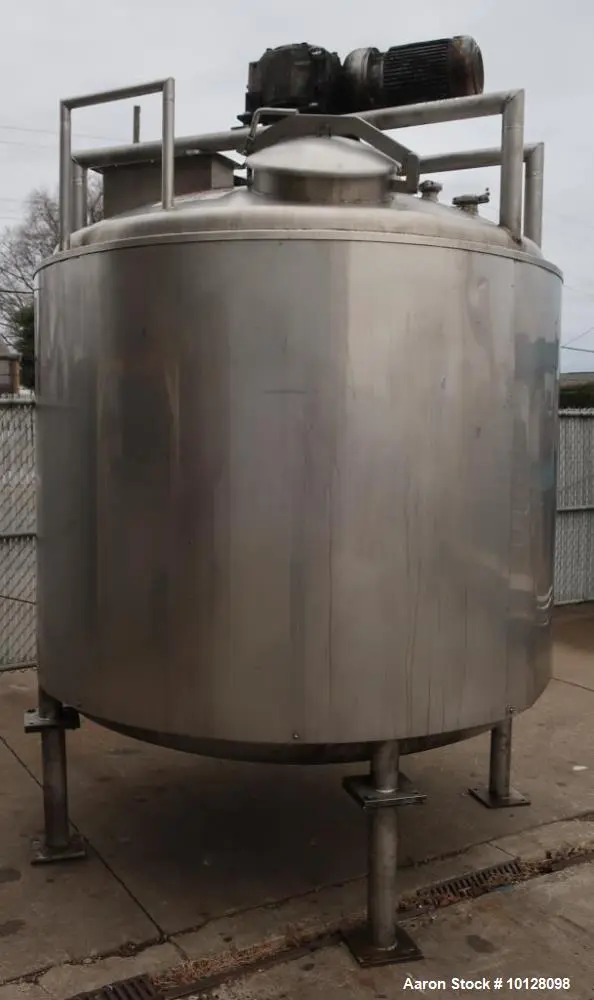

Used Vendome 1,000 Gallon Stainless Steel Jacketed Processor | Scrape Agitator | Dual-Zone Heat | 100 PSI. It has a dished bottom and a domed top. The jacket is rated for 100 psi @ 338F and the shell is rated for atmospheric pressure. National board # 898. Vendome serial number 2004-01Z-1. Vessel is 72" OD x 63" straight side. Jacket has two heating zones with 2" inlet and outlet on each zone. Bottom has 3" bent tri- clamp nozzle. Top nozzles are: 18" hinged manway, 6" wide x 18" long nozzle, 14" flanged nozzle, three 3" tri clamp, six 2" tri clamp and one 1" tri clamp. Tank has a spray ball inside. The side scraping agitator is driven by a 5 hp gear reduced drive. 230/460 vac 3 ph electric power required. Tank stands on four legs. Some cosmetic denting to the insulation skin otherwise it appears to be in good shape.

Used Equipment Facts About This Machine
🏭 Manufacturer Information
Manufacturer: Vendome Copper & Brass Works
Type: Jacketed Processor Tank with Scrape Agitation
Capacity: 1,000 Gallons
Material: Stainless Steel

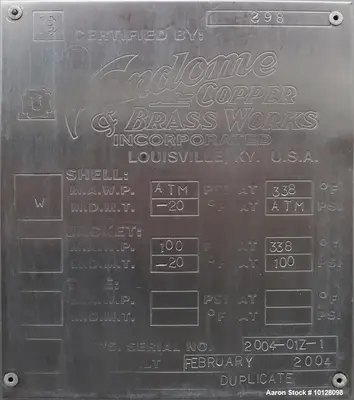

National Board #: 898
Serial #: 2004-01Z-1
Condition: Used (cosmetic denting to insulation skin, otherwise in good condition)
Power Requirements: 230/460V, 3 Phase

📦 Product Description
This Used Vendome 1,000 Gallon Jacketed Processor is built for demanding thermal and mixing applications across food, pharmaceutical, and cosmetic industries. Constructed from stainless steel with a dished bottom and domed top, it includes a side-mounted scrape agitator driven by a 5 HP gear-reduced motor, delivering effective agitation of viscous products.
The dual-zone dimple jacket is rated for 100 PSI at 338°F, offering reliable heat transfer through two separate inlet/outlet ports (2" each per zone). The tank includes comprehensive top access via an 18" hinged manway, multiple tri-clamp and flanged nozzles, and an internal spray ball for CIP cleaning. Though it has minor cosmetic dents on the outer jacket skin, it is structurally sound and ready for sanitary production use.

⚙️ Technical Specifications

Capacity: 1,000 Gallons

Material: Stainless Steel

Top: Domed

Bottom: Dished

Shell Pressure Rating: Atmospheric

Jacket Rating: 100 PSI @ 338°F

Jacket Zones: 2 heating zones

Each with 2" inlet and outlet

Dimensions:

Outside Diameter: 72"

Straight Side Height: 63"

Agitation System:

Side Scrape Agitator

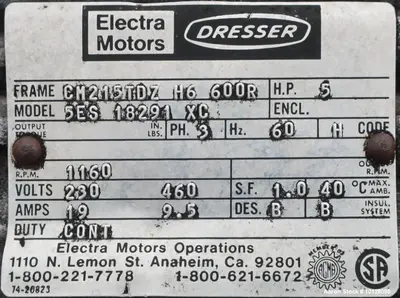

5 HP gear-reduced motor

Power: 230/460 VAC, 3 Phase

Bottom Outlet: 3" Bent Tri-Clamp Nozzle

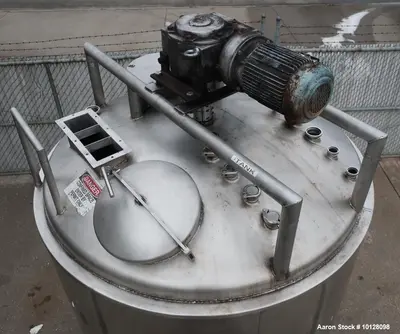

Top Nozzles:

18" Hinged Manway

6" x 18" Rectangular Nozzle

14" Flanged Nozzle

(3) 3" Tri-Clamp Nozzles

(6) 2" Tri-Clamp Nozzles

(1) 1" Tri-Clamp Nozzle

Internal Features: Spray Ball for CIP

Mounting: 4 Stainless Steel Legs

Condition Notes: Cosmetic denting to insulation skin

🔧 Applications
Ideal for sanitary and industrial processing in:

Food & beverage production

Confectionery batching

Dairy and cultured products

Nutraceutical blending

Pharmaceutical paste processing

Cosmetic and personal care mixing

High-viscosity product blending

Ingredient melting and emulsification

Slurry and suspension processing

Batch thermal treatment

📌 What Products Would This Be Used For?

Yogurt, creams, and custards

Sauces, soups, and stews

Cosmetic lotions and gels

Nutraceutical paste and slurries

Confectionery syrups or emulsions

Fruit purées and jams

Plant-based proteins

Ointments and salves

Skincare or pharmaceutical creams

Sugar and starch-based blends
