USED SCOTT TURBON TMS4B-20-10HP

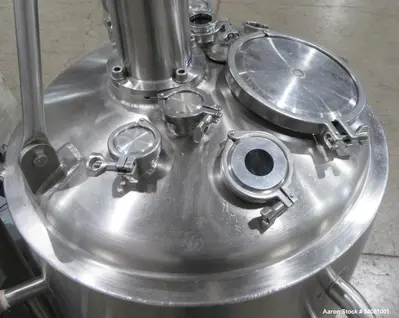

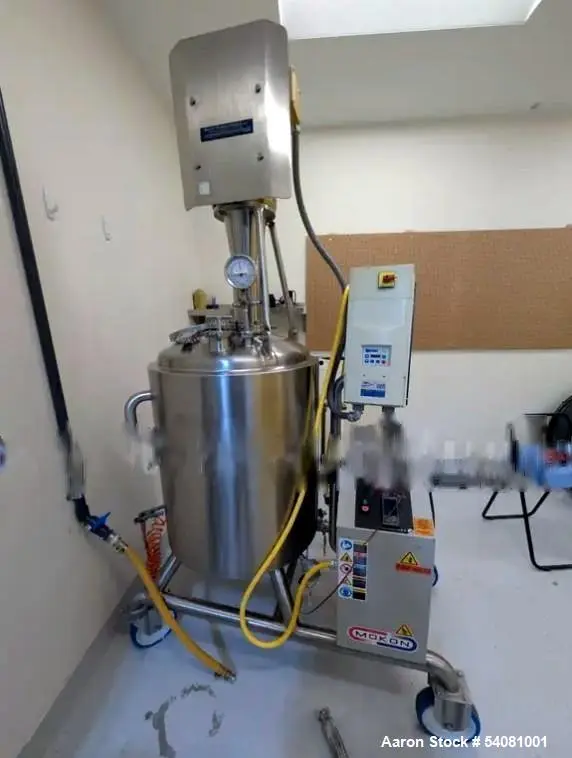

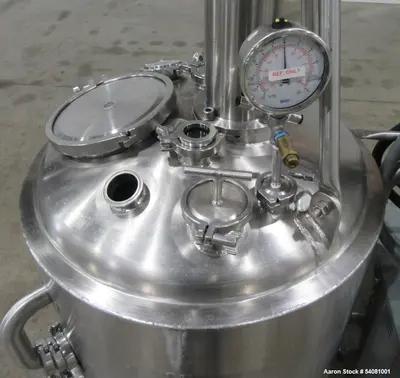

Used Scott Turbon Top Mounted Mixer, Model TMS4B-20-10HP. Stainless steel shaft with a "B" style head. Driven by a 10hp, 3/60/230/460 volt, 1770 rpm motor. Mixer mounted on a 65 gallon stainless steel mixing module, model 65 USG. Approximate 24" diameter x 32" straight side, dished top and dished bottom. Sidewall jacketed and dimple jacketed bottom, no rating. (1) Top entering removable baffle. 2" Center bottom outlet. Lenze AC Tech drive. Mokon model HR4312VS temperature controller. Serial# 13394-1, Built 2016. Mounted on a stainless steel frame with casters. 3/60/230/460 Volt.

Used Equipment Facts About This Machine
🔹 Manufacturer Information

Mixer Manufacturer: Scott Turbon Mixer, Inc.

Mixer Model: TMS4B-20-10HP

Tank Model: 65 USG

Drive: Lenze AC Tech

Temperature Control: Mokon Model HR4312VS

Serial Number: 13394-1

Year Built: 2016

Voltage: 3/60/230/460

🔹 Product Description
This used Scott Turbon TMS4B-20-10HP top-mounted mixer system is a complete stainless steel mixing solution. It features a 10 HP, 1770 RPM motor, driving a stainless steel shaft with a “B” style mixing head, optimized for high-shear mixing applications. The mixer is mounted on a 65-gallon stainless steel mixing module with both sidewall and dimpled bottom jackets for heating or cooling. The setup includes a top-entering removable baffle, 2” center bottom outlet, Lenze AC Tech variable speed drive, and a Mokon HR4312VS temperature controller. All mounted on a stainless steel frame with casters for easy portability.

🔹 Specifications

Mixer Model: TMS4B-20-10HP

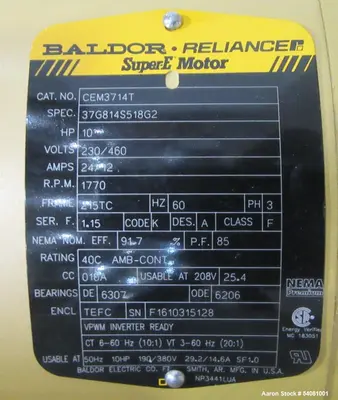

Motor: 10 HP, 3/60/230/460 Volt, 1770 RPM

Mixing Head: “B” Style Head

Shaft: Stainless Steel

Tank Model: 65 USG Stainless Steel

Tank Dimensions: Approx. 24” Diameter x 32” Straight Side

Tank Construction: Dished Top & Bottom

Jacketed: Sidewall and dimple bottom jacketed (no pressure rating)

Baffle: Top Entering, Removable

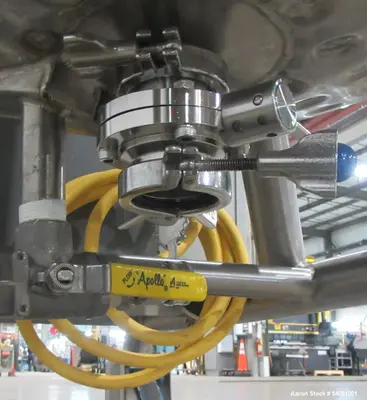

Outlet: 2” Center Bottom

Drive: Lenze AC Tech

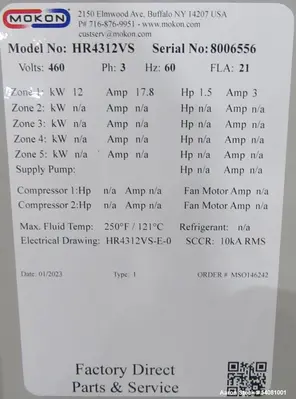

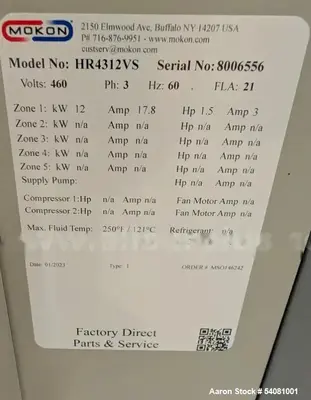

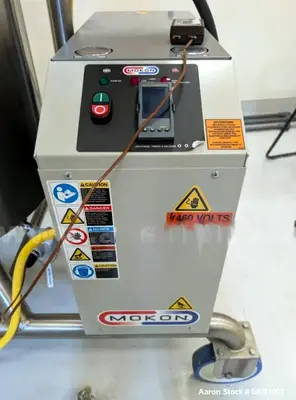

Temp Controller: Mokon HR4312VS

Mounting: Stainless Steel Frame with Casters

Electrical: 3/60/230/460 Volt

Serial Number: 13394-1

Year Built: 2016

🔹 Applications

Pharmaceutical mixing

Food and beverage batch processing

Cosmetics and personal care product blending

Chemical emulsification

Pilot-scale production

Liquid-liquid and liquid-solid mixing

Ingredient dispersion

Heat-sensitive product processing

Sanitary process environments

R&D lab and process development

🔹 Ideal for Mixing:

Creams and lotions

Dressings and sauces

Liquid pharmaceuticals

Shampoos and conditioners

Syrups and extracts

Gel and emulsions

Dispersions and suspensions

Flavorings and fragrances

Cleaning agents

Cosmetic bases
