USED WINKWORTH ZX500-6

🏭 Manufacturer Information
Brand: Winkworth

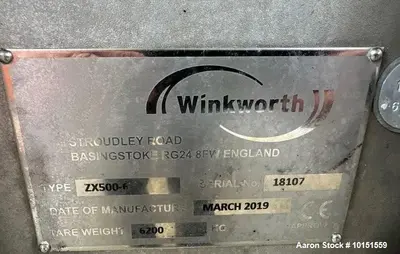

Model: ZX500-6
Type: Z-Blade Mixer/Extruder
Condition: Used
Chamber Material: 304 Stainless Steel

📦 Product Description

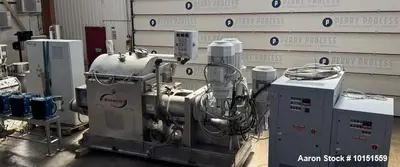

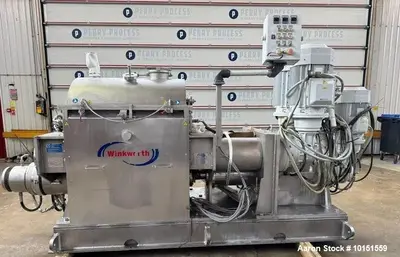

This Used Winkworth ZX500-6 Z-Blade Mixer/Extruder is a robust, high-torque processing system designed for mixing, kneading, and extrusion of highly viscous or cohesive materials. Built with a working capacity of approximately 500 liters and a total volume of 778 liters, the chamber is constructed from 304 stainless steel and measures 1,090mm (L) x 956mm (W) x 735mm (D).

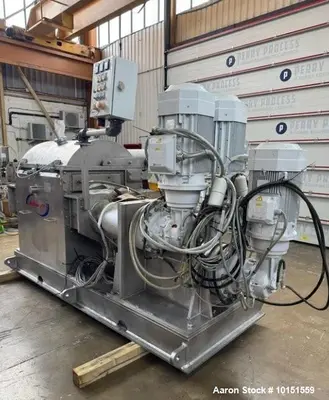

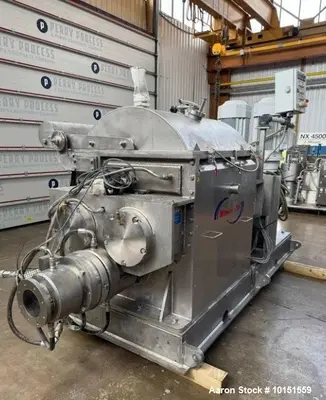

It features a vacuum-rated domed hood, jacketed chamber for thermal regulation, and dual 30 kW Z-blade drives. A stainless steel screw discharge system, powered by a 22 kW motor/gearbox, allows for efficient unloading.

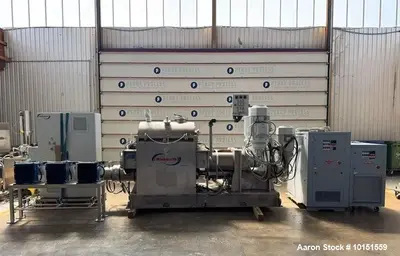

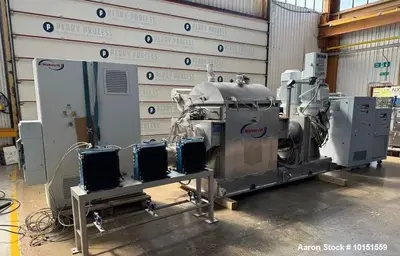

Included with the system are a Tool Temp TT-14500 H and a Tool Temp TT-508 X heating/cooling unit, plus (3) Hydac oil coolers mounted on a shared frame. The system is equipped with a main control panel and local operator interface, offering fully integrated process control.

⚙️ Technical Specifications

Model: ZX500-6

Working Capacity: Approx. 500 liters

Total Capacity: 778 liters (product-dependent)

Chamber Dimensions: 1,090mm (L) x 956mm (W) x 735mm (D)

Material: 304 stainless steel (chamber & jacket)

Jacketed: Yes – 304 SS external jacket for heating/cooling

Hood: Vacuum-rated domed lid

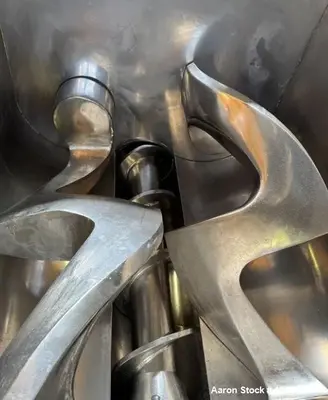

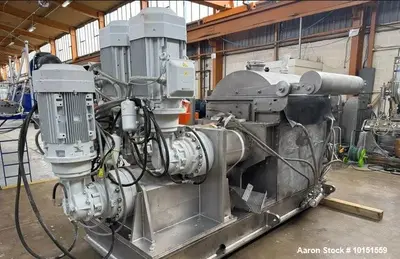

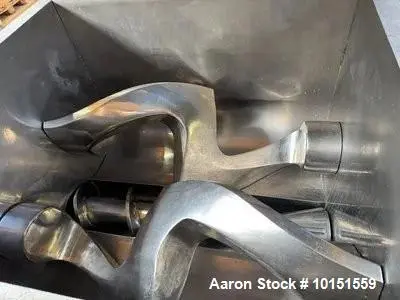

Z-Blade Drive: Dual 30 kW motors with gearboxes

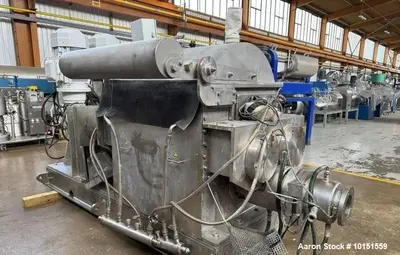

Screw Discharge Drive: 22 kW motor with gearbox

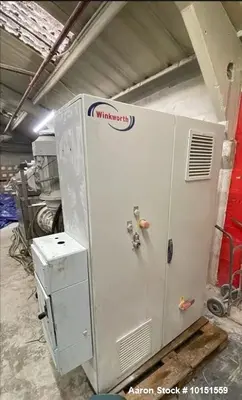

Control System: Main control panel + local operator controls

Heating/Cooling Units Included:

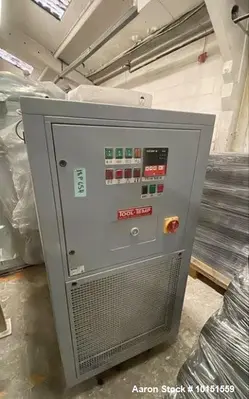

(1) Tool Temp TT-14500 H

(1) Tool Temp TT-508 X

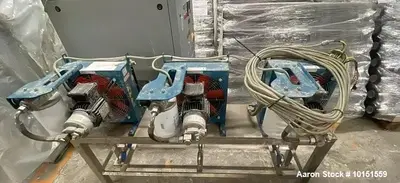

(3) Hydac oil coolers (mounted on common frame)

🔧 Applications
Ideal for high-viscosity, cohesive, or shear-sensitive materials across industries such as:

Rubber and silicone compounding

Adhesives and sealant production

Plasticine and modeling compounds

Battery and conductive pastes

High-solid food products (e.g. doughs, confections)

Resin and epoxy preparation

Pigment and ink formulations

Ceramic and refractory masses

Bitumen-based compounds

Pharmaceutical wet granulation and matrix preps

📌 What Products Would This Be Used For?

Silicone sealants

Battery slurries

Adhesive pastes

Pigmented inks and coatings

Clay-based or ceramic compounds

Hot melt adhesive formulations

Heavy confectionery doughs

Rubber-based matrixes

Composite resin prep materials

Refractory batch materials
