USED WALKER PZ-C3-PV

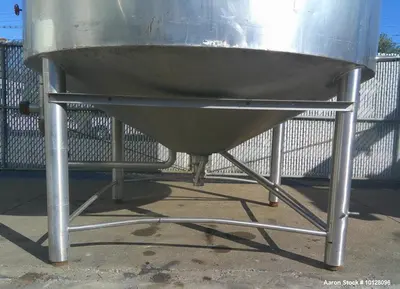

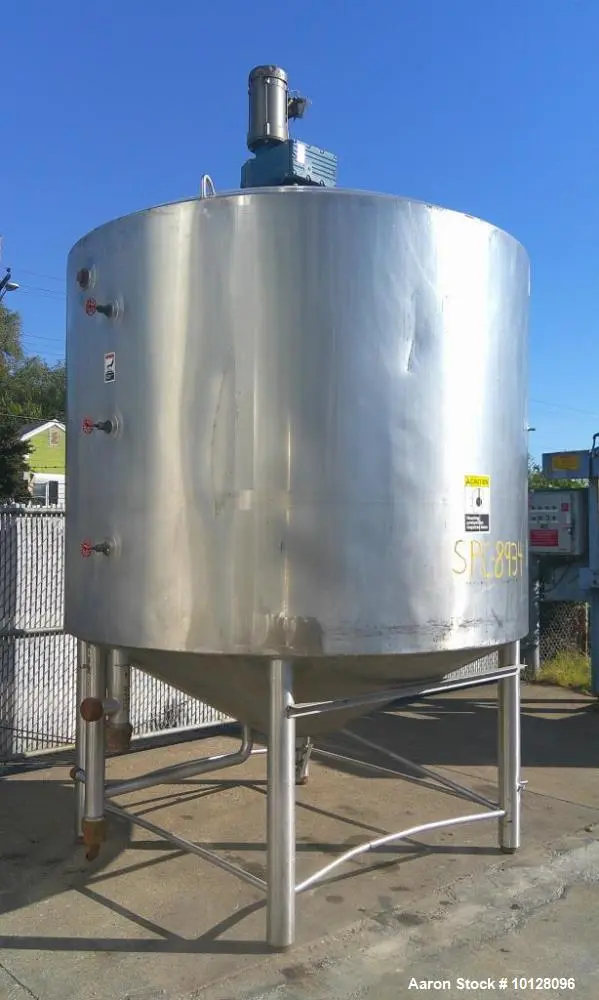

Used Walker 2,000 Gallon Stainless Steel Processor Kettle | Model PZ-C3-PV | Jacketed | 3 HP Scrape Agitator. Dished top, coned bottom. 96" OD x 72" straight side. Vessel is 10 PSIG at 250 degrees F. Jacket heat is 15 PSIG at 250 degrees F. Jacket cool is 100 PSIG at 100 degrees F. Anchor style scrape agitator, driven by a 3hp 3/60/230/460v 1760rpm motor through a reducer. Jacket has three zones with 2" valves. Jacket has 3" condensate with 4" outlet. Bottom has 3" tri clamp outlet. Top has 19" hinged manway with 4" sight glass. Nozzles on top are threaded 6", threaded 3", (2) 3" tri clamp and (2) 2" tri clamp. Serial# 75-7.

Used Equipment Facts About This Machine
🏭 Manufacturer Information
Brand: Walker
Model: PZ-C3-PV
Type: Processor Kettle
Material: 304 Stainless Steel
Serial #: 75-7
Condition: Used

📦 Product Description
This Used Walker 2,000 Gallon Processor Kettle is a robust, industrial-grade mixing and heating vessel designed for food, cosmetic, and pharmaceutical applications. Constructed from 304 stainless steel, it features a dished top and coned bottom for complete drainage and efficient agitation.
Equipped with a 3 HP anchor-style scrape agitator driven by a 1760 RPM motor via reducer, it ensures consistent product movement and optimized heat transfer. The three-zone jacket allows for precise thermal control, capable of both heating at 15 PSIG @ 250°F and cooling at 100 PSIG @ 100°F.
The kettle includes a 19" hinged manway with 4" sight glass, multiple tri-clamp and threaded ports, and a 3" bottom tri-clamp outlet for sanitary discharge.

⚙️ Technical Specifications

Capacity: 2,000 Gallons

Material: 304 Stainless Steel

Top: Dished

Bottom: Coned

Dimensions: 96" Outside Diameter x 72" Straight Side

Vessel Pressure: 10 PSIG @ 250°F

Jacket Specs:

3 Zones with 2" valves

Heating: 15 PSIG @ 250°F

Cooling: 100 PSIG @ 100°F

3" condensate return, 4" outlet

Agitation System:

Anchor-style scrape agitator

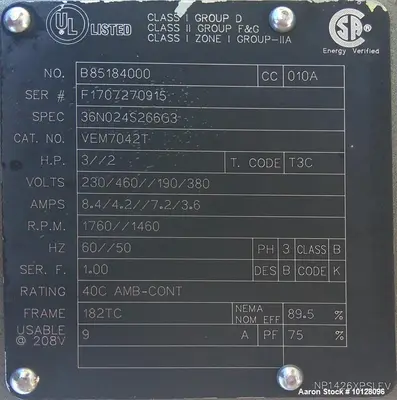

3 HP motor, 3 Phase, 60 Hz, 230/460V, 1760 RPM

Gear reducer drive

Outlet: 3" Tri-Clamp Bottom Outlet

Top Access:

19" Hinged Manway with 4" Sight Glass

(1) 6" Threaded Nozzle

(1) 3" Threaded Nozzle

(2) 3" Tri-Clamp Ports

(2) 2" Tri-Clamp Ports

🔧 Applications
Ideal for processing in:

Food & beverage production

Dairy and cheese batching

Soup, sauce, and puree manufacturing

Cosmetic and personal care mixing

Pharmaceutical blending

Nutraceutical or supplement formulations

Thermal treatment of viscous slurries

Emulsion and cream production

Ingredient pre-mixing

Flavor or extract processing

📌 What Products Would This Be Used For?

Yogurt, cheese sauce, and dairy bases

Cream-based soups or broths

Custards, puddings, or gels

Sauces, gravies, and marinades

Pharmaceutical creams and lotions

Nutritional and protein supplements

Skincare emulsions or hair products

Honey, syrups, or flavorings

Fruit and vegetable purees

Ointments and pharmaceutical pastes
