USED GROEN INA-250

🏭 Manufacturer Information
Brand: Groen
Model: INA-250
Type: Inclined Agitated Kettle
Material: 316 Stainless Steel (Product Contact)
Mounting: 4 Carbon Steel Legs

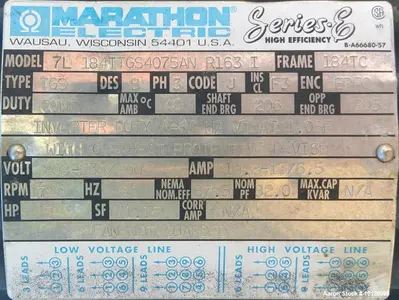

Agitator Motor: 5 HP, 3 Phase, 60 Hz, 208-230/460V, 1740 RPM
National Board #: 104598
Serial #: 104598
Condition: Used

📦 Product Description

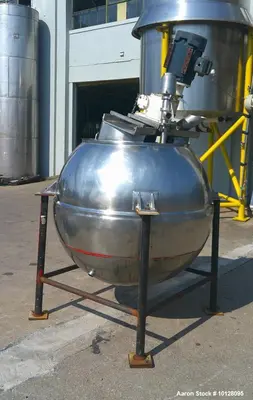

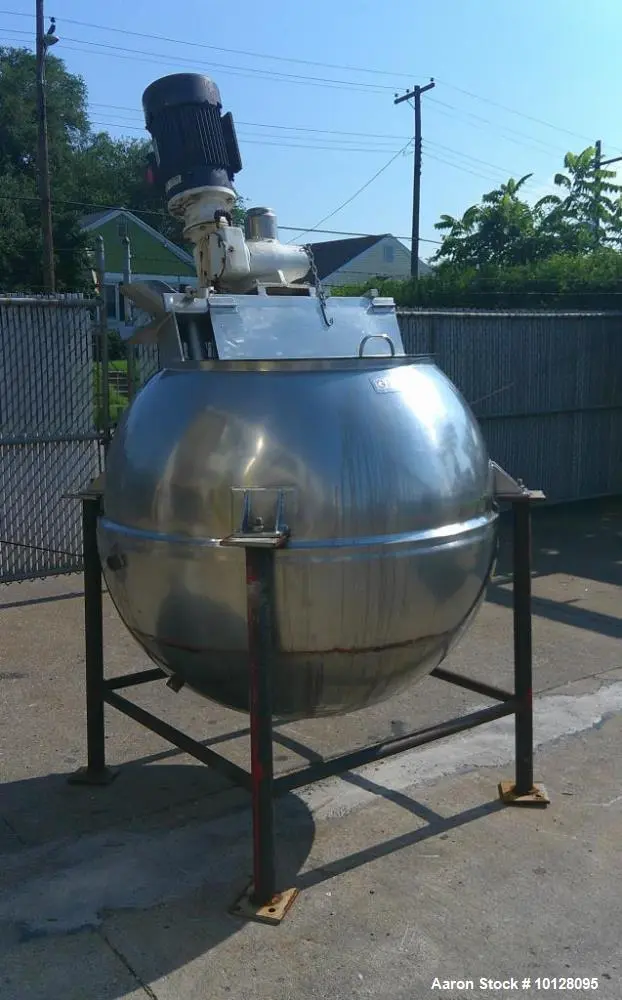

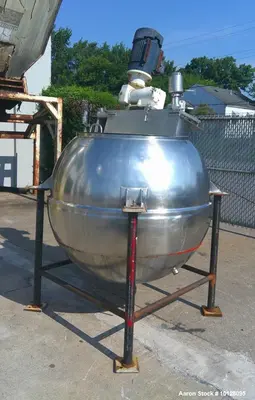

This Used Groen Model INA-250 Inclined Agitated Kettle is a 250-gallon vertical processing vessel ideal for heating, cooking, mixing, and blending applications across food, pharma, and cosmetic industries. Constructed from 316 stainless steel, it features an inclined body design that enhances product movement and improves discharge.
The kettle includes a full steam jacket with dual pressure zones: the upper jacket is rated at 40 PSI, and the lower jacket at 100 PSI (up to 338°F) for high-efficiency heat transfer. A 5 HP agitator motor ensures uniform mixing of viscous and particulate products. The kettle is mounted on 4 carbon steel legs for stable floor installation.

⚙️ Technical Specifications

Model: INA-250

Capacity: 250 gallons

Orientation: Vertical, Inclined

Construction: 316 Stainless Steel

Jacket Type: Full jacket

Upper Jacket Rating: 40 PSI

Lower Jacket Rating: 100 PSI @ 338°F

Dimensions:

Middle Diameter: 54"

Depth: 45"

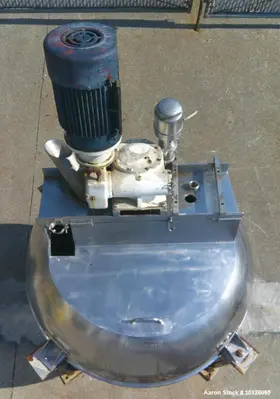

Agitator Motor:

Power: 5 HP

Voltage: 3/60/208-230/460V

Speed: 1740 RPM

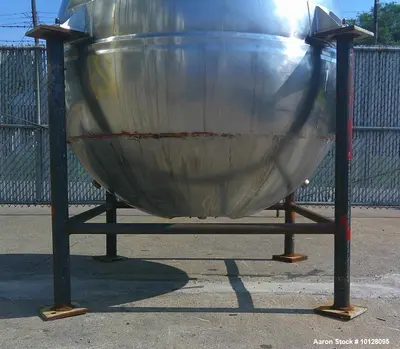

Mounting: 4 Carbon Steel Legs

National Board #: 104598

Serial #: 104598

🔧 Applications
Ideal for mixing, heating, and processing in:

Food and beverage production

Confectionery and candy making

Dairy and cheese processing

Sauces, soups, and gravies

Cosmetics and personal care

Pharmaceutical blending

Nutraceutical formulations

Pasteurized product handling

Slurry or suspension processing

Industrial chemical batching

📌 What Products Would This Be Used For?

Cheese sauces and gravies

Puddings, creams, and custards

Fruit fillings or purees

Soups, stews, and broths

Syrups and sweeteners

Ointments and creams

Gels, lotions, and emulsions

Nutraceutical pastes

Confectionery bases

Slurries and thick liquids
