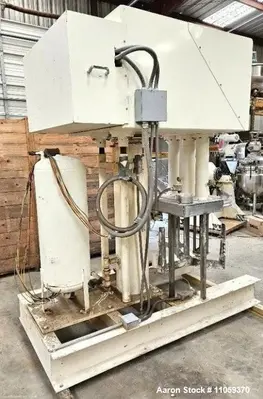

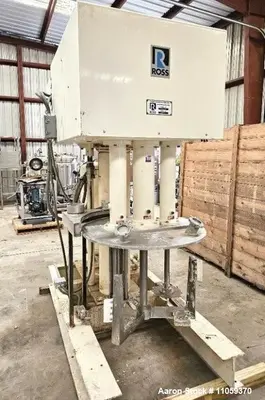

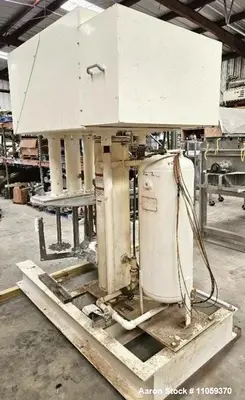

USED ROSS INDUSTRIES PVM-100

🏭 Manufacturer Information

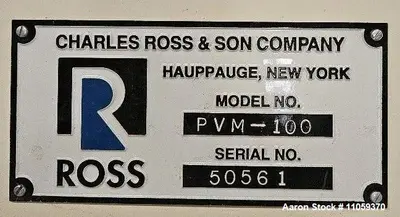

Brand: Charles Ross & Son Company
Model: PVM-100
Type: Triple Motion Vacuum Mixer
Condition: Used

📦 Product Description
This Used Ross Model PVM-100 Triple Motion Vacuum Mixer is a versatile and powerful 100-gallon capacity stainless steel mixing system engineered for demanding batch processes involving viscous materials, emulsions, and fine dispersions.
The unit features a jacketed stainless steel change can suitable for heating/cooling, and is vacuum-rated for air-sensitive or degassing applications. Its triple mixing action includes:

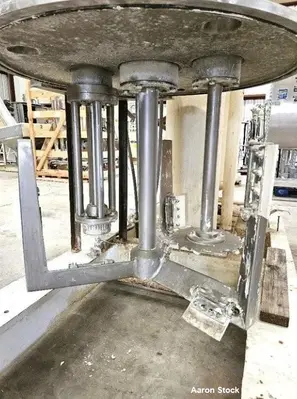

A three-wing anchor agitator with side and bottom scrapers (10 HP)

A high-speed disperser (10 HP)

A high-shear rotor-stator emulsifier (25 HP)
All components are mounted on a hydraulic lift system for easy access to the change can. Comes complete with control panel for operational control and parameter monitoring.

⚙️ Technical Specifications

Model: PVM-100

Capacity: 100 Gallons

Tank Type: Stainless steel jacketed change can

Vacuum Rated: Yes

Mixing Action:

(1) Three-wing anchor agitator with side/bottom scrapers – 10 HP

(1) High-speed disperser – 10 HP

(1) High shear rotor-stator emulsifier – 25 HP

Hydraulic Lift: Included

Control Panel: Included

Construction: All stainless steel

Drive Motors Total: 45 HP combined

🔧 Applications
This multi-function mixer is ideal for use in:

Pharmaceutical and nutraceutical blending

Cosmetic creams and emulsions

Food-grade sauces and dressings

Chemical compounding

Paints and pigments

Adhesives and sealants

Toothpaste and gels

High-viscosity homogenization

Degassing/deaerating thick mixtures

Pilot or small production batches

📌 What Products Would This Be Used For?

Cosmetic lotions and face creams

Pharmaceutical ointments

Nutraceutical gel capsules

Food sauces and emulsified dressings

Toothpaste and oral gels

Industrial sealants and adhesives

Hair products like conditioners or pomades

Silicone and polymer dispersions

Paints and pigmented slurries

Deaerated viscous emulsions
