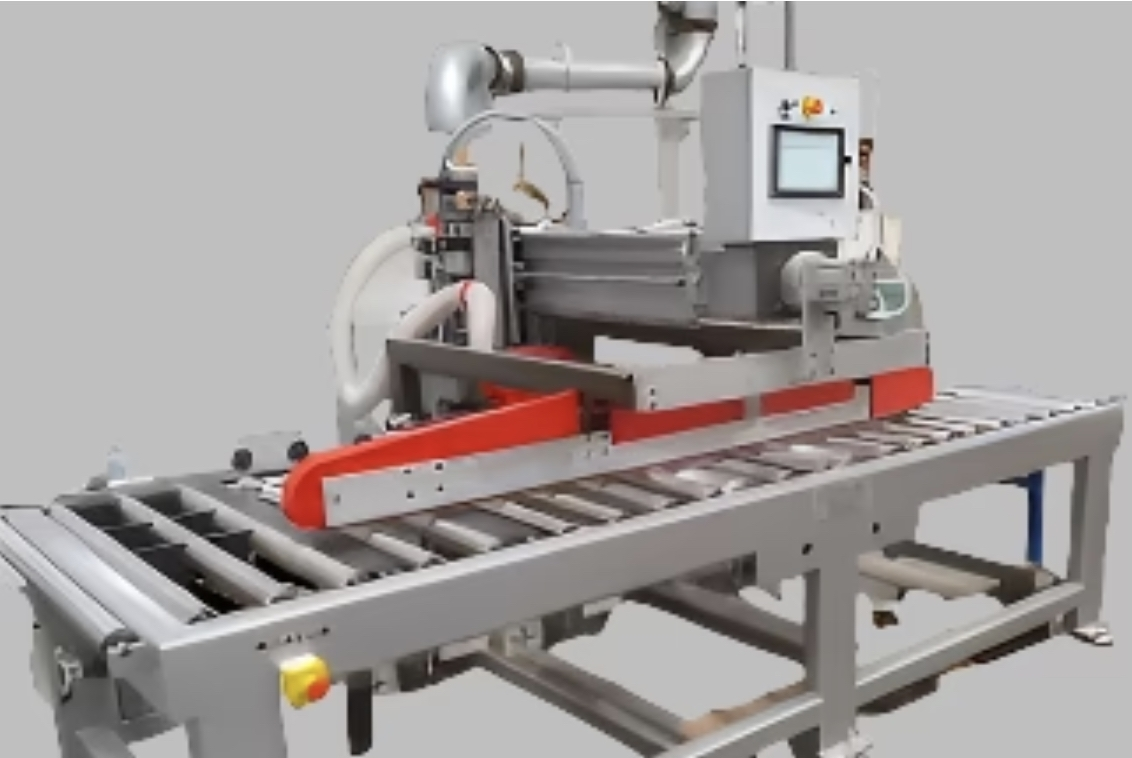

NEW MACHINERY SLG-1000

Overview

The Star V SLG-1000 is designed with one cutting station and one tape station.

With the push of one button via a Servo system to control the position of the cutting head, tape applicator and the feed height, there is virtually no down time to the in the production schedule. With the ability to make numerous profile changes throughout the day, saving and recalling recipe files for over 1000+ jobs stored locally on the screen, making this an ideal choice for a variety of fabricators.

Creating a V-fold edge, instead of building up the front edge, or a cove back splash profile, the v-groove is being applied from above, simultaneously taping from below, with the workpiece moving thought the machine automatically

Features of SLG-1000
Narrowest Board: V-groove center from fence + 3.5”
Widest/Longest Board: Unlimited
Shortest Board: 20”
Thickness Capacity: 1/4” to 1-13/16”
Cut Distance from Fence: 15” standard, options available 25”, 30”, 36”, and 40” upon request
Spindle Motor (1): 10 HP, 3 Ph, 3,600 RPM
Cutter Spindle: 30mm x 72mm, with clamping 8mm keyway
Cutter Max. Diameter: 9-1/4”
Cutter Depth Adjustment: Hand wheel on linear bearings and rails, ACME nut and rod, position on digital indicator
Cuter Side Movement: Servo on linear bearings and rails, ball screw and nut, positioning via 10” touchscreen
Tape Applicator (1): Servo positioning and feed back on 10” touchscreen, automatic application
Roll Bed: 15” stainless steel rollers
Reference Rolls: Solid aluminum on cutting area
Material Feed: Double belt with variable DC motor, 0 to 50 FPM
Both linear as well as cross cuts up to 15” away from the fixed fence are possible
Construction: Tubular welded frame
Machine Dimensions (LxWxH): 132” x 63” x 72”

Service Connection Requirements
Voltage: 230V 3Ph
Air: 60 PSI
Dust Port: 6” requiring 785 CFM

Warranty
2 Year Warranty
Star V Machinery Customer Satisfaction Guarantee
