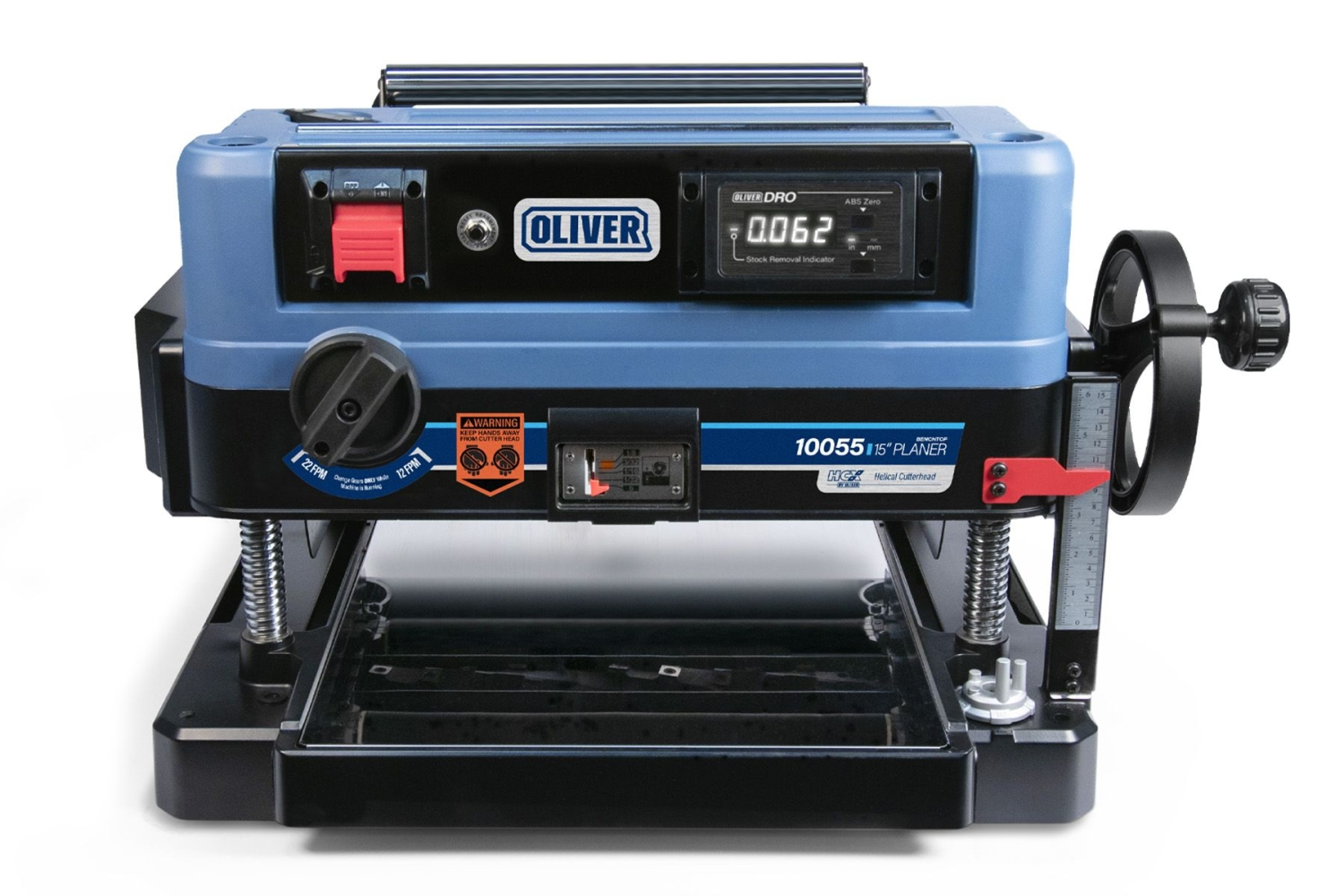

NEW OLIVER 10055

CutterHead Oliver HCX Helical
Ph 1Ph
Stock Number 10055.201
Maximum Stock Width 15"
Maximum Depth of Cut Material under 6.5” width 1/8"
Material over 6.5” width 3/64"
Maximum Stock Thickness 6"
Minimum Stock Thickness 1/8"
Minimum Stock Length 8"
Dust Port Diameter 4" (reversible for left or right exit)
Minimum CFM Required 600cfm
Feed Speeds 12 FPM or 20 FPM
Table Size 15" x 23"
Table Size w/Extension Wings 15" x 48"
Cutterhead Speed 5,600 rpm
Number of Knives (helical) 40
Footprint 28" x 23"
Footprint - with Table 28" x 48"
Motor 1Ph 2.5HP - 230V, 1Ph, 12A (NEMA 6-15 plug style, 7ft cord)
Overall Dimensions 28" W x 23" D x 16" H (with extensions folded)
29" W x 27" D x 20" H (shipping crate)
Net Weight 158.7lbs
Gross Weight 172lbs
