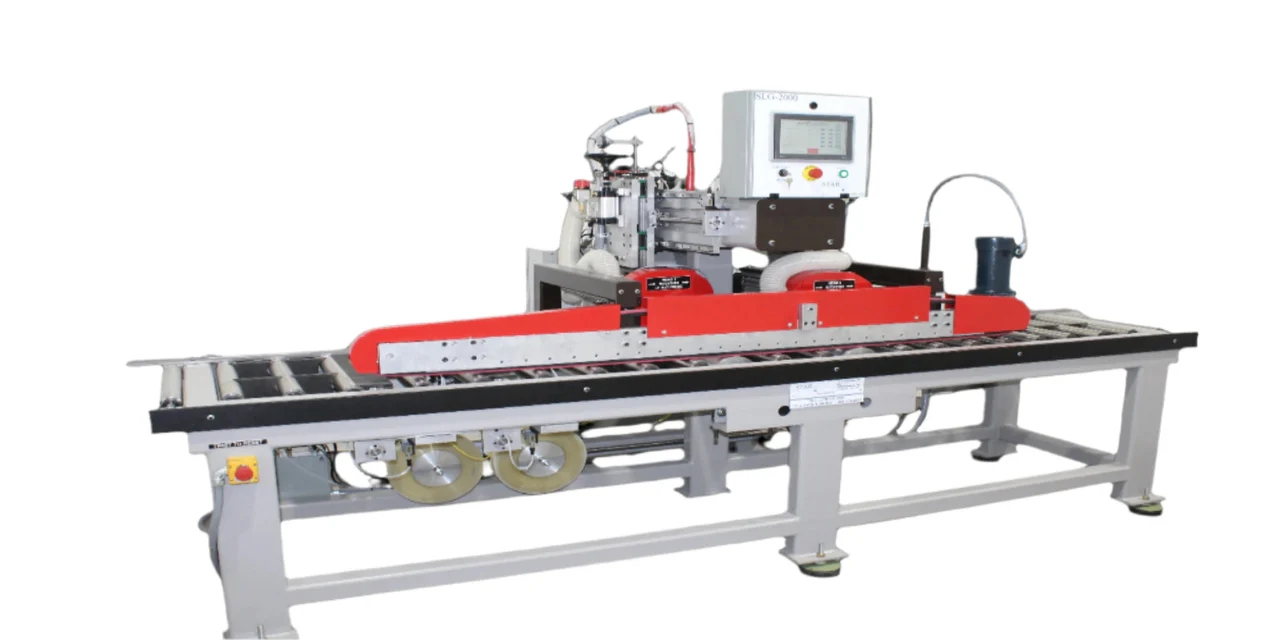

NEW MACHINERY SLG-2000

Overview

V-Folding machine designed to create a build-up front edge, cove back splash profile, scribe strip, triple fold profiles, dado for back panel, double edge shelving etc.

This machine comes standard with all available options for enhanced operator convenience and performance. Other v-groove angles besides the standard 90 degrees can easily be employed. The tape, which acts as the hinge for miter folding, is applied automatically and cut to length. The feeder belt moves the material over the high-precision, stainless steel roller bed to minimize friction and reduce or eliminate marring of the material. The v-groove is being applied from above. Motorized set-up features and other gadgets add to the operator convenience for this machine.

Features of SLG-2000
Narrowest Board: V-groove center from fence + 3.5”
Widest/Longest Board: Unlimited
Shortest Board: 20”
Thickness Capacity: 1/4” to 1-13/16”
Cut Distance from Fence: 15” standard, options available 25”, 30”, 36”, and 40” upon request
Spindle Motors (2): 10 HP, 3 Ph, 3,600 RPM
Cutter Spindle: 30mm x 72mm, with clamping 8mm keyway
Cutter Max. Diameter: 9-1/4”
Cutter Depth Adjustment: Hand wheel on linear bearings and rails, ACME nut and rod, position on digital indicator
Cuter Side Movement: Servo on linear bearings and rails, ball screw and nut, positioning via 10” touchscreen
Tape Applicators (2): Servo positioning and feed back on 10” touchscreen, automatic application
Roll Bed: 15” stainless steel rollers
Reference Rolls: Solid aluminum on cutting area
Material Feed: Double belt with variable DC motor, 0 to 50 FPM
Both linear as well as cross cuts up to 15” away from the fixed fence are possible
Construction: Tubular welded frame
Machine Dimensions (LxWxH): 138” x 63” x 72”

Service Connection Requirements
Voltage: 230V 3Ph
Air: 100 PSI
Dust Port: 6”

Warranty
2 Year Warranty
Star V Machinery Customer Satisfaction Guarantee
